Sony ZS-D5 Service Manual

— 66 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

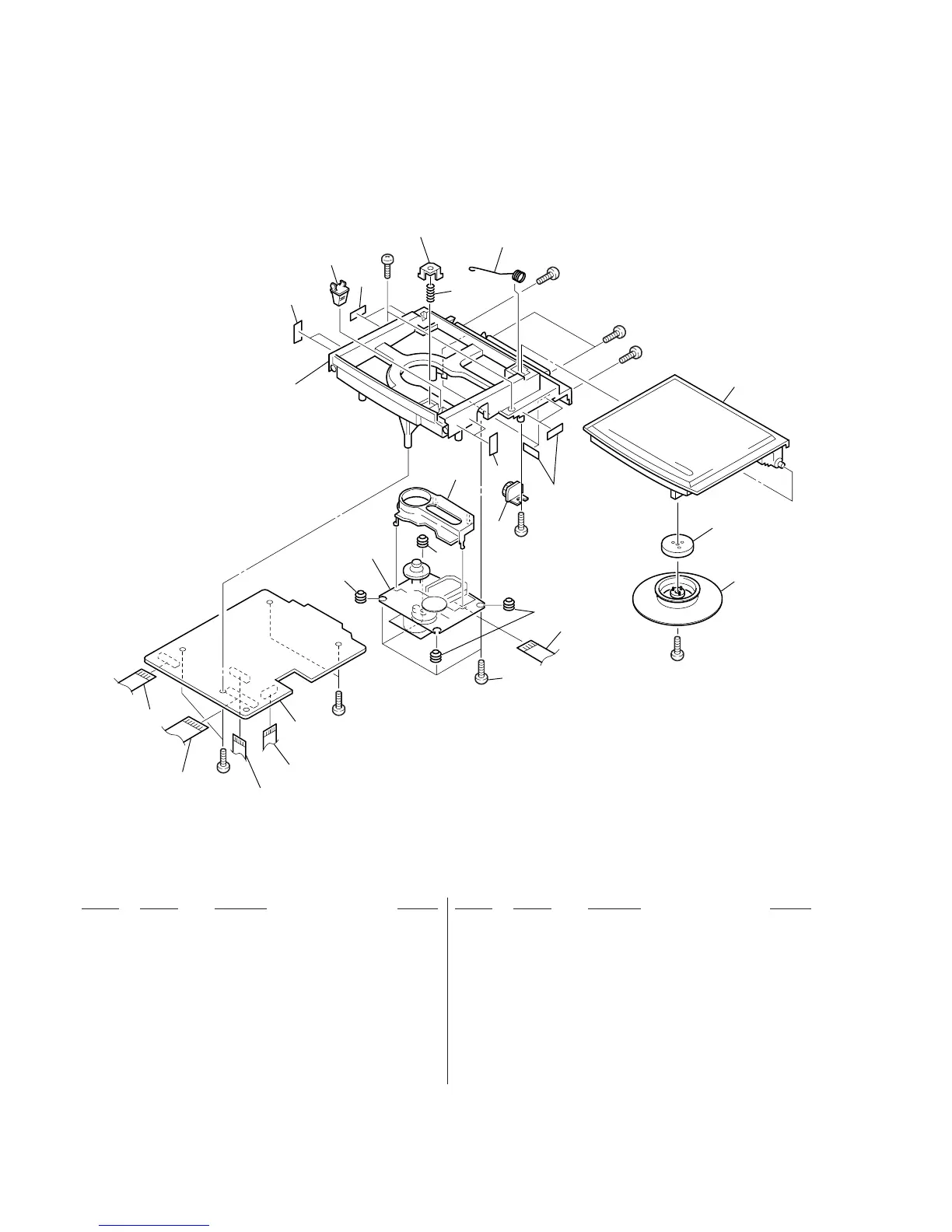

8-3. CD MECHANISM SECTION (KSM-213CDM/M-S)
* 100 A-3293-850-A MAIN BOARD, COMPLETE (US,CND)
* 100 A-3293-877-A MAIN BOARD, COMPLETE (AEP,IT,UK,E)
101 3-938-884-01 SPRING, CD COIL
102 3-017-878-01 SLIDER, PUSH
103 1-692-960-11 SWITCH, PUSH (1 KEY)
104 3-017-450-01 SPRING, CD OPEN
105 3-017-472-11 LID, CD
106 1-452-732-11 MAGNET
107 3-016-397-01 PLATE (KSM-213-CDM), CHUCKING
108 3-911-135-01 SCREW (2.6X10), (+PWH) TAPPING
109 3-351-377-11 GEAR, DAMPER
110 3-931-379-21 RUBBER, VIBRATION PROOF
111 3-931-379-31 RUBBER, VIBRATION PROOF
112 3-910-116-01 COVER, CD
113 1-782-629-11 WIRE, PARALLEL (FFC) (14 CORE)
114 1-782-630-11 WIRE, PARALLEL (FFC) (13 CORE)
115 1-782-627-11 WIRE, PARALLEL (FFC) (27 CORE)
116 1-782-628-11 WIRE, PARALLEL (FFC) (20 CORE)
117 1-782-631-11 WIRE, PARALLEL (FFC) (16 CORE)
118 3-831-441-99 CUSHION, SPEAKER
102
101
104
103
118
118
118
118
109
108
117
106
105
107
111
111
100
114
113
115
116
110
KSM-213
CDM
#1
#1
#1
#1
#1
#1
#7
not supplied
112
#1
