CN7
10 D13 SPI_A_SCK PA5 SPI1_SCK
Arduino
compatible
12 D12 SPI_A_MISO PA6 SPI1_MISO
14 D11
SPI_A_MOSI/
TIM_E_PWM1
PA7
(1) (2)
or
PB5
(1)
SPI1_MOSI/
TIM14_CH1
16 D10
SPI_A_CS/
TIM_B_PWM3
PD14
SPI1_CS/
TIM4_CH3
18 D9 TIMER_B_PWM2 PD15 TIM4_CH4
20 D8 I/O PF12 -
CN10
1 AVDD AVDD - Analog VDD
-
3 AGND AGND - Analog Ground
5 GND GND - Ground
7 A6 ADC_A_IN PB1 ADC12_IN5
9 A7 ADC_B_IN PC2 ADC123_IN12
11 A8 ADC_C_IN PF4 ADC3_IN9
13 D26 QSPI_CS PB6 QSPI_BK1
15 D27 QSPI_CLK PB2 QSPI_CLK
17 GND GND - Ground
19 D28 QSPI_BK1_IO3 PD13
QSPI_BK1
21 D29 QSPI_BK1_IO1 PD12
23 D30 QSPI_BK1_IO0 PD11
25 D31 QSPI_BK1_IO2 PE2
(3)
27 GND GND - Ground
29 D32 TIMER_C_PWM1 PA0 TIM2_CH1
31 D33 TIMER_D_PWM1 PB0 TIM3_CH3
33 D34 TIMER_B_ETR PE0 TIM4_ETR
2 D7 I/O PF13 -
Arduino
compatible
4 D6 TIMER_A_PWM1 PE9 TIM1_CH1
6 D5 TIMER_A_PWM2 PE11 TIM1_CH2
8 D4 I/O PF14 -
10 D3 TIMER_A_PWM3 PE13 TIM1_CH3
12 D2 I/O PF15 -
14 D1 USART_A_TX PG14
USART6
16 D0 USART_A_RX PG9
18 D42 TIMER_A_PWM1N PE8 TIM1_CH1N
-
20 D41 TIMER_A_ETR PE7 TIM1_ETR

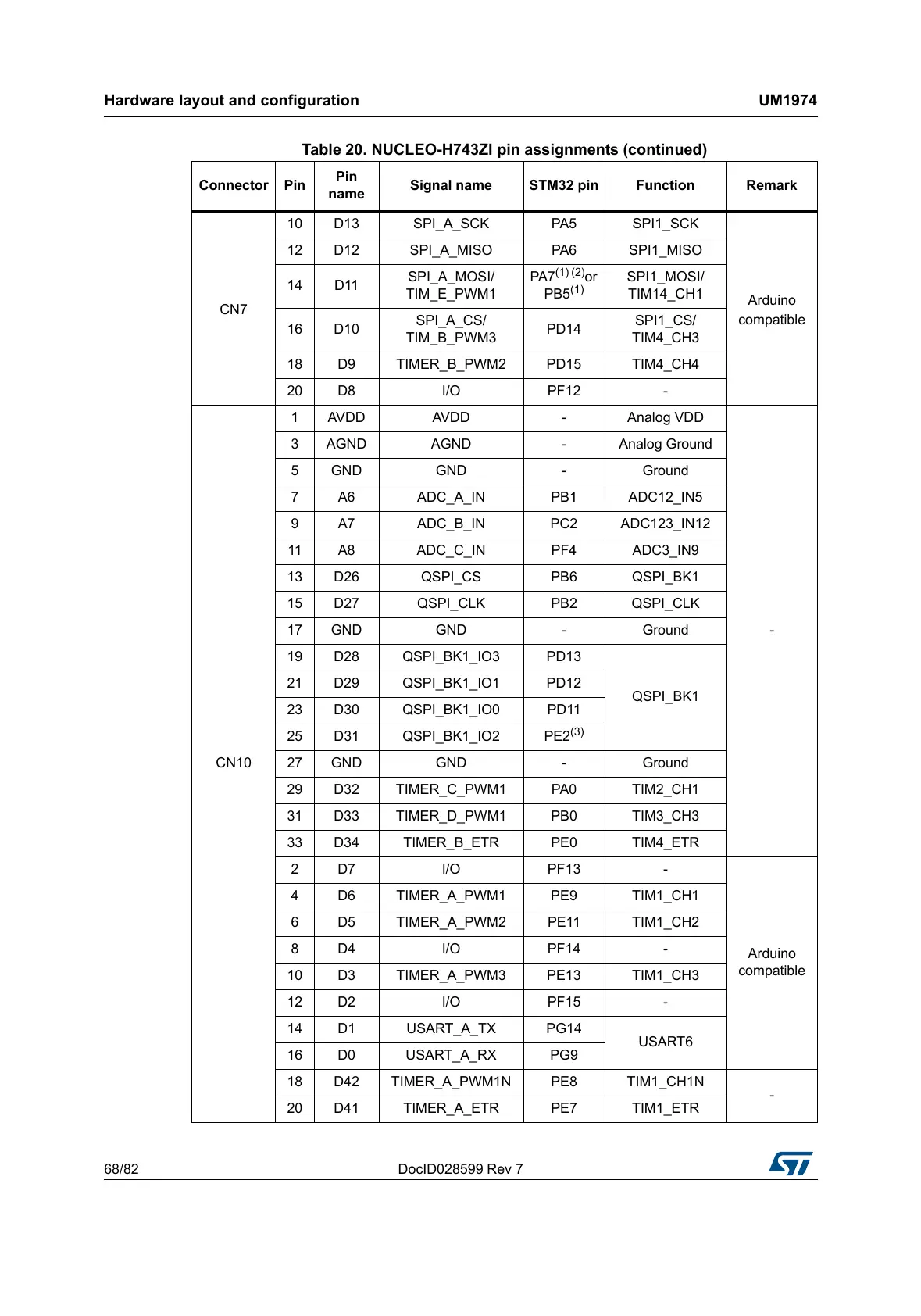

Table 20. NUCLEO-H743ZI pin assignments (continued)
