4.1 General appearance
4.1.1 Tempra Trend
1
2
3
4
1 Display
2 T
max
button
3 Power status LED
4 Control knob

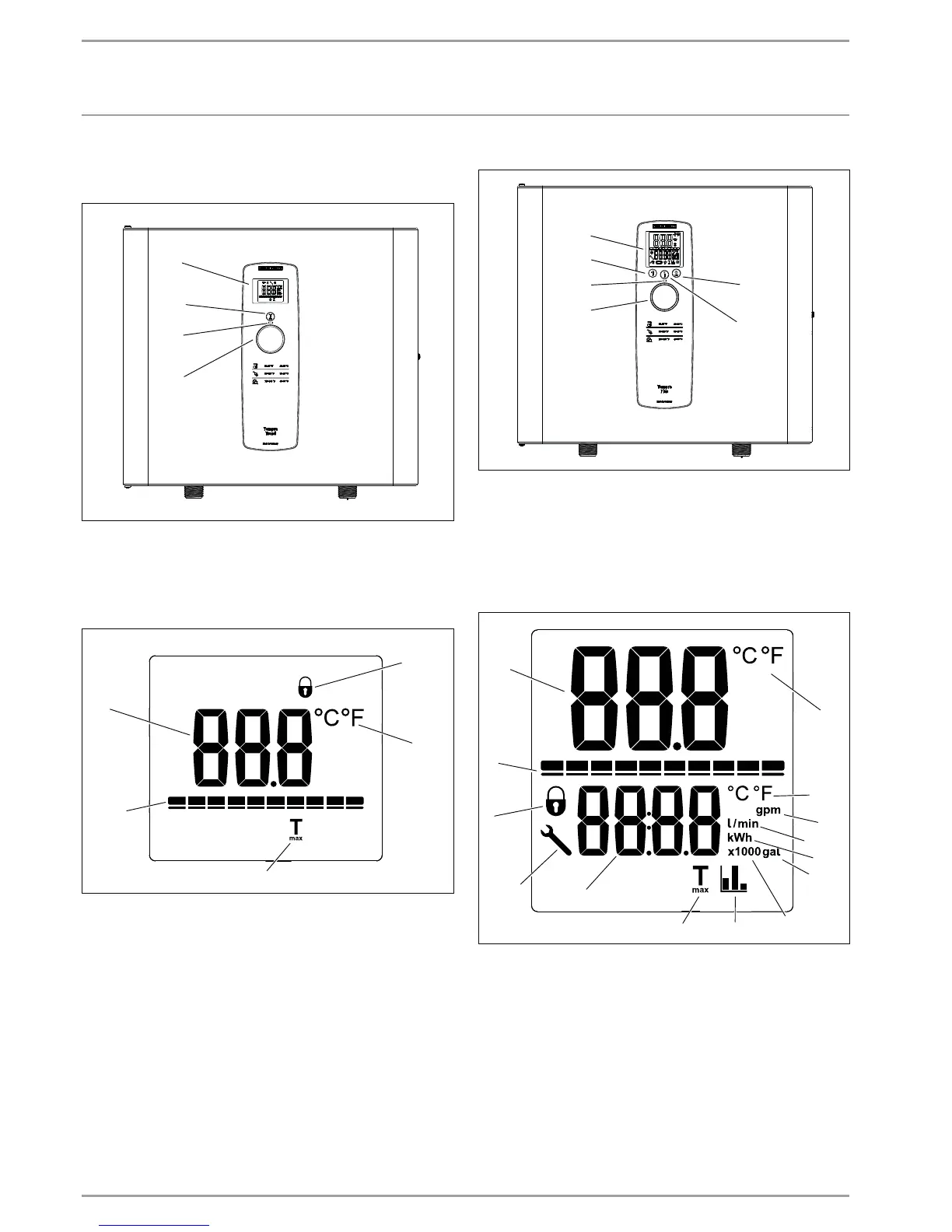

Tempra Trend display overview
5
6
7
8
9
5 Digit display
6 Power capacity status
7 T
max
indicator
8 Temperature unit indicator
9 Display-lock indicator
4.1.2 Tempra Plus
1
2
3
4
5
6
1 Display
2 Preset 1
3 Power status LED
4 Control knob
5 Menu button
6 Preset 2
Tempra Plus display overview
7
8
9
10
12 13
14
15
16
17
18
19
20
11
7 Primary digit display
8 Power capacity status
9 Display-lock indicator
10 Error code symbol
11 Secondary digit display
12 T
max
indicator
13 Savings statistics indicator
14 x1000 secondary display value
15 Gallons secondary display unit
16 kWh secondary display unit
17 Liters & liters per minute secondary display unit
18 Gallons per minute secondary display unit
19 Temperature unit for secondary display
20 Temperature unit for primary display
OPERATION
GENERAL
