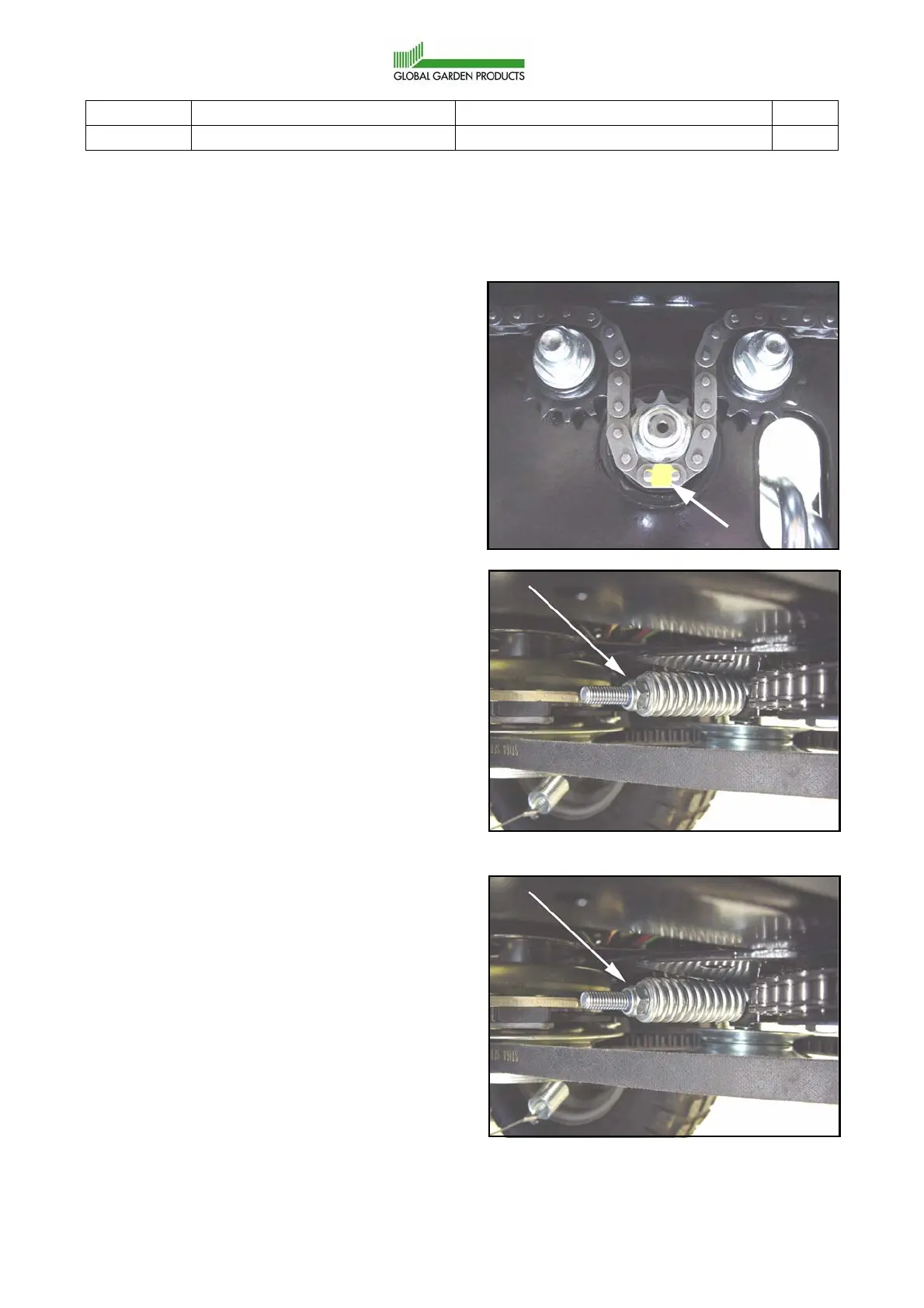

2014-03-31 Workshop Manual, GGP Park 3 Steering 4
3.2 Steering wires
3.2.1 Assembly
1. Measure up the middle link (mark A) on the
new chain and mark it.
2. Place the chain on the chain sprockets.
Make sure that the wheel is straight and that
the marked middle link is placed on the mid-
dle of the chain sprocket.
3. Place the wire in the pulley and tighten the
screws to the wire retainers..
4. Fit the washer and nut on the threaded rear
ends of the steering wire..
