Stiga Park COMPACT 14 2008 User Manual

Edition Manual Chapter Page
2014-09-20 Workshop Manual, GGP Park 4 Hydraulic system 9
4.4.2 Functional description
Driving
The oil flows when driving forwards respectively backwards are showh in the diagrams
below.

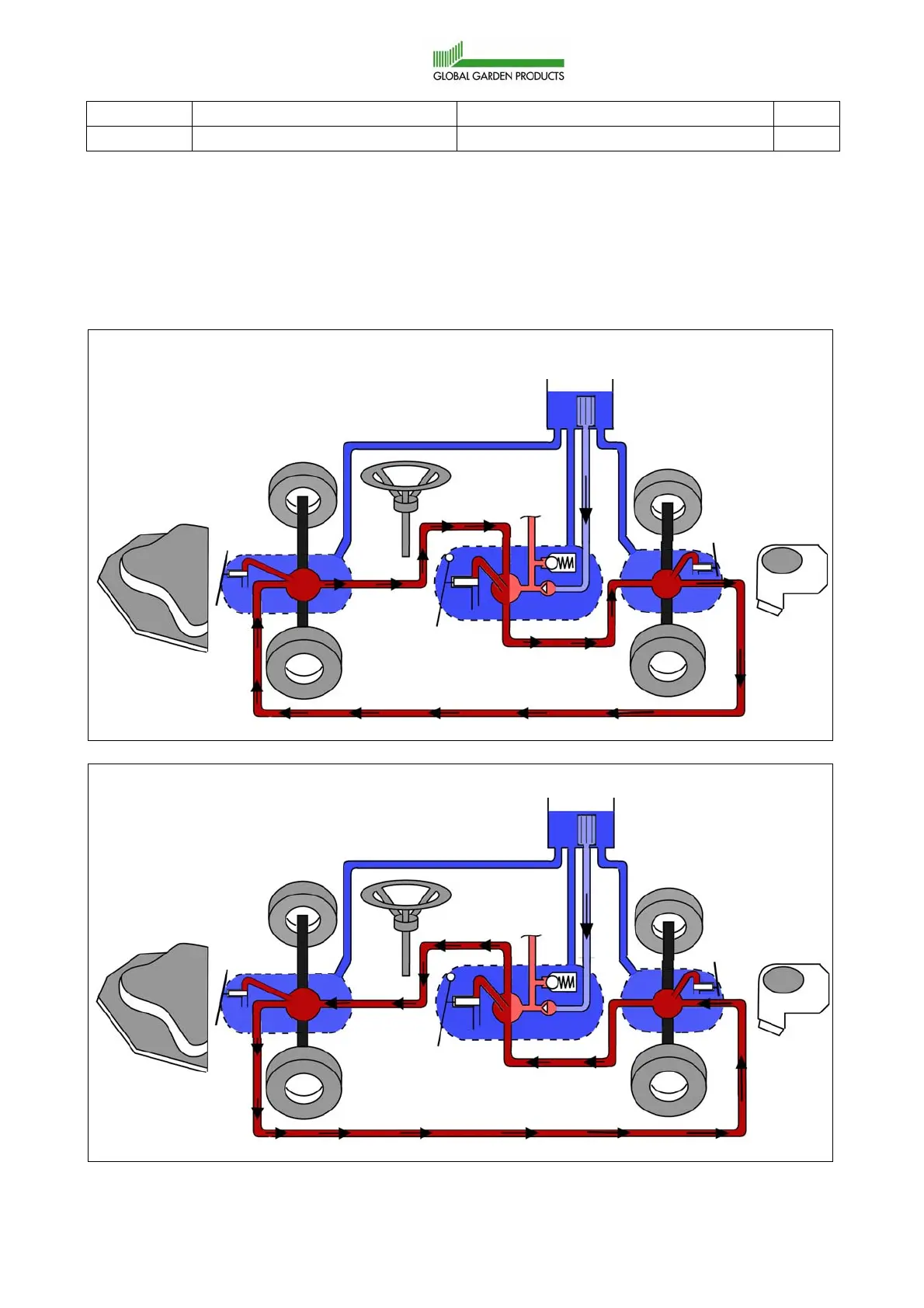

Driving forward - Separate pump
Driving backward - Separate pump
9
2
3
5
9
7
1
2
3
5
4
6
8
A
B
C
11
11
11
12
12
9
7
1
2
3
5
4
6
8
A
B
C
11
11
11
12
12
13
13
13
13
