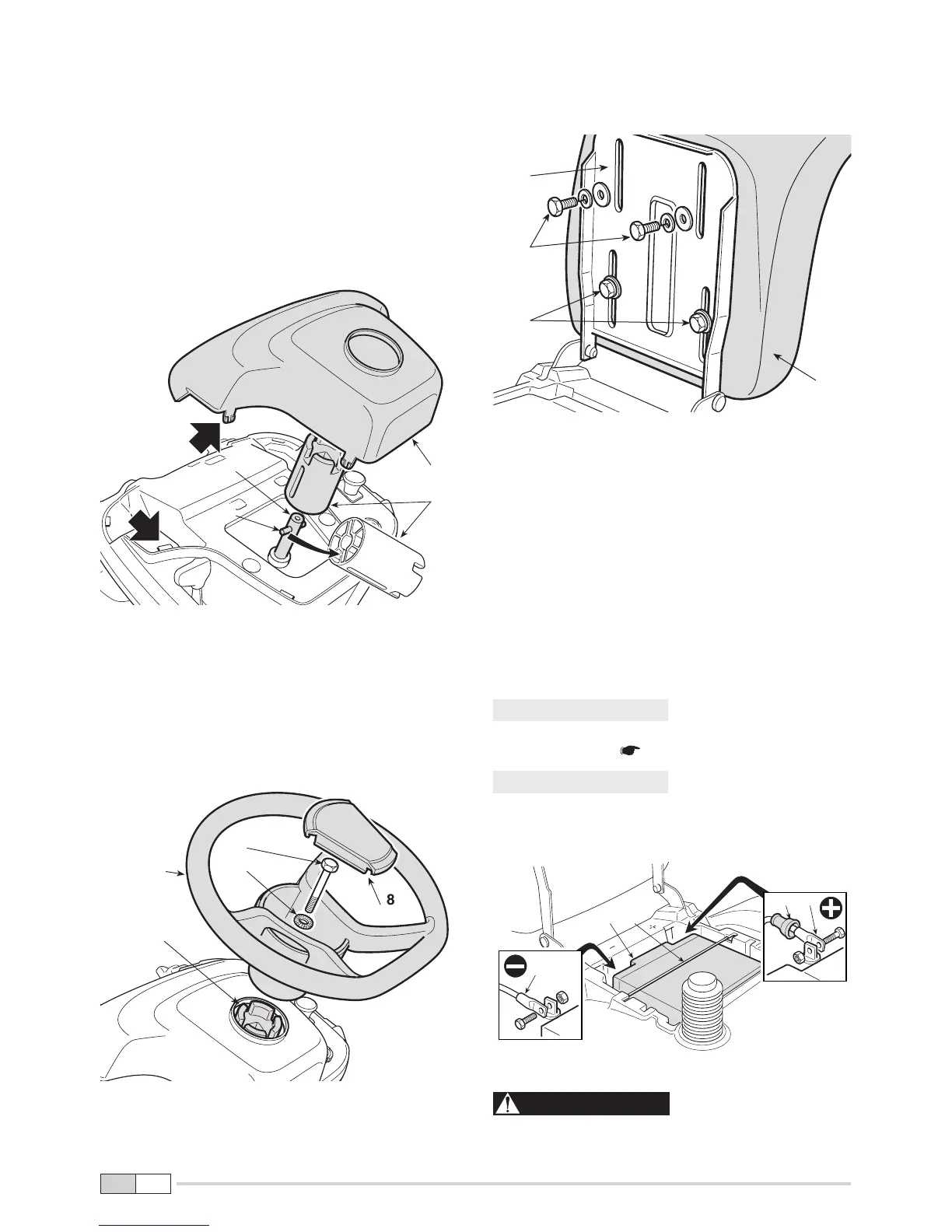

• Type “II” Steering Wheel
Put the machine on a flat surface and straighten
the front wheels.
Mount the hub (1) on the shaft (2), making sure
that the plug (3) is correctly fitted into the hub
seat.
Fit the dashboard cover (4) clicking the seven
fasteners into place.
Fit the steering wheel (5) onto the hub (1) with
the spokes pointing in the proper direction.
Attach the steering wheel (5) with the screw (6)
and washer (7) supplied as shown.
Fit the steering wheel cover (8) by clicking the
fasteners into place.
3.3 FITTING THE SEAT
Mount the seat (1) on the plate (2) using the
screws (3).
3.4 ASSEMBLY AND CONNECTING
THE BATTERY
The battery (1) is housed under the seat and
secured by a spring (2).
First connect the red wire (3) to the positive pole
(+) and then the black wire (4) to the negative
pole (–), using the screws supplied as shown.
Apply silicone grease to the terminals and check
that the protective cap for the red wire (8) is in
place.
IMPORTANT
Always fully charge the
battery according to the instructions in the bat-
tery’s manual (
6.2.5).
IMPORTANT
To prevent the safety
device in the electronic circuit board from cut-
ting in, never start the engine until the battery
is fully charged!
WARNING!
Do not use the ma-
chine without the guard (2) or with the bat-
tery incorrectly fixed in its housing.
