Hydrostatic transmission
4.31 BRAKE PEDAL
This pedal works the brake on the rear
wheels.
4.32 DRIVE PEDAL
This pedal engages drive in the wheels and
controls the machine’s forward and reverse
speeds.
– To engage forward drive, press it towards
«F» with your toe-cap. As you increase the
pressure on the pedal, the speed of the
machine increases.
– Reverse is engaged by pressing the pedal
with the heel towards «R».
– The pedal automatically goes into neutral
«N» when released.
WARNING!
Only shift into re-
verse when the machine has stopped
moving.
NOTE
If the drive pedal is
used, whether forwards or for reverse, the
engine stops as soon as the parking brake
(4.4) is engaged.

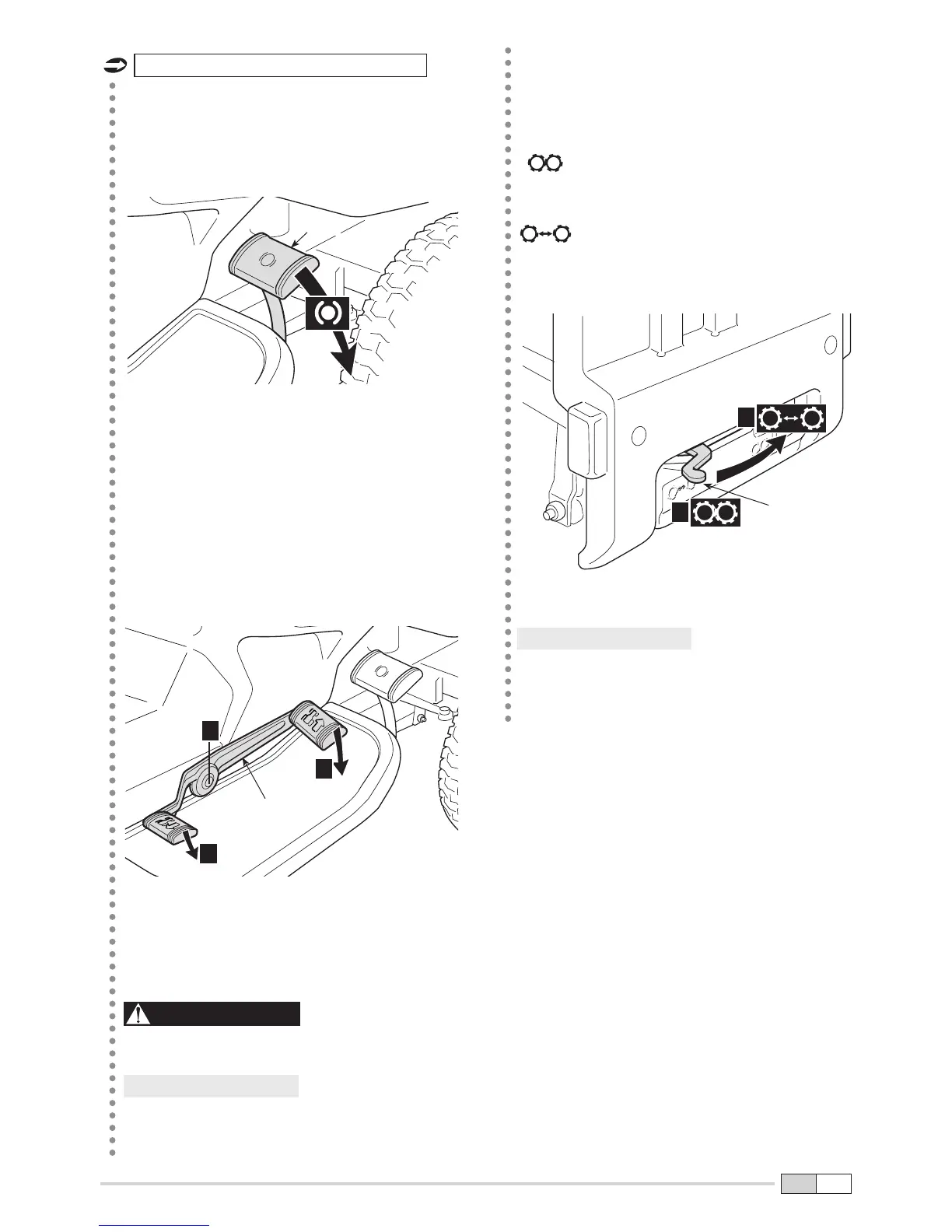

4.33 HYDROSTATIC TRANSMISSION
DISENGAGEMENT LEVER
This lever has two positions:
«A» = Transmission engaged: for
all uses, when moving and
during cutting;
«B» = Transmission disengaged:
this makes it much easier to
move the machine by hand,
with the engine turned off.
IMPORTANT
To avoid damage to
the transmission unit, this operation must
be carried out only when the engine has
stopped with the pedal (4.32) on position
«N».
4.31
4.32
R
N
F
4.33
A
B
