STIHL 019 T
35

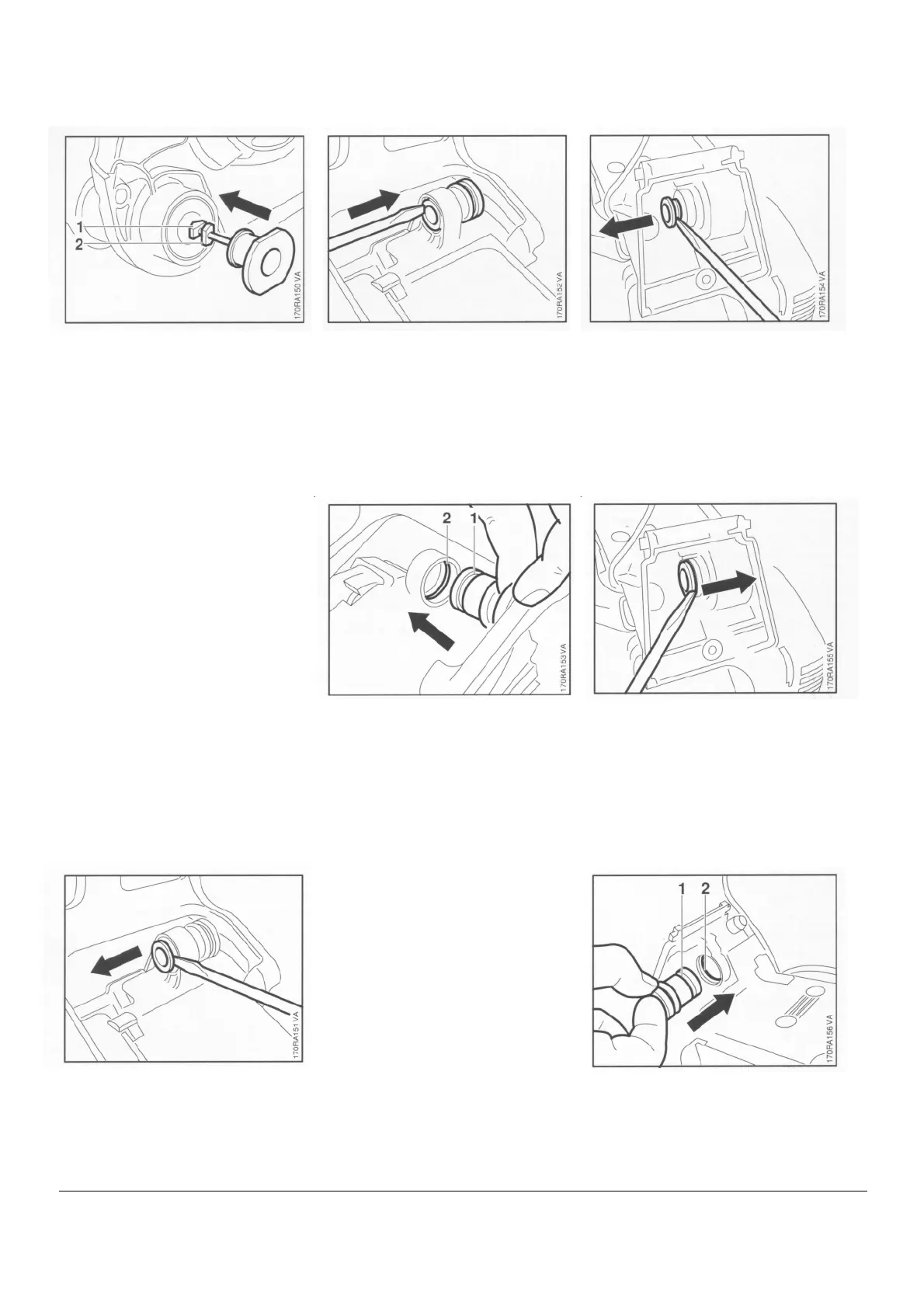

• Position the plug so that the front
key (1) lines up with the slot in the
inner plug.
• Push the plug in until you feel
noticeable resistance.
• Now turn plug about 90 degrees
(the rear key (2) then lines up with
the slot) and push it home until it
butts against the rubber buffer.
- Rotate the plug another 90
degrees.
• Push the annular buffer out of its
seat.
• Pry plug (without key) out of
annular buffer.
• Push the small end of the annular
buffer (oil it first) into the seat until its
groove (1) engages the rib (2).
Rear annular buffer in engine
housing
- Remove the top handle - see 8.5.
• Push the annular buffer out of its
seat.
Front annular buffer in engine
housing
- Remove the top handle - see 8.5.
• Pry plug (without key) out of
annular buffer.
• Push the small end of the annular
buffer (oil it first) into the seat until
its groove (1) engages the rib (2).
