If a loop handle is already fitted:
N Align the loop handle (1) and secure
it in position – see "Adjusting and
Securing the Loop Handle".
If a loop handle is not fitted:
N Mount the loop handle – see chapter
on "Mounting the Loop Handle".

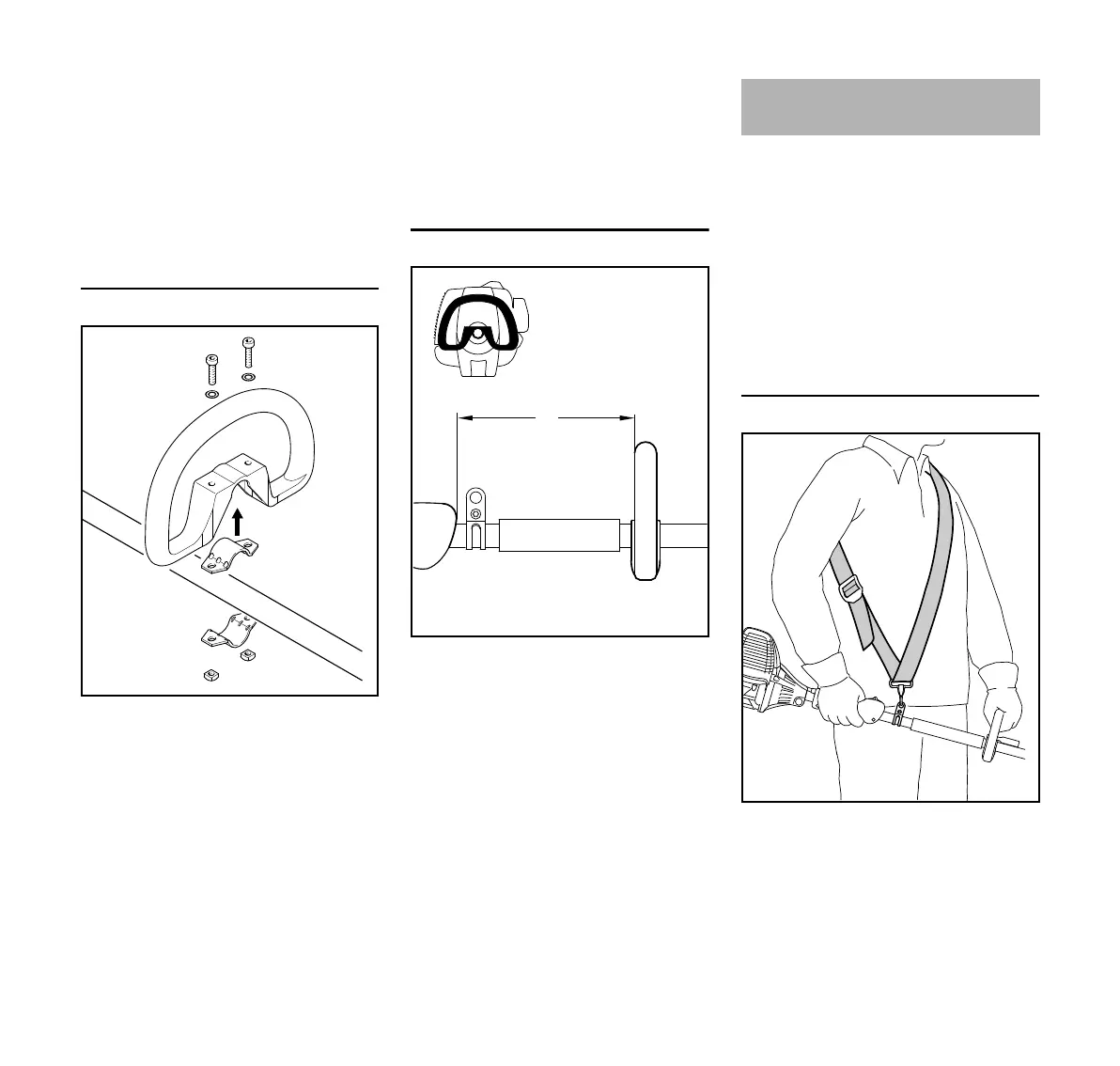

Mounting the Loop Handle
N Place the clamp (5) in the loop
handle (1) and position them both
against the drive tube (6).
N Position the clamp (7) against the
drive tube.
N Line up the holes.
N Fit the washers (8) on the
screws (9), and insert the screws in
the holes.
N Rotate the square nuts (10) as far
as stop.
N Align the loop handle (1) and secure
it in position – see "Adjusting and
Securing the Loop Handle".
Adjusting and Securing the Loop Handle
N Align the loop handle (1) and move
it to the most comfortable position.
Distance A must not be more than
55 cm (22 in).
N Tighten down the screws firmly –
lock the nuts if necessary.
Not all basic power tools are equipped
with a harness and carrying ring.
N Fit the carrying ring – see "Fitting the
Carrying Ring".
The shoulder strap/harness is available
as a special accessory.
The type of carrying ring, shoulder
strap/harness and carabiner depends
on the market and the basic power tool.
Shoulder Strap
N Put on the shoulder strap (1).
N Adjust the length of the strap – with
the machine attached, the
carabiner (2) must be about a
hand's width below your right hip.
1
6
002BA157 KN
10
7
10
5
9
8
9
8
002BA183 KN
1
A
Fitting the Harness
1
002BA441 KN
2
