3 Main Parts
WARNING
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
NOTICE
Indicates a risk of property damage, including damage to the
machine or its individual components.
2.2 Symbols in Text
The following symbol is included to assist you with the use
of the manual:

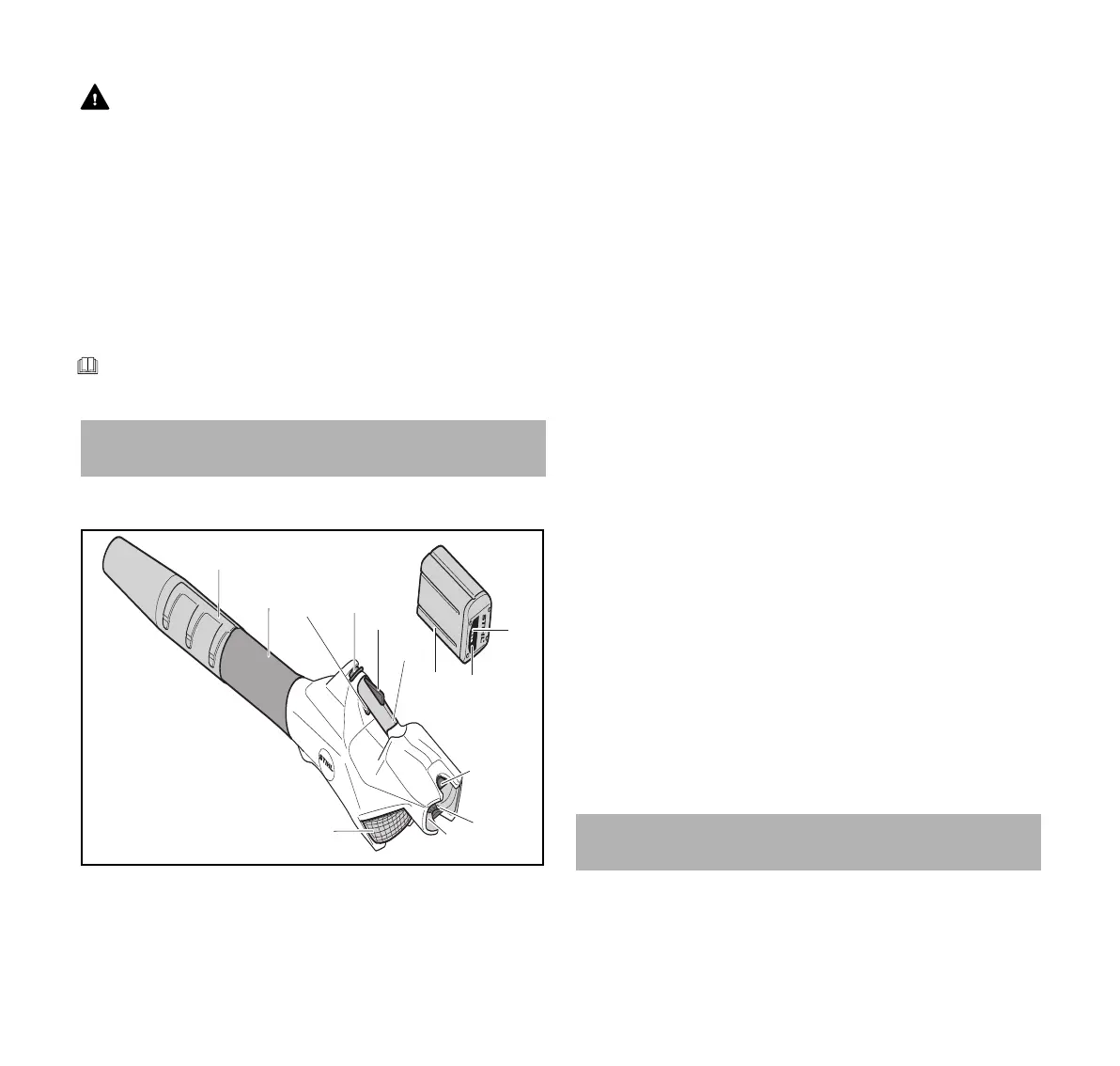

3.1 Blower and Battery
1 Nozzle
Directs and concentrates the airstream.
2Blower Tube
Directs the airstream.
3 Intake Screen
Covers the air intake opening and reduces risk of contact
with the blower fan.
4 Battery Compartment
Holds the battery.
5 Locking Lever
Secures the battery in the battery compartment.
6 Control Handle
The blower's handle.
7 Ergo-Lever
Holds the retaining latch in the unlocked position.
8 Retaining Latch
Locks/unlocks the trigger switch.
9 Trigger Switch
Switches the motor on and off.
10 Battery
Supplies electrical power to the motor.
11 Battery LEDs
Indicate the battery's state of charge and display error
messages regarding potential malfunctions in the battery
or power tool.
12 Push Button
Activates the battery‘s LEDs.
# Rating Plate
Contains electrical information and the product's serial
number.
4.1 Blower
The following safety symbols are found on the blower.
Refers to a designated chapter or sub-chapter in this
instruction manual.
3Main Parts
7
6
8
9
1
2
5
#
4
3
10
11
12
#
0000-GXX-9902-A0
