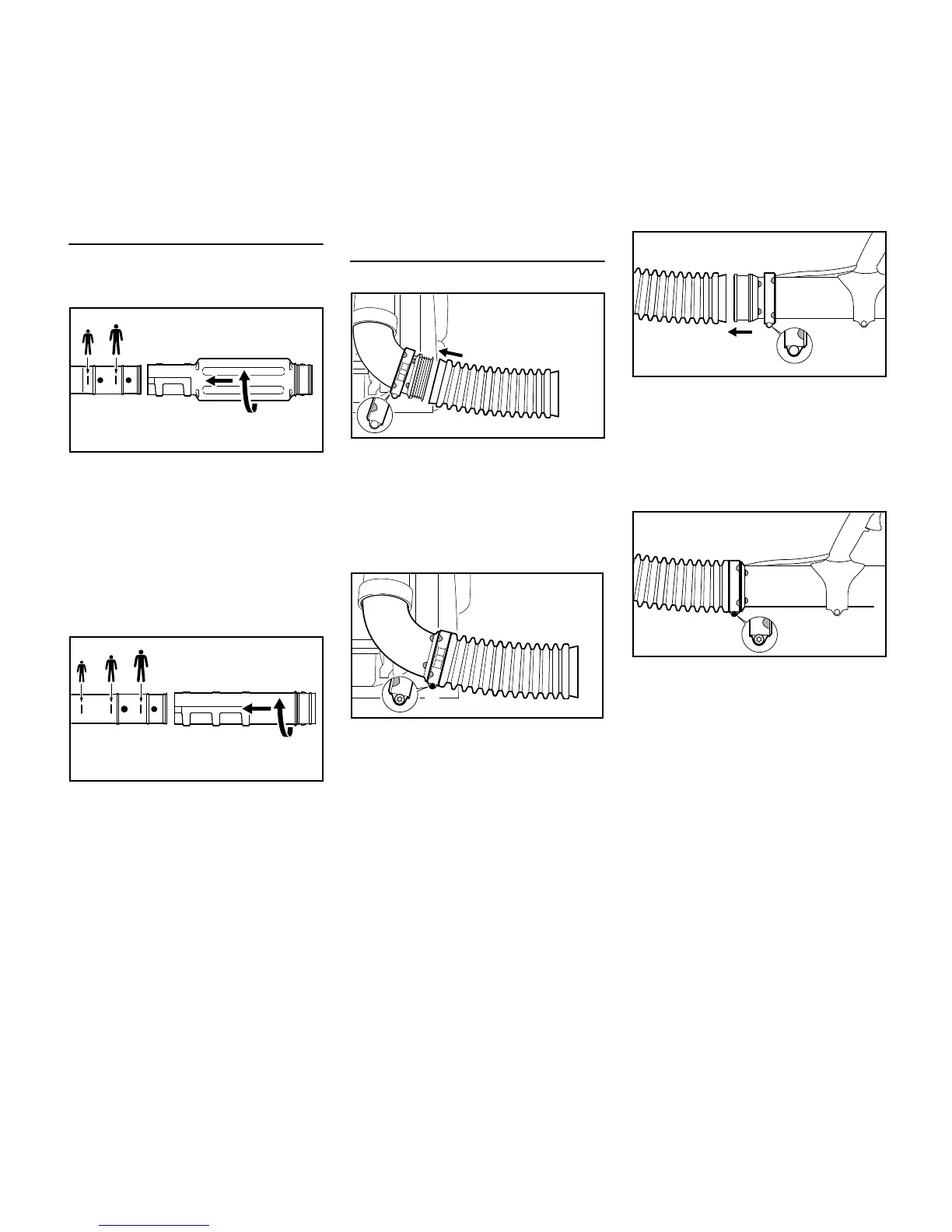

Mounting the Blower Tubes
BR 500
N Depending on your size and reach:
Push blower tube (1) up to the
appropriate mark on the blower
tube (2).
N Rotate the blower tube (1) in the
direction of the arrow and engage it
in the appropriate slot (3).
BR 550, BR 600
N Depending on your size and reach:
Push blower tube (1) up to the
appropriate mark on the blower
tube (2).
N Rotate the blower tube (1) in the
direction of the arrow and engage it
in the appropriate slot (3).
Mounting the Hose Clamps and Pleated
Hose
N Push the hose clamp (1) (with
retainer for throttle cable) onto the
elbow (3) – the positioning marks
must face to the left.
N Push the pleated hose (2) over the
elbow (3).
N Push the hose clamp (1) onto the
pleated hose (2).
N Line up the positioning marks on the
hose clamp (1) and elbow (3) – the
screw eye faces down.
N Secure the hose clamp (1) with the
screw (4).
N Push the hose clamp (5) (without
retainer for throttle cable) onto the
elbow (6) – the positioning marks
must face to the right.
N Push the blower tube (6) into the
pleated hose (2).
N Push the hose clamp (5) onto the
pleated hose (2).
N Line up the hose clamp (5) and
blower tube (6) – as shown.
N Secure the hose clamp (5) with the
screw (7).
452BA095 KN
1
2
3
452BA096 KN
1
2
3
2
1
452BA108 KN
3
452BA109 KN
2
1
4
3
2
452BA103 KN
5
6
2
5
452BA104 KN
6
7

Stihl BR 600 Specifications

General

Type	Backpack blower
Airflow	1150 m³/h
Airspeed	320.4 km/h
Suction mode	-
Airspeed (max)	381.6 km/h
Shoulder strap	Yes
Power source	Gasoline
Sound power level	108 dB
Vibration emission	2.5 m/s²
Sound pressure level	100 dB

Weight and Dimensions

Weight	10200 g
