Stihl E 160 User Manual

- Remove carbon brushes -
see 5.1.
- Remove oil tank - see 9.1.

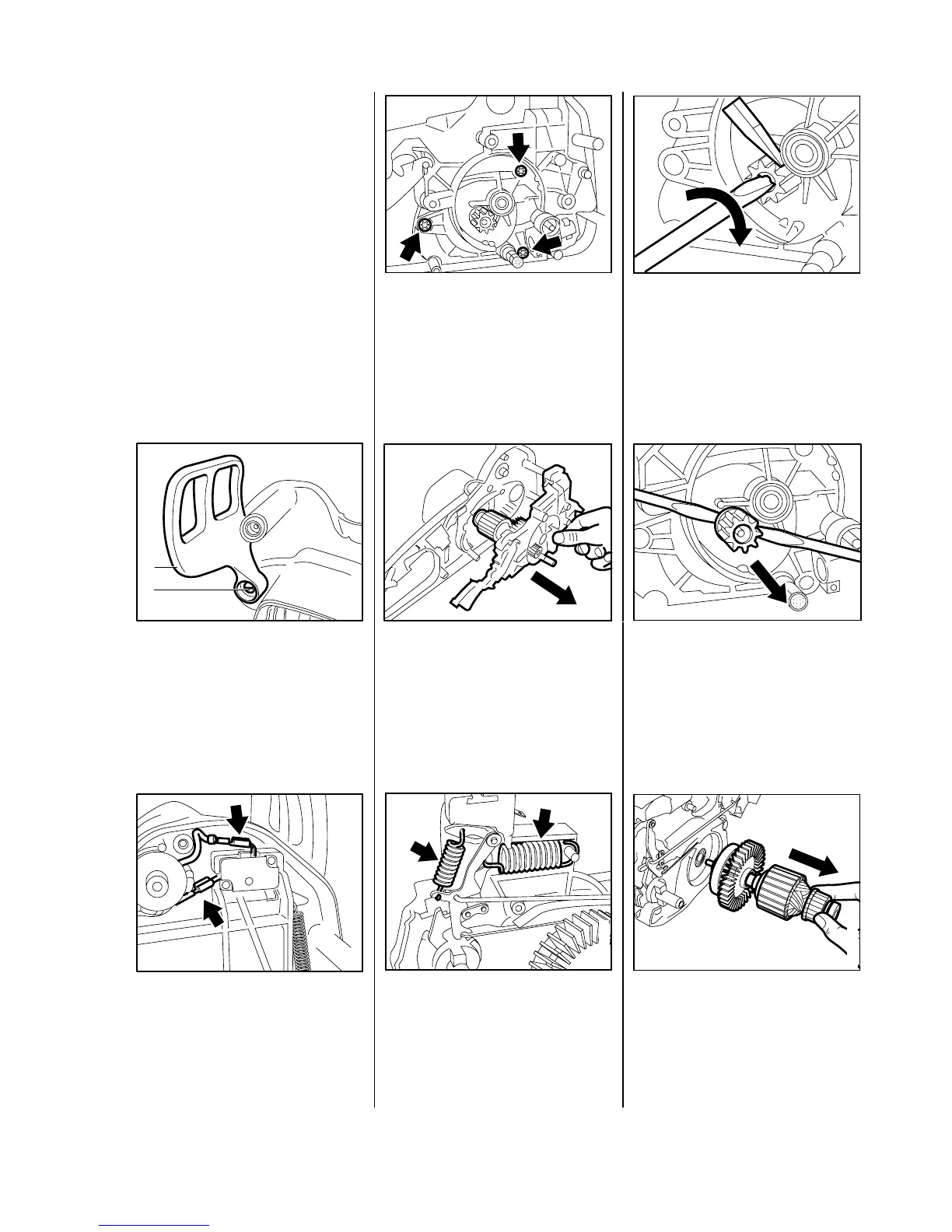

Remove the ring gear and spur
gear - see 6.2.
•
Take out the screw (1).
•
Pull off the hand guard (2).
•
Pull wires off connector tags on
chain brake switch.
•
Remove screws from gear
housing.
•
Remove the gear housing and
pull the rotor out of the stator at
the same time.
•
Disconnect the tension springs.
- Useahot air blower to heat the
pinion mounting nut.
•
Hold pinion steady and unscrew
slotted mounting nut in direction
of arrow (left-hand thread).
•
Pry the pinion off the rotor shaft.
•
Pull the rotor out of the ball
bearing.
100RA032
1
2
VA
100RA034
VA
100RA033
VA
100RA024
VA
VA
100RA035
100RA036
VA
100RA037
VA
5.2 Rotor
VA
100RA038
11
