FR 480 C
English
18

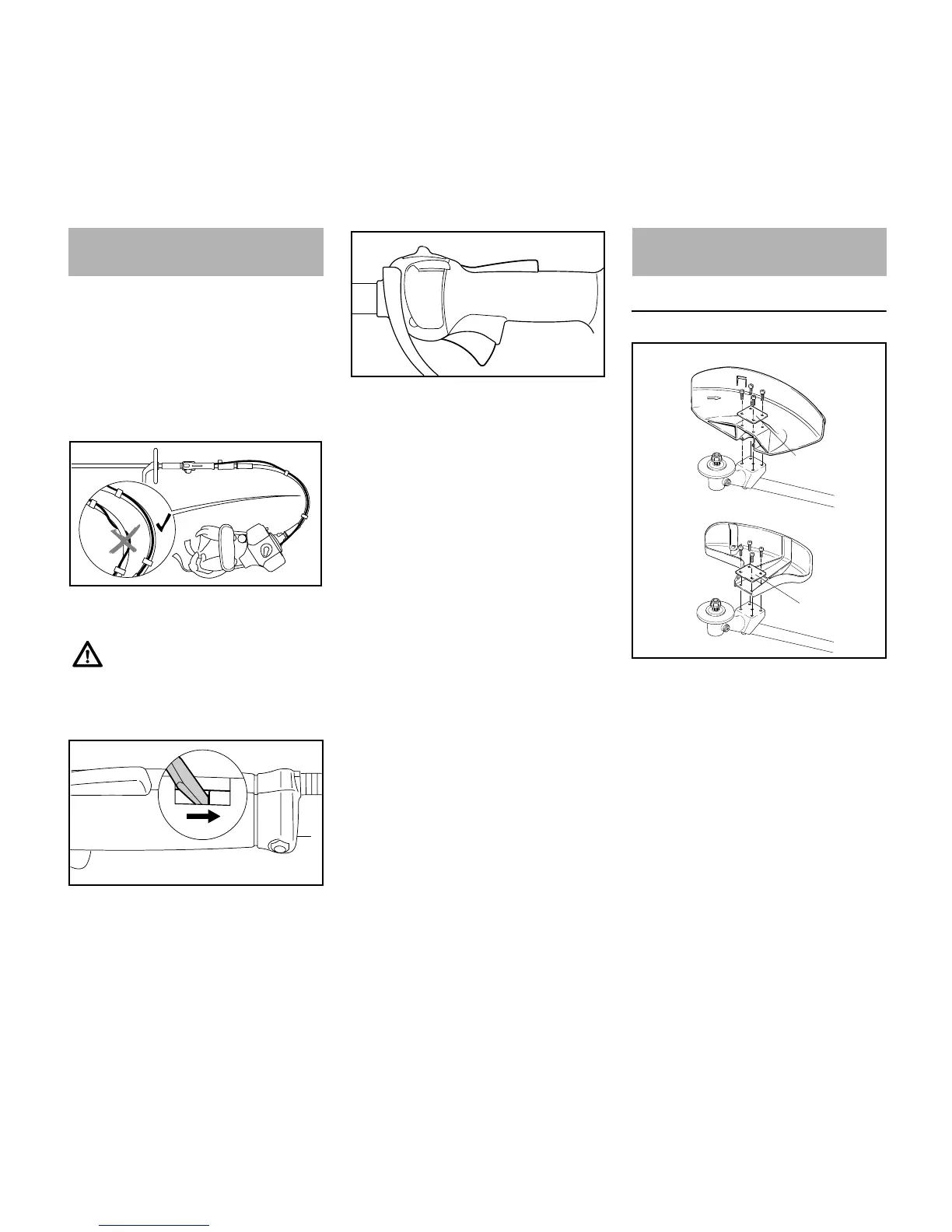

A properly adjusted throttle cable is the
precondition for correct operation in the
full throttle, starting throttle and idle
positions.
Adjust the throttle cable only after the
unit is fully assembled – the control
handle must be in the normal operating
position.
N Put the machine on the ground in
the normal operating position.
N Use a suitable tool to push the slide
to the end of the slot (see
illustration).
N Press down the throttle trigger
lockout (1) and squeeze the throttle
trigger (2) (full throttle) – this sets
the throttle cable correctly.
Mounting the Deflector
1 Deflector for mowing attachments
2 Deflector for mowing heads
3 Plate
Deflectors (1) and (2) are both mounted
to the gearbox in the same way.
N Place the deflector on the gearbox
flange.
N Fit the plate (3) and line it up.
N Insert the M5x16 screws and tighten
them down firmly.
Adjusting the Throttle
Cable
The throttle cable must be
positioned parallel to the flexible
shaft, not wrapped around it.
Correct adjustment of throttle
cable is otherwise not possible.
271BA067 KN
002BA163 KN
2
1
271BA068 KN
Mounting the Deflector
002BA102 KN
1
3
2
3
