FS 111, FS 111 R

English

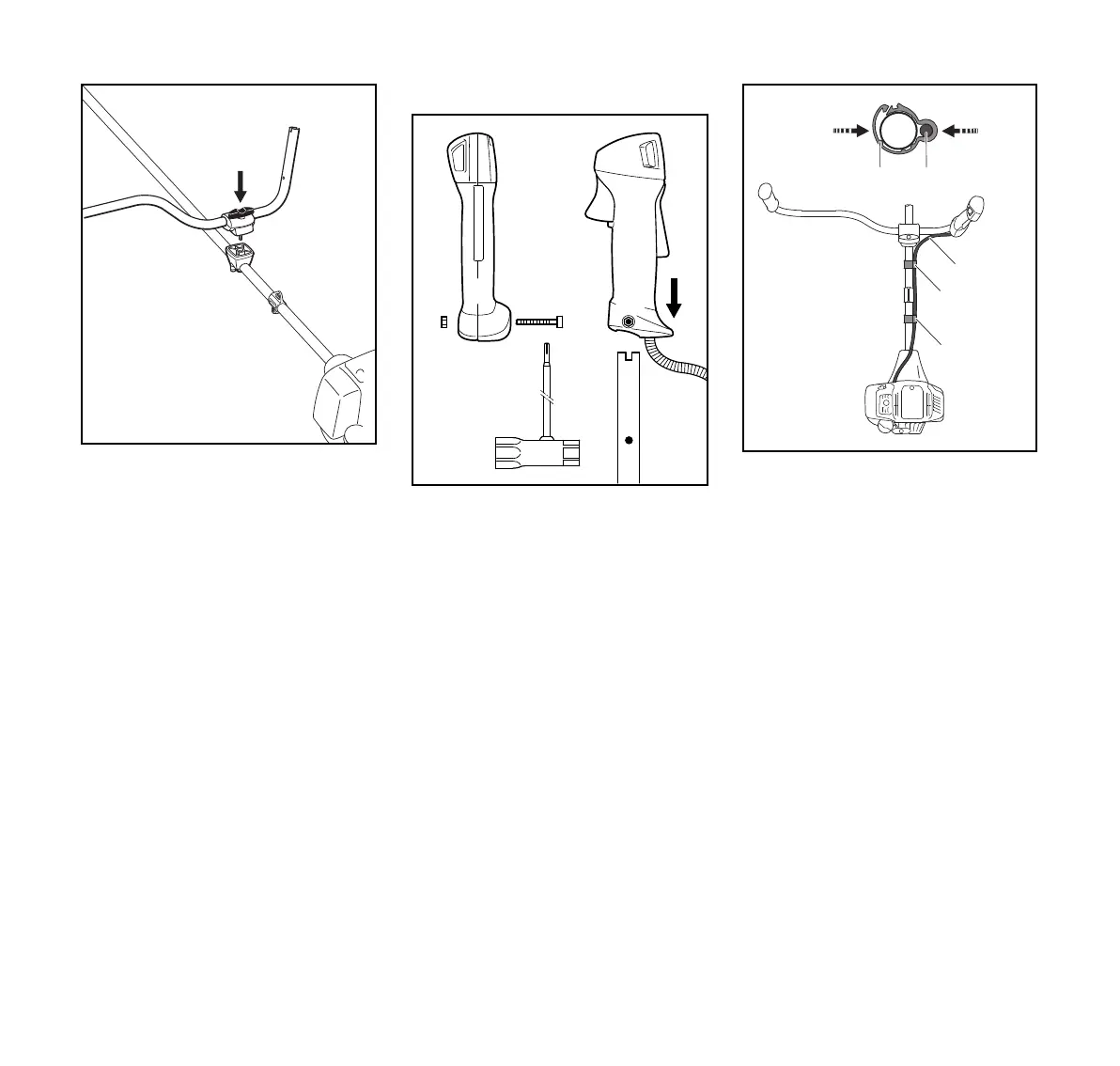

N Place the secured assembly on the

handle support (8) with the wing

screw at the side nearest the

engine.

N Push the wing screw into the handle

support as far as stop and then

screw it down – but do not finally

tighten yet.

N Line up the handlebar at a right

angle to the drive tube – check

distance A again.

N Tighten down the wing screw firmly.

Mounting the Control Handle

N Take out the screw (9) – the nut (10)

remains in the control handle (11).

N Push the control handle onto the

handlebar (7) until the holes (13)

line up – the throttle trigger (12)

must point towards the gearbox.

N Insert the screw (9) and tighten it

down firmly.

Fitting the Throttle Cable

NOTICE

Do not kink the throttle cable or lay it in

tight radii – make sure the throttle trigger

moves freely.

N Position the clamp (15) and handle

support (14) against the drive tube.

N Close the throttle cable

retainer (15). The retainer (15)

snaps into place.

Adjusting the Throttle Cable

N Check adjustment of throttle cable –

see chapter on "Adjusting the

Throttle Cable".

0000-GXX-0510-A0

0000-GXX-0511-A0

0000-GXX-0512-A1
