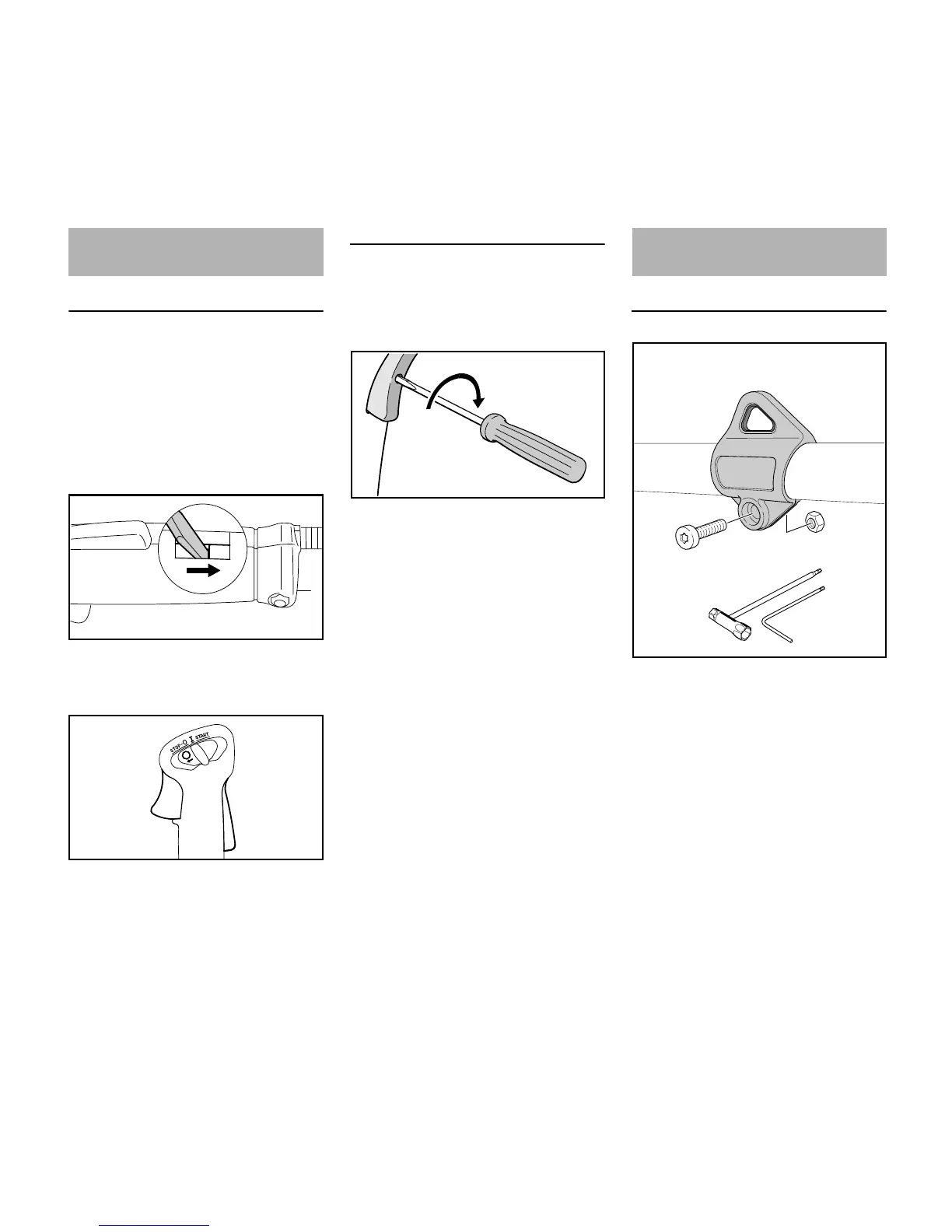

Loop Handle
A properly adjusted throttle cable is the
precondition for correct operation in the
full throttle, starting throttle and idle
positions.
Adjust the throttle cable only after the
machine is fully assembled – the control
handle must be in the normal operating
position.
N Use a suitable tool to push the slide
to the end of the slot (see
illustration).
N Press down the trigger lockout (1)
and squeeze the throttle trigger (2)
(full throttle position) – this sets the
throttle cable correctly.
Bike Handle
It may be necessary to correct the
adjustment of the throttle cable after
assembling the machine or after a
prolonged period of operation.
Adjust the throttle cable only when the
machine is completely and properly
assembled.
N Set the throttle trigger to the full
throttle position.
N Carefully rotate the screw in the
throttle trigger in the direction of the
arrow until you feel initial resistance.
Then rotate it another half turn in the
same direction.
Polymer Version
For position of carrying ring see "Main
Parts".
N Push the carrying ring (1) over the
drive tube.
N Insert the M5 nut in the hex recess
in the carrying ring.
N Fit the M5x14 screw.
N Line up the carrying ring.
N Tighten down the screw firmly.
Adjusting the Throttle Cable
002BA163 KN
STOP
249BA017 KN
1
2
002BA655 KN
Fitting the Carrying Ring
1
002BA529 KN
