FS 120, FS 120 R, FS 250
English
44

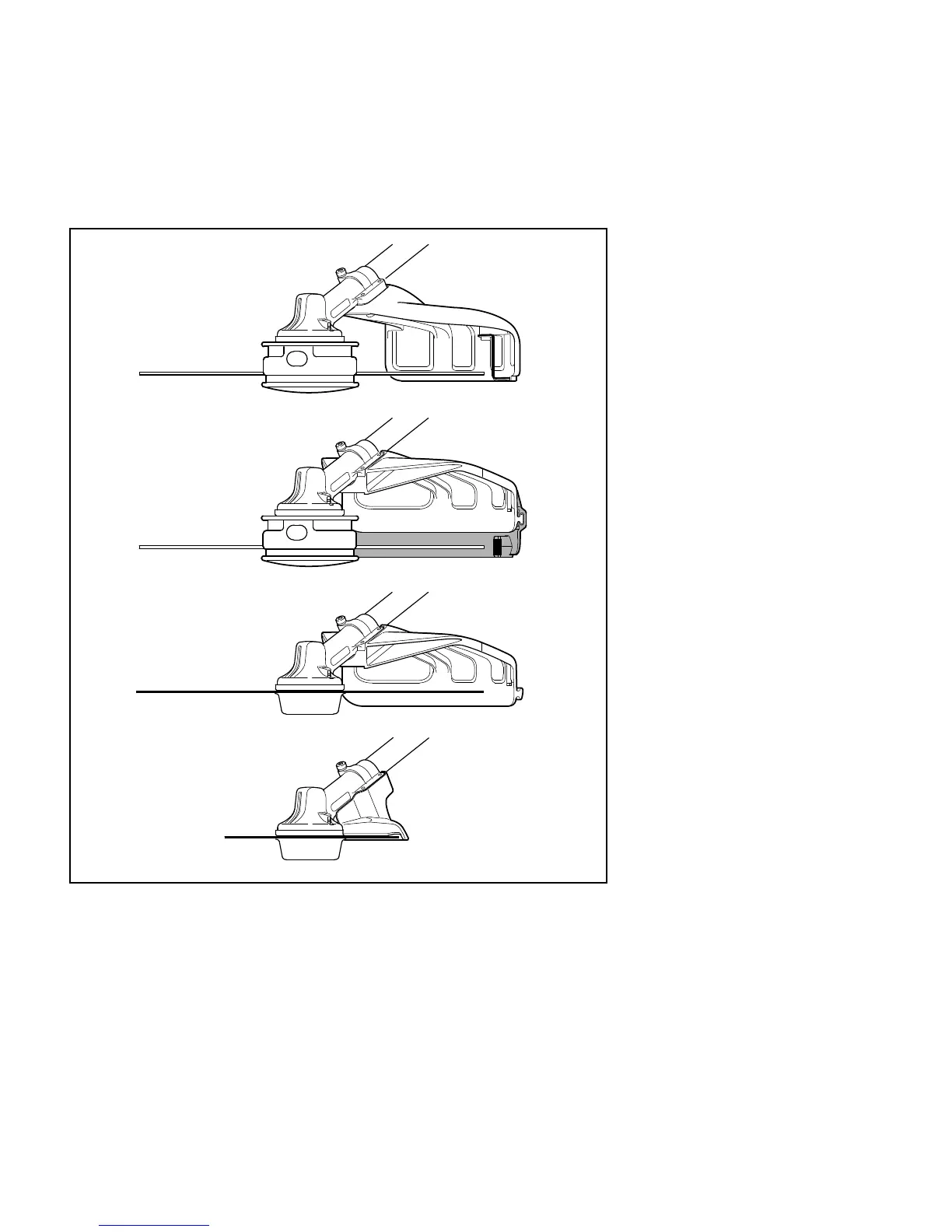

1 Drive tube
2 Mowing head
3 Deflector for mowing heads only
4 Line limiting blade
5 Deflector for all mowing
attachments
6 Skirt for mowing heads
7 Metal mowing attachment
8 Circular saw blade
9 Limit stop for circular saw blades
only
5
5
8
1
2
6
4
7
2
3
1
1
9
1
002BA644 KN
4
