45FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

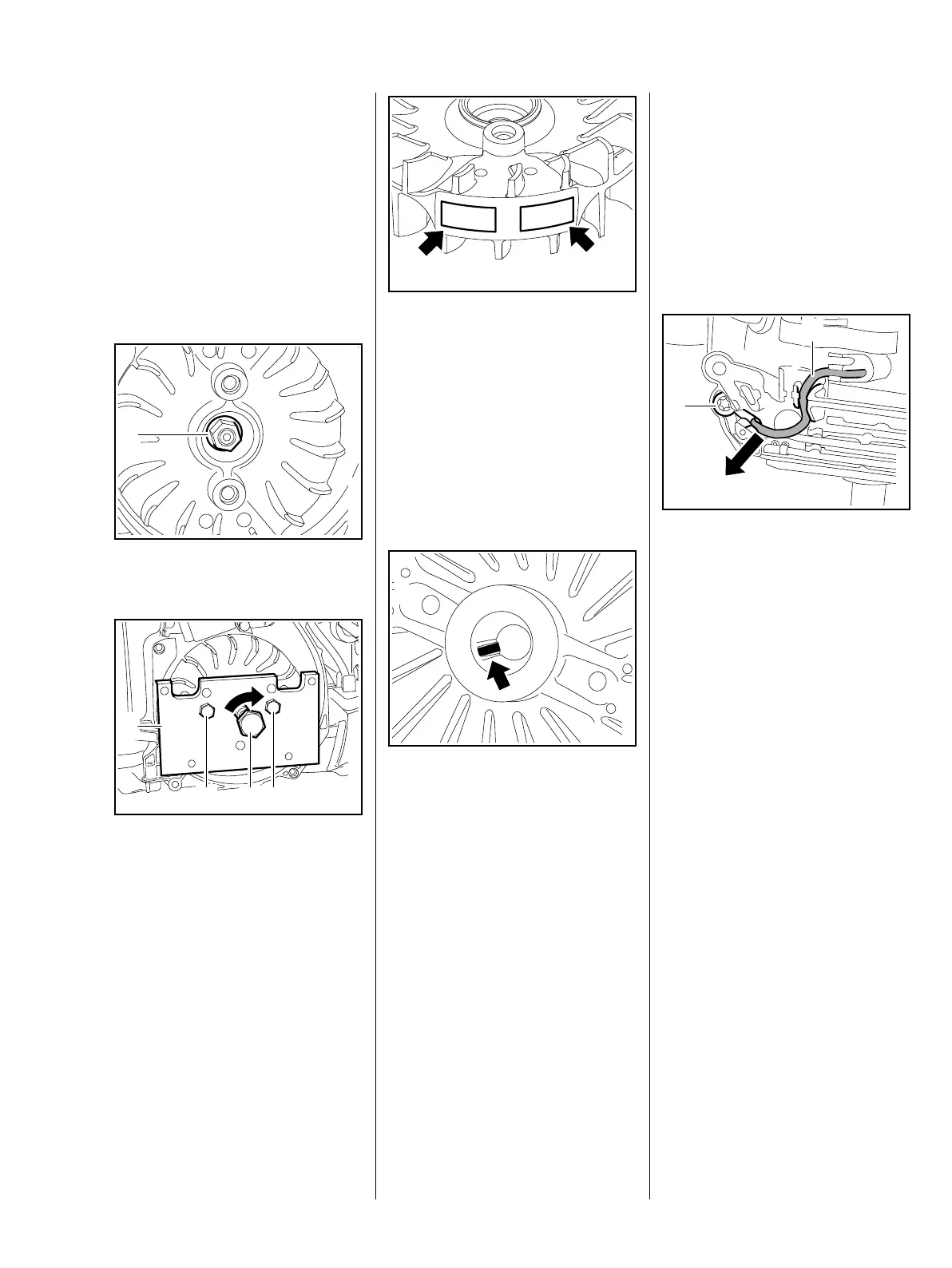

6.5 Flywheel
– Remove shroud, b 5.4
– Remove clutch housing, b 4.1
– Block the piston with the locking
strip, b 4.2
– Remove clutch, b 4.2
: Unscrew the flywheel nut (1)
: Position puller (1)
5910 890 4503, screw in and
tighten hexagon bolts (2) of the
clutch
: Turn bolt (3) clockwise until the
flywheel come loose and remove
flywheel
– Detach puller (3) 5910 890 4503
from flywheel
1
5904RA145 TG
1
3
5904RA146 TG
22
The flywheel and magnet
poles (arrows) must not display any
signs of damage or blue
discoloration; replace flywheel if
necessary.
Installation
Flywheel and crankshaft stub must
be free from grease for installation.
Ensure that the machined key
(arrow) engages the slot in the
crankshaft.
– Set the air gap between ignition
coil and flywheel, b 6.2
– Reassemble remaining parts in
reverse order
5904RA147 TG5904RA148 TG
6.6 Short circuit wire
The short circuit wire and ground
wire form a single unit together with
the throttle cable; the throttle cable
must be replaced if there is any sign
of damage.
6.6.1 Testing
Check the short circuit wire if the
spark plug and ignition lead with
spark plug boot are in order.
– Remove shroud, b 5.4
: Unscrew screw (1) and remove
clamp (2) of the ignition module
1
2
5904RA241 TG
