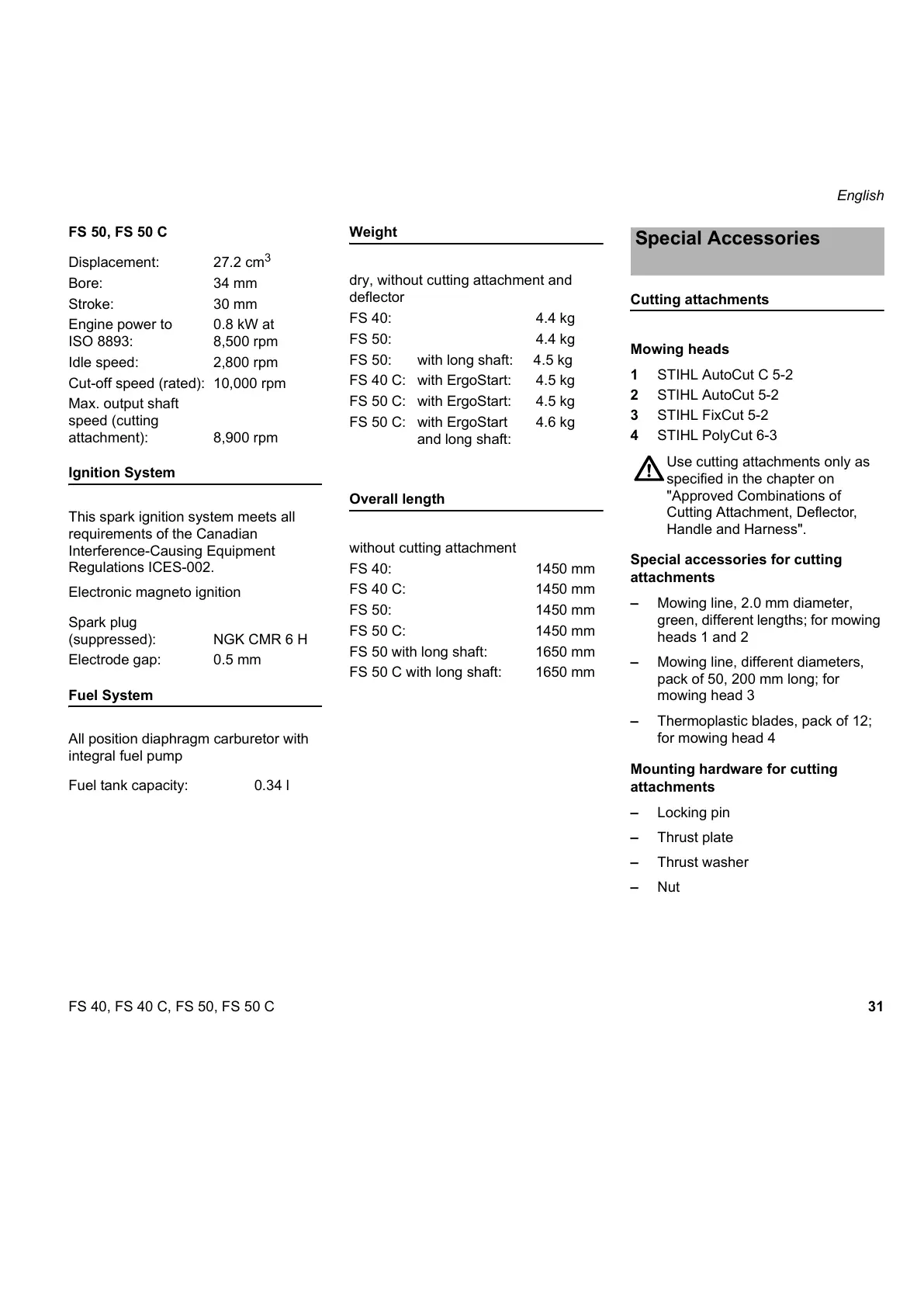

Stihl FS 50 C User Manual

FS 40, FS 40 C, FS 50, FS 50 C
English
31
FS 50, FS 50 C
Ignition System
This spark ignition system meets all
requirements of the Canadian
Interference-Causing Equipment
Regulations ICES-002.
Electronic magneto ignition
Fuel System
All position diaphragm carburetor with
integral fuel pump
Weight
Overall length
Cutting attachments
Mowing heads
1 STIHL AutoCut C 5-2
2 STIHL AutoCut 5-2
3 STIHL FixCut 5-2
4 STIHL PolyCut 6-3
Special accessories for cutting
attachments
– Mowing line, 2.0 mm diameter,
green, different lengths; for mowing
heads 1 and 2
– Mowing line, different diameters,
pack of 50, 200 mm long; for
mowing head 3
– Thermoplastic blades, pack of 12;
for mowing head 4
Mounting hardware for cutting
attachments
– Locking pin
– Thrust plate
– Thrust washer
– Nut
Displacement: 27.2 cm
3
Bore: 34 mm
Stroke: 30 mm
Engine power to
ISO 8893:
0.8 kW at
8,500 rpm
Idle speed: 2,800 rpm
Cut-off speed (rated): 10,000 rpm
Max. output shaft
speed (cutting
attachment): 8,900 rpm
Spark plug
(suppressed): NGK CMR 6 H
Electrode gap: 0.5 mm
Fuel tank capacity: 0.34 l
dry, without cutting attachment and
deflector
FS 40: 4.4 kg
FS 50: 4.4 kg
FS 50: with long shaft: 4.5 kg
FS 40 C: with ErgoStart: 4.5 kg
FS 50 C: with ErgoStart: 4.5 kg
FS 50 C: with ErgoStart
and long shaft:
4.6 kg
without cutting attachment
FS 40: 1450 mm
FS 40 C: 1450 mm
FS 50: 1450 mm
FS 50 C: 1450 mm
FS 50 with long shaft: 1650 mm
FS 50 C with long shaft: 1650 mm
Special Accessories
Use cutting attachments only as
specified in the chapter on
"Approved Combinations of
Cutting Attachment, Deflector,
Handle and Harness".
