Stihl FS 56 RC User Manual

FS 56, FS 56 R, FS 56 C, FS 56 RC
English
14
A factory-new machine comes with the
loop handle already mounted.
Using the Barrier Bar
A barrier bar may have to be mounted to
suit the cutting attachment you intend to
use – see "Approved Combinations of
Cutting Attachment, Deflector, Handle
and Harness".
The barrier bar comes standard with the
machine or is available as a special
accessory.

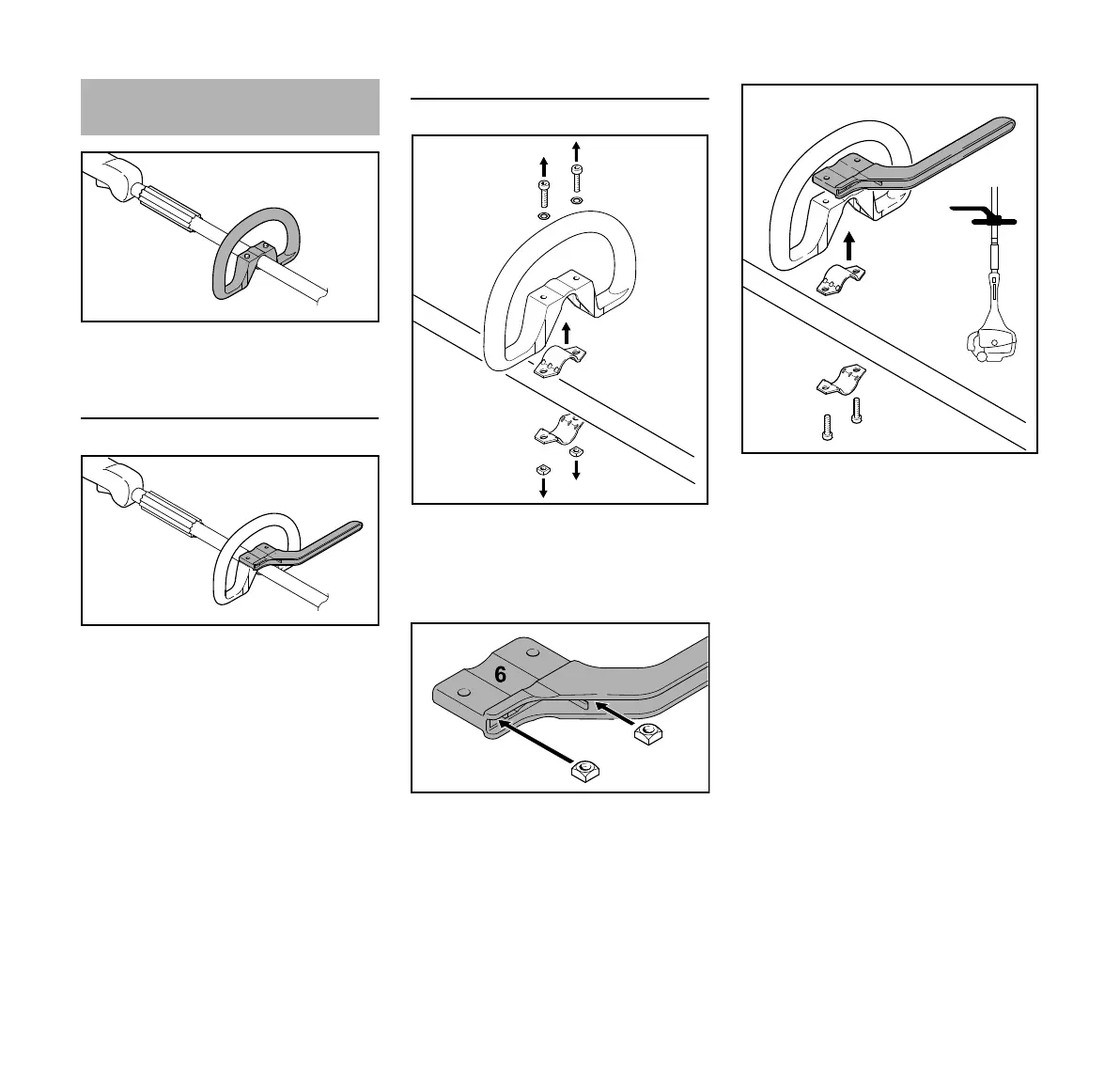

Mounting the Barrier Bar
N Take out the screws (1) and remove
along with washers (2) and nuts (3).
N Remove the loop handle (4) and
clamps (5).
N Fit the square nuts (3) in the barrier
bar (6); the holes must line up.
N Place the clamp (7) in the loop
handle (4) and position them both
against the drive tube (8).
N Position the clamp (8) against the
drive tube.
N Place the barrier bar (6) in position
as shown.
N Line up the holes.
N Insert the screws (1) in the holes
and screw them into the barrier bar
as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
Leave the barrier bar permanently
mounted to the loop handle.
Mounting the Loop Handle
002BA586 KN
002BA587 KN
4
002BA588 KN
3
5
3
5
1
2
1
2
3
3
002BA609 KN
8
6
4
002BA610 KN
7
9
1
1
