FS 56, FS 56 R, FS 56 C, FS 56 RC
English
15

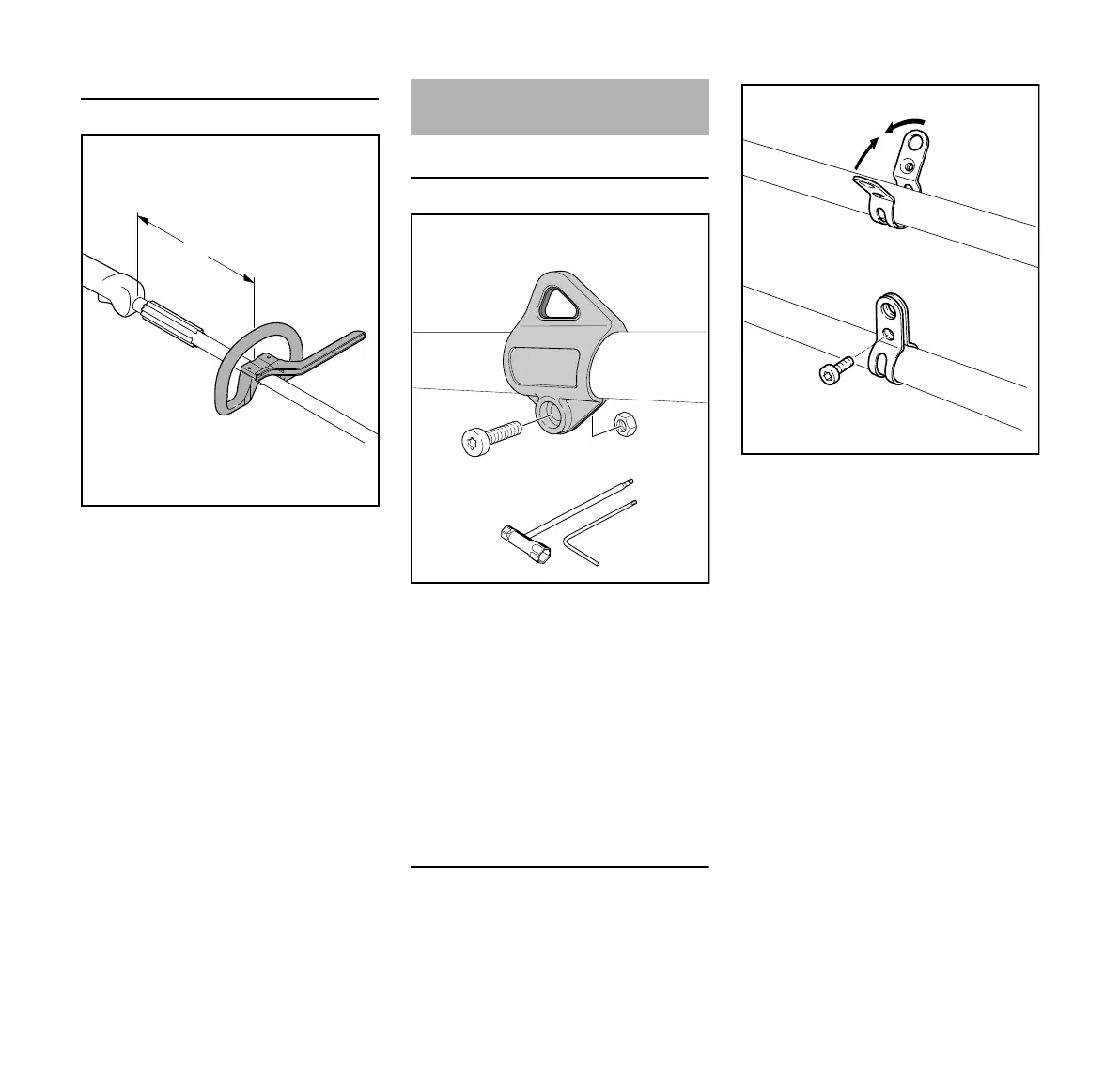

Adjusting and Securing the Loop Handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance (A).
Recommendation: distance (A):
about 15 cm (5.9 in)
N Slide the handle to the required
position.
N Line up the loop handle (4).
N Tighten down the screws until the
loop handle can no longer be
rotated on the drive tube. If no
barrier bar is fitted – lock the nuts if
necessary.
Polymer Version
For position of carrying ring see "Main
Parts".
N Push the carrying ring (1) over the
drive tube.
N Insert the M5 nut in the hex recess
in the carrying ring.
N Fit the M5x14 screw.
N Line up the carrying ring.
N Tighten down the screw firmly.
Metal Version
The carrying ring comes standard with
the machine or is available as a special
accessory.
For position of carrying ring see "Main
Parts".
N Place the clamp (1) against the
drive tube with the tapped hole on
the left (viewed from engine).
N Squeeze the two ends of the clamp
together and hold in that position.
N Insert the M6x14 screw (2).
N Line up the carrying ring.
N Tighten down the screw firmly.
4
002BA611 KN
A
Fitting the Carrying Ring
1
002BA529 KN
002BA142 KN
1
2
1
