Stihl FS 91 User Manual

FS 91, FS 91 R
English
24

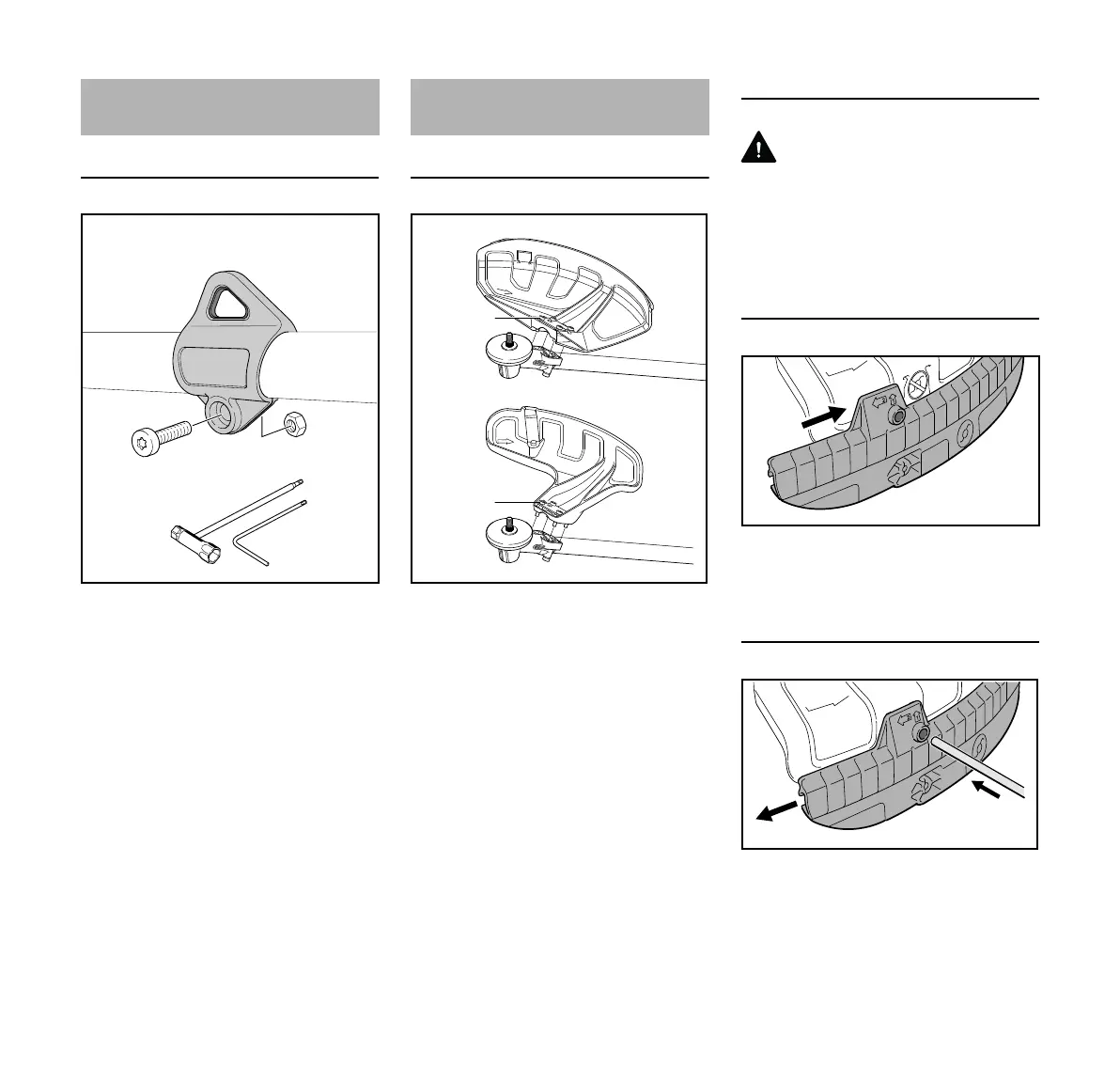

Polymer Version
For position of carrying ring see "Main
Parts".
N Push the carrying ring (1) over the
drive tube.
N Insert the M5 nut in the hex recess
in the carrying ring.
N Fit the M5x14 screw.
N Line up the carrying ring.
N Tighten down the screw firmly.
Mounting the Deflector
1 Deflector for mowing attachments
2 Deflector for mowing heads
Deflectors (1 and 2) are both mounted to
the gearbox in the same way.
N Place the deflector on the gearbox
flange.
N Insert the screws (3) and tighten
them down firmly.
Fitting the Skirt and Blade
WARNING
Risk of injury from thrown objects and
contact with the cutting attachment.
These parts must be fitted to the
deflector (1) when you use a mowing
head.
Fitting the Skirt
N Slide the lower guide slot of the skirt
onto the deflector – it must snap into
position.
Removing the Skirt
N Insert the stop pin into the hole in
the skirt and use it to push the skirt
to the left.
N Pull the skirt off the deflector.
Fitting the Carrying Ring
1
002BA529 KN
Mounting the deflector
002BA636 KN
2
1
3
3
002BA637 KN
1.
2.
002BA646 KN
