Stihl FSE 71 User Manual

10
English
FSE 60, FSE 71, FSE 81
: Pull the protective cap off the drive
tube.
: Push the drive tube (1) into the
motor housing (2) as far as the
mark (A), turning the drive tube
back and forth at the same time.
: Tighten down the screw (3) in the
housing.
Mounting the Loop Handle
: Fit the loop handle (1) on the drive
tube at a distance A of about 30 cm
from the control handle (2).
: Insert the hex nut (3) in the loop
handle.
: Squeeze the ends of the clamp
together, fit the M6x40 screw (4)
with washer (5) from the other wise
and tighten down firmly.
Adjusting Loop Handle to Most
Comfortable Position
: Loosen the screw (4).
: Move the loop handle along the
drive tube to the required position –
tighten down the screw firmly.

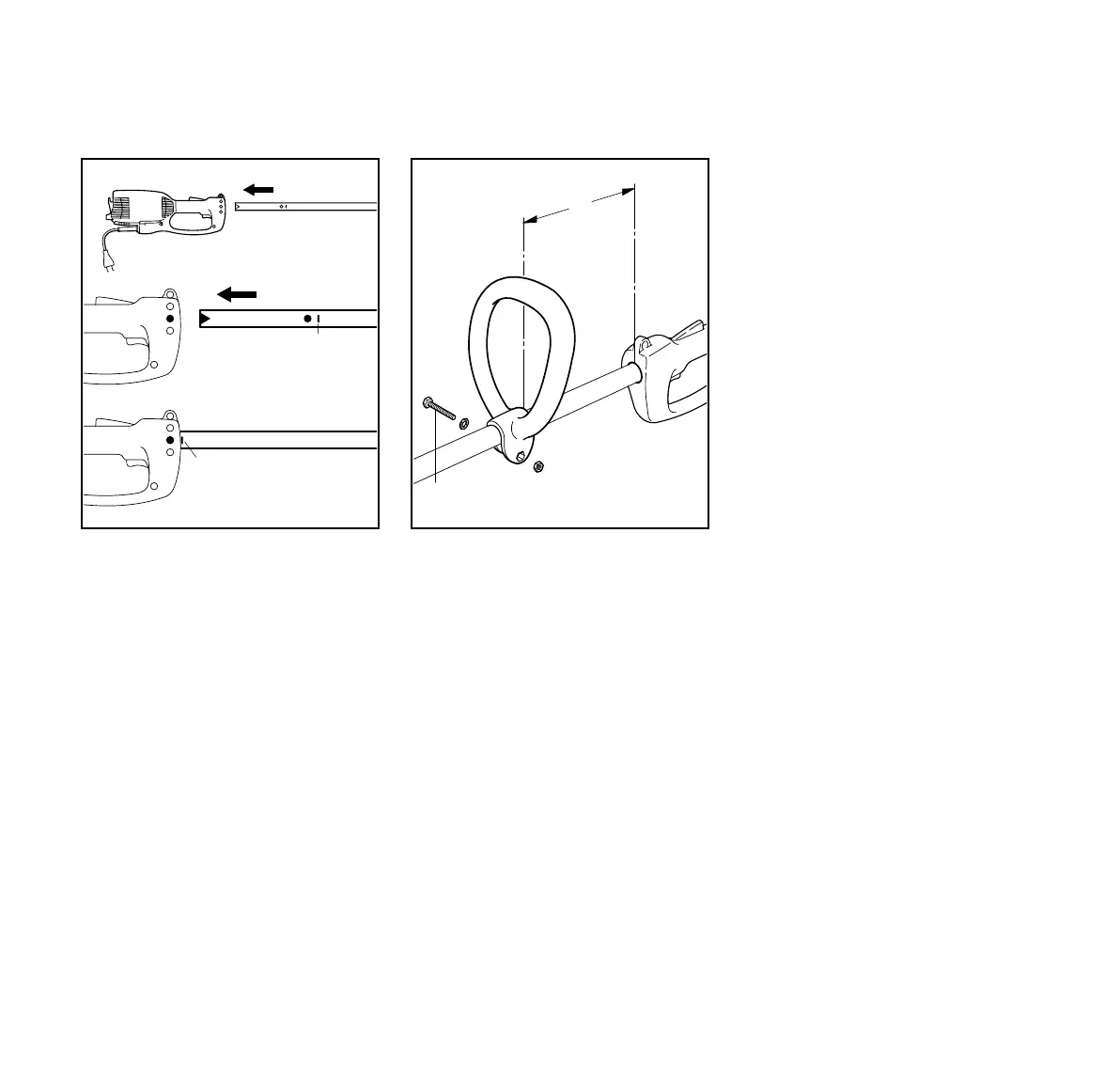

Mounting the Drive Tube
1
238BA016 KN
3
A
2
A
Mounting the Loop Handle
4
1
2
3
5
A
282BA001 KN
40 mm

Stihl FSE 71 Specifications

General

Type	Brush cutter
Head type	Nylon line
Handle type	D-loop handle
Product color	Orange, White
Sound power level	93 dB
Power cable length	0.5 m
Vibration emission	3.3 m/s²
Automatic line feed	Yes
Sound pressure level	82 dB
Cutting diameter (max)	350 mm
Power source	AC
AC input voltage	230 V

Weight and Dimensions

Length	1530 mm
Weight	4000 g
