Stihl HT 135 User Manual

HT 105, HT 134, HT 135
English
16

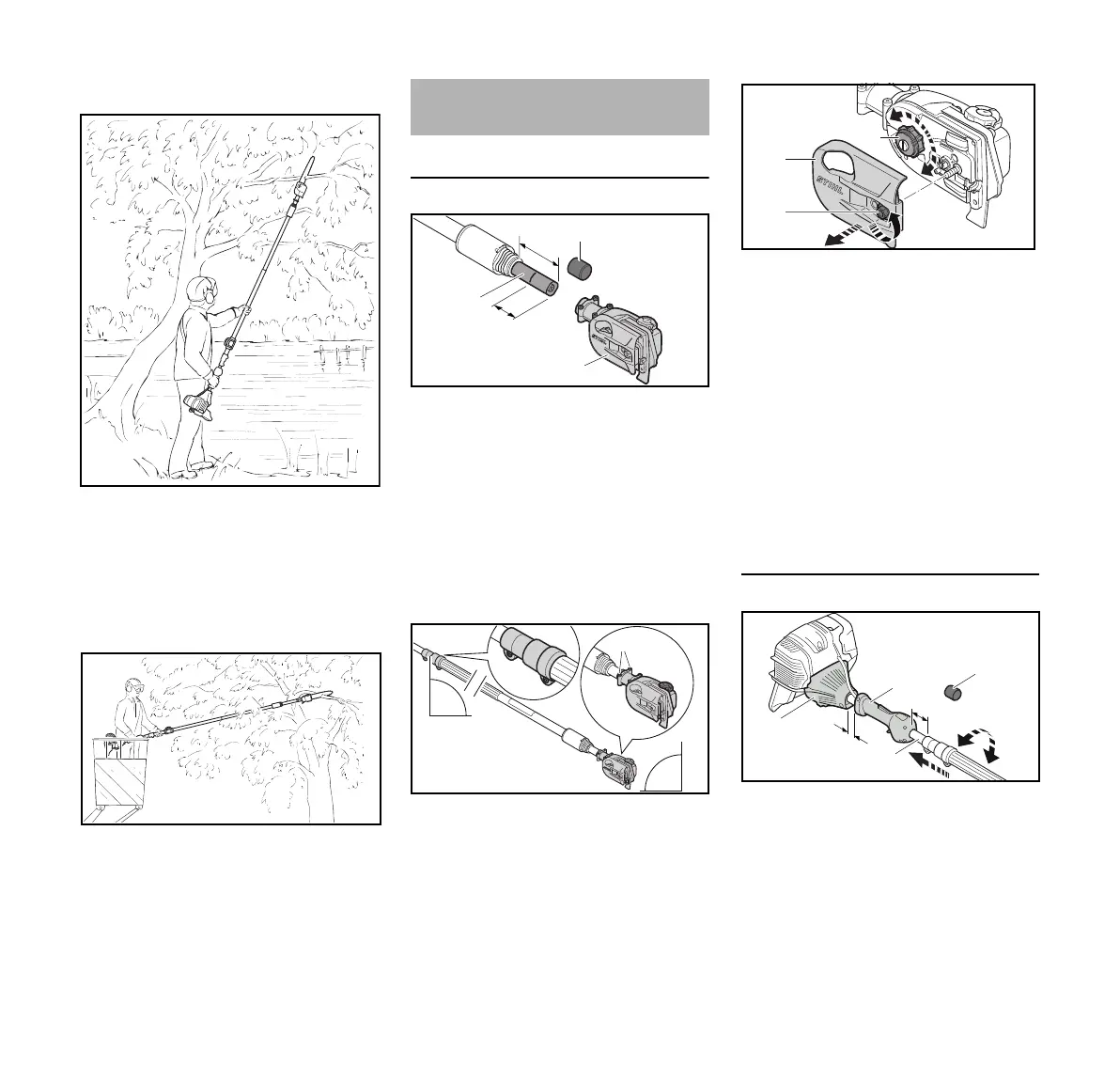

Cutting above obstacles
The machine's long reach makes it
possible to prune branches that are
overhanging obstacles, such as rivers or
lakes. The tool angle in this case
depends on the position of the branch.
Cutting from a lift bucket
The machine's long reach enables
cutting to be performed next to the trunk
without the risk of the lift bucket
damaging other branches. The tool
angle in this case depends on the
position of the branch.
Mounting the Gearbox
N Remove the cap (1) from the square
end of the drive tube (2).
N Adjust the length of the drive tube to
a = 3.9 in. (10 cm) (HT 105,
HT 135).
N Mark the drive tube at b = 2.4 in.
(6 cm).
N Push the gearbox (3) onto the drive
tube up to the mark b.
N Align the clamping sleeve (4) (with
the clamping screws on the
underside of the shaft) and the
gearbox (3) (with the oil cap facing
up) as shown.
N Tighten the screws (5).
If the gearbox cannot be pushed onto
the drive tube up to mark b:
N Remove the chain sprocket
cover (6) by turning the nut (7)
counterclockwise.
N Turn the chain sprocket (8) until you
can push the gearbox to mark b on
the drive tube.
N Replace the chain sprocket cover
and secure the nut after mounting
the bar and chain.
Mounting the Motor Housing (HT 105,
HT 135)
N Remove the cap (9) from the round
end of the drive tube (2).
N Rotate the drive tube until it can be
inserted through the control
handle (10) and into the motor
0000-GXX-1568-A0
0000-GXX-1569-A0
Assembling the Unit
b
1
2
3
a
0000098170_001
4
3
90°
90°
5
0000098528_001
7
6
8
0000098622_001
11
2
c
d
10
9
0000098171_002

Stihl HT 135 Specifications

General

Brand	Stihl
Model	HT 135
Category	Pole Saw
Language	English
