77MS 171, MS 181, MS 211

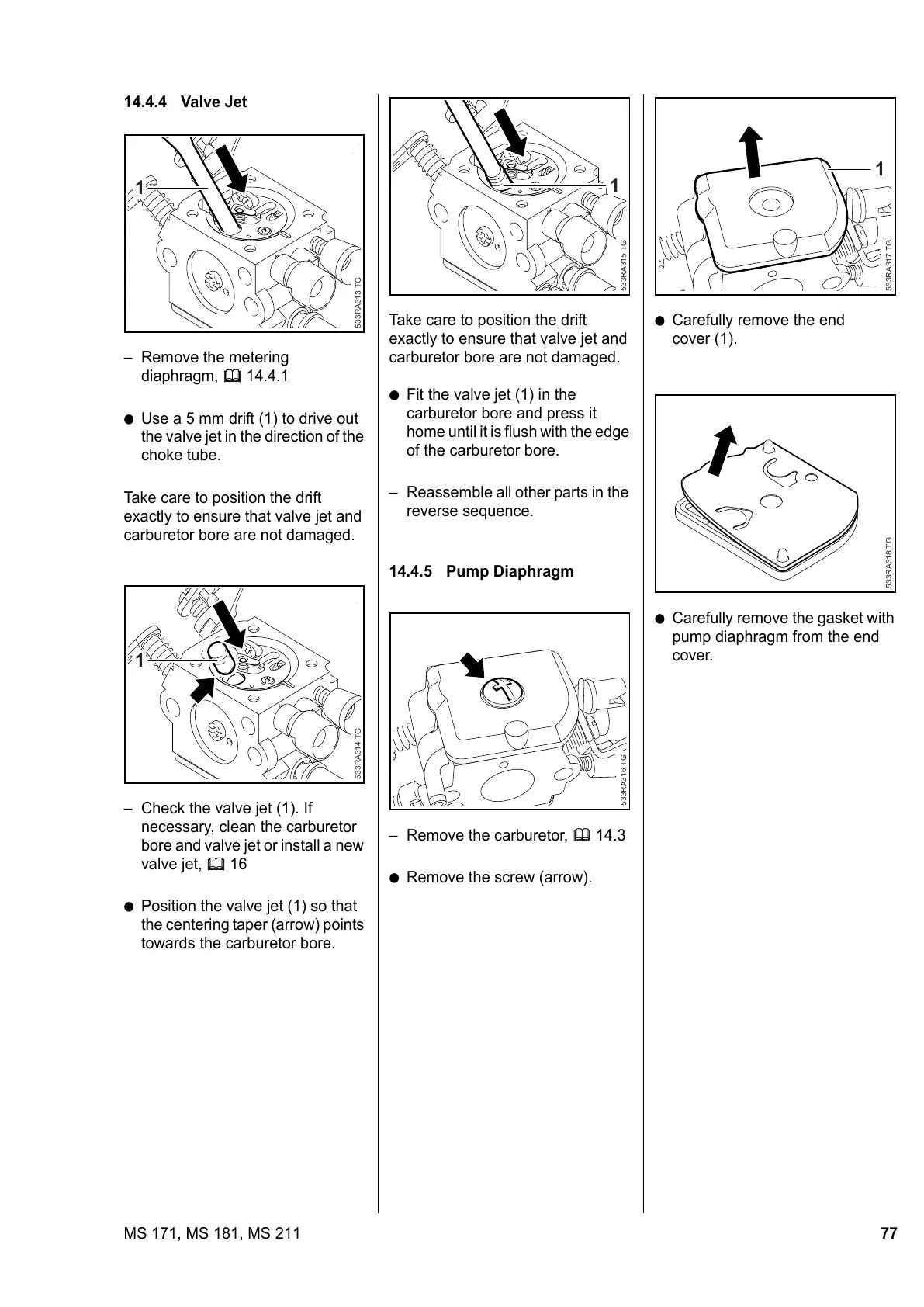

14.4.4 Valve Jet
– Remove the metering
diaphragm, b 14.4.1
: Use a 5 mm drift (1) to drive out
the valve jet in the direction of the
choke tube.
Take care to position the drift
exactly to ensure that valve jet and
carburetor bore are not damaged.
– Check the valve jet (1). If
necessary, clean the carburetor
bore and valve jet or install a new
valve jet, b 16
: Position the valve jet (1) so that
the centering taper (arrow) points
towards the carburetor bore.
1
533RA313 TG
1
533RA314 TG
Take care to position the drift
exactly to ensure that valve jet and
carburetor bore are not damaged.
: Fit the valve jet (1) in the
carburetor bore and press it
home until it is flush with the edge
of the carburetor bore.
– Reassemble all other parts in the
reverse sequence.
14.4.5 Pump Diaphragm
– Remove the carburetor, b 14.3
: Remove the screw (arrow).
1
533RA315 TG533RA316 TG
: Carefully remove the end
cover (1).
: Carefully remove the gasket with
pump diaphragm from the end
cover.
533RA317 TG
1
533RA318 TG
All manuals and user guides at all-guides.com

Stihl MS 181 Specifications

General

Idle speed	- RPM
Motor type	2-stroke motor
Chain pitch	3/8 \
Blade length	400 mm
Product color	Black, Grey, Orange
Chain tensioner	Yes
Motor speed (max)	10000 RPM
Fuel tank capacity	0.266 L
Engine displacement	31.8 cm³
Power source	Gasoline
Sound power level	112 dB
Vibration emission	3.5 m/s²
Sound pressure level	100 dB

Weight and Dimensions

Weight	43004300 g
