98 MS 171, MS 181, MS 211

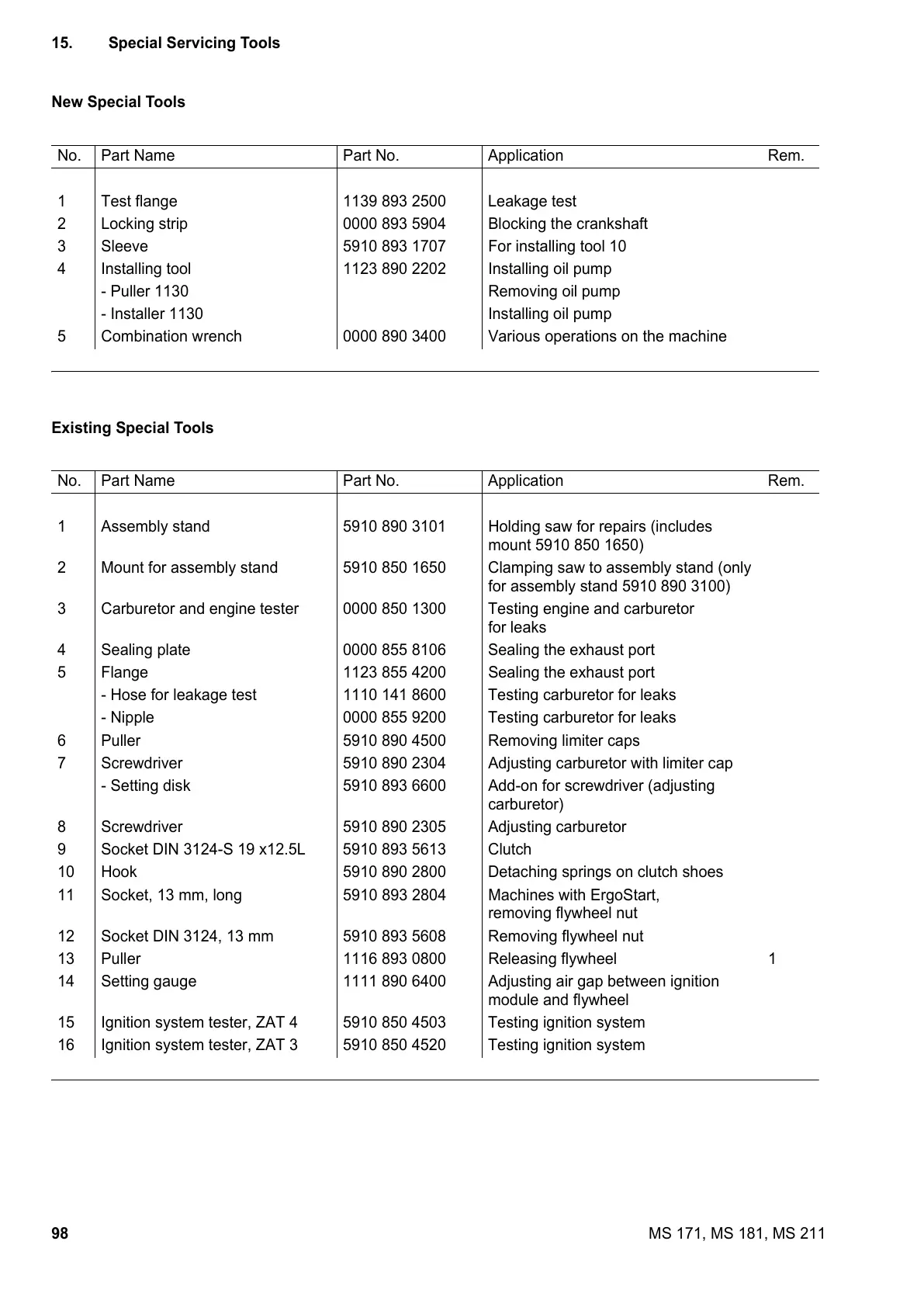

15. Special Servicing Tools
New Special Tools
Existing Special Tools
No. Part Name Part No. Application Rem.
1 Test flange 1139 893 2500 Leakage test
2 Locking strip 0000 893 5904 Blocking the crankshaft
3 Sleeve 5910 893 1707 For installing tool 10
4 Installing tool 1123 890 2202 Installing oil pump
- Puller 1130 Removing oil pump
- Installer 1130 Installing oil pump
5 Combination wrench 0000 890 3400 Various operations on the machine
No. Part Name Part No. Application Rem.
1 Assembly stand 5910 890 3101 Holding saw for repairs (includes
mount 5910 850 1650)
2 Mount for assembly stand 5910 850 1650 Clamping saw to assembly stand (only
for assembly stand 5910 890 3100)
3 Carburetor and engine tester 0000 850 1300 Testing engine and carburetor
for leaks
4 Sealing plate 0000 855 8106 Sealing the exhaust port
5 Flange 1123 855 4200 Sealing the exhaust port
- Hose for leakage test 1110 141 8600 Testing carburetor for leaks
- Nipple 0000 855 9200 Testing carburetor for leaks
6 Puller 5910 890 4500 Removing limiter caps
7 Screwdriver 5910 890 2304 Adjusting carburetor with limiter cap
- Setting disk 5910 893 6600 Add-on for screwdriver (adjusting
carburetor)
8 Screwdriver 5910 890 2305 Adjusting carburetor
9 Socket DIN 3124-S 19 x12.5L 5910 893 5613 Clutch
10 Hook 5910 890 2800 Detaching springs on clutch shoes
11 Socket, 13 mm, long 5910 893 2804 Machines with ErgoStart,
removing flywheel nut
12 Socket DIN 3124, 13 mm 5910 893 5608 Removing flywheel nut
13 Puller 1116 893 0800 Releasing flywheel 1
14 Setting gauge 1111 890 6400 Adjusting air gap between ignition
module and flywheel
15 Ignition system tester, ZAT 4 5910 850 4503 Testing ignition system
16 Ignition system tester, ZAT 3 5910 850 4520 Testing ignition system
