35MS 192 T

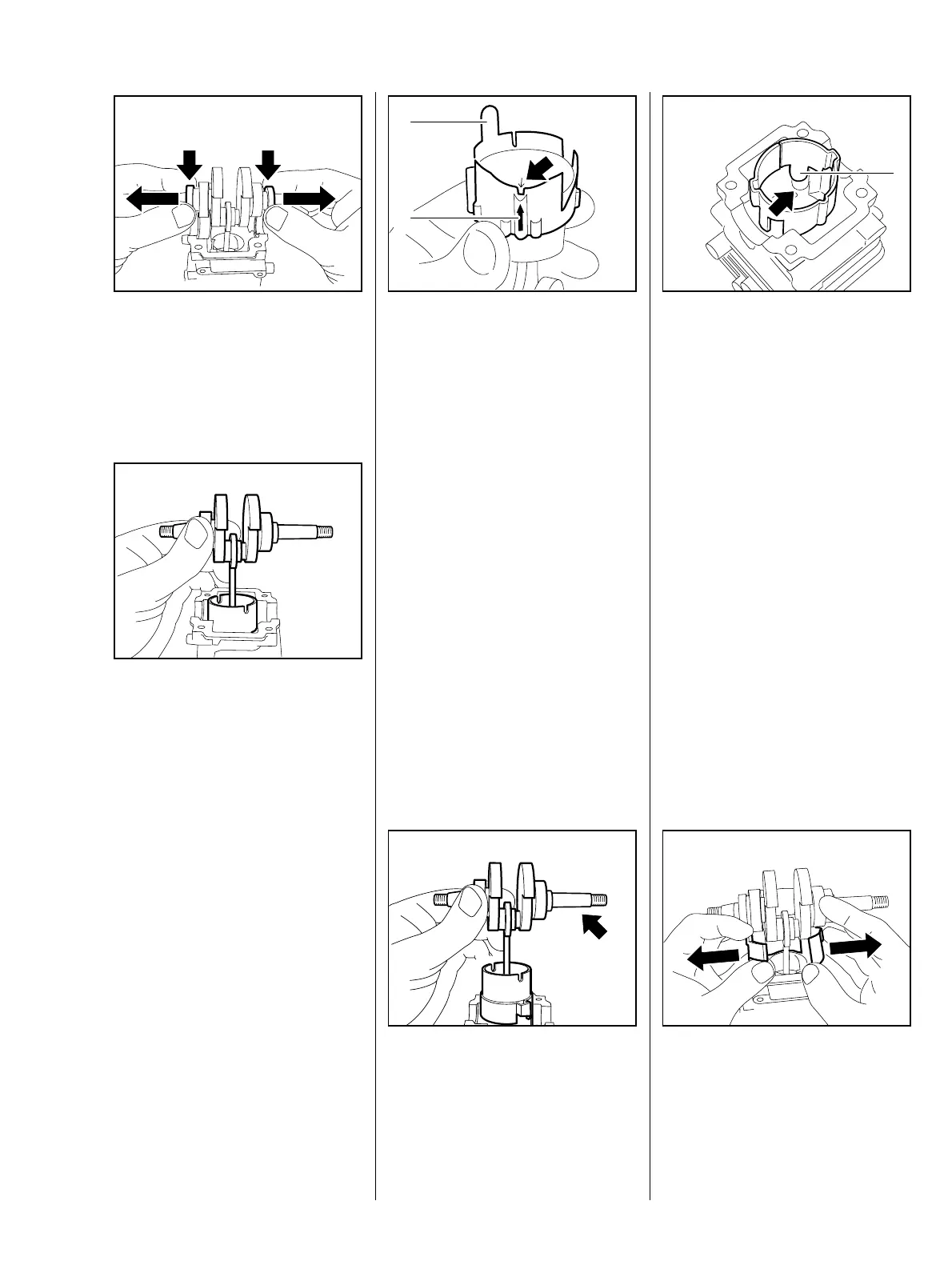

: Pull the oil seals (arrows) off the
crankshaft stubs.
217RA114 TG
: Carefully pull the crankshaft and
piston out of the cylinder.
217RA115 TG
– Coat the piston, piston rings and
inside of cylinder with oil.
: Use the clamping strap (1)
1137 893 2600 to compress the
rings around the piston.
The clamping strap (1) must be
217RA142 TG
1
2
fitted so that the arrow (2) points
towards the cylinder exhaust port
and is lined up with the arrow
(arrow) at the bottom of the piston.
– Check that the piston rings have
been installed correctly.
: Align the piston and crankshaft
before inserting them in the
cylinder.
The cylindrical crankshaft stub
(arrow) must point towards the
cylinder exhaust port.
217RA143 TG
For clarity, the piston is not shown in
this illustration of the clamping strap
fitted in the cylinder.
: Insert the clamping strap with
piston in the cylinder so that the
tab (1) on the clamping strap
engages the correspondingly
217RA144 TG
1
shaped recess (arrow).
When sliding the piston into the
cylinder, ensure that the clamping
strap firmly encloses the piston and
that none of the piston rings
protrudes.
– risk of breakage –
– Slide the piston into the cylinder,
the clamping strap moves
backwards at the same time.
: Remove the clamping strap.
217RA145 TG
8.5.2 Installation
