93MS 192 T

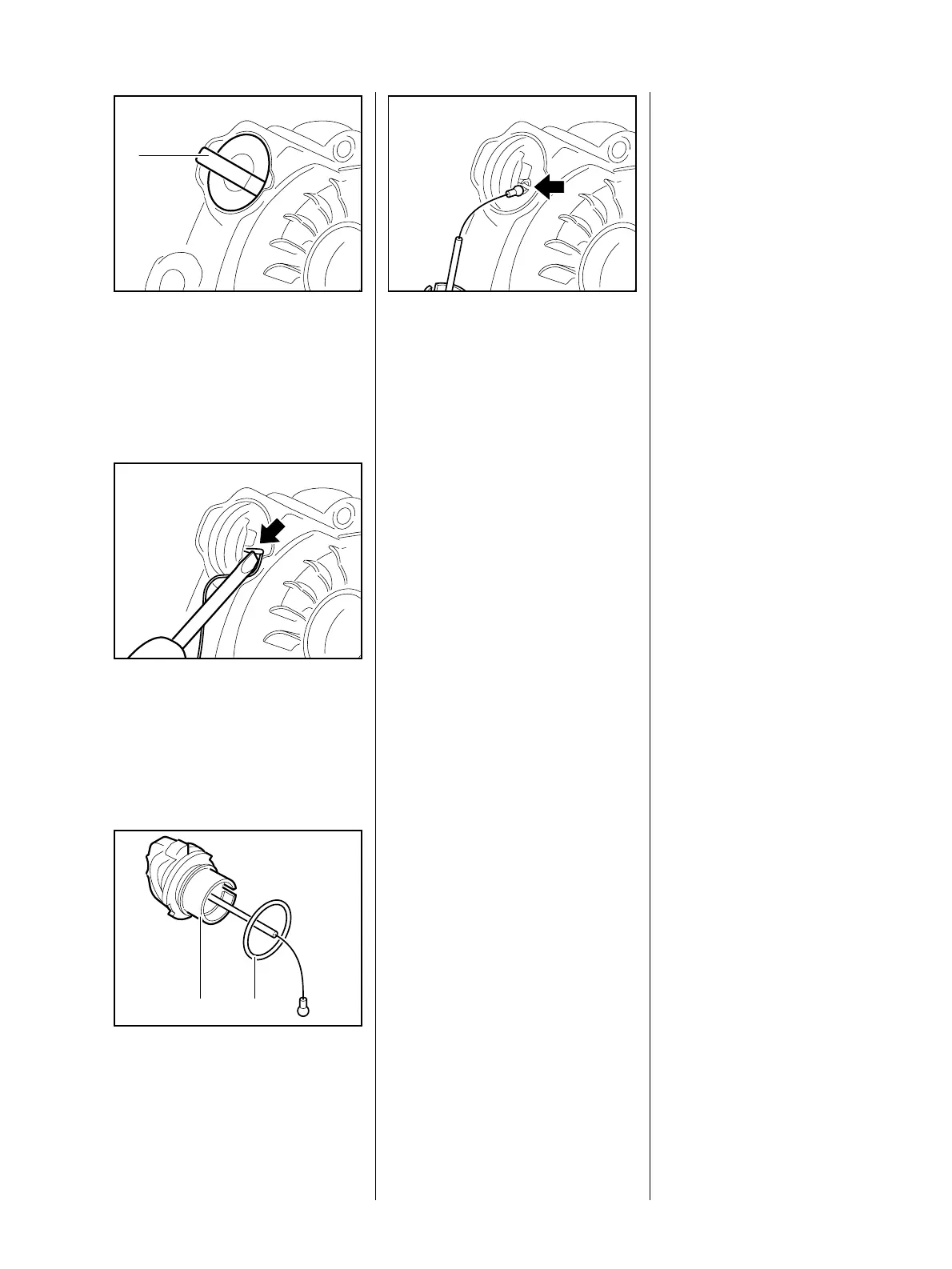

: Lift up the safety latch and
unscrew the tank filler cap (1).
1
217RA295 TG
: Prise the nipple out from inside
the tank (arrow).
217RA296 TG
: Examine the filler cap (1), cord
and sealing ring (2) and replace if
necessary.
The filler cap is supplied with cord
and sealing ring; the sealing ring is
available separately.
1
217RA297 TG
2
: Press the nipple into the mount
(arrow) inside the tank.
– Screw in the filler cap.
– Test for leaks.
– Reassemble remaining parts in
217RA310 TG
reverse order.
The tank housing is integrated into
the engine housing. The complete
engine housing must always be
replaced if the fuel tank, oil tank or
engine housing is damaged.
14.8.2 Fuel Tank Filler Cap 14.8.3 Tank Housing, Removing
and Installing
