78 MS 192 T

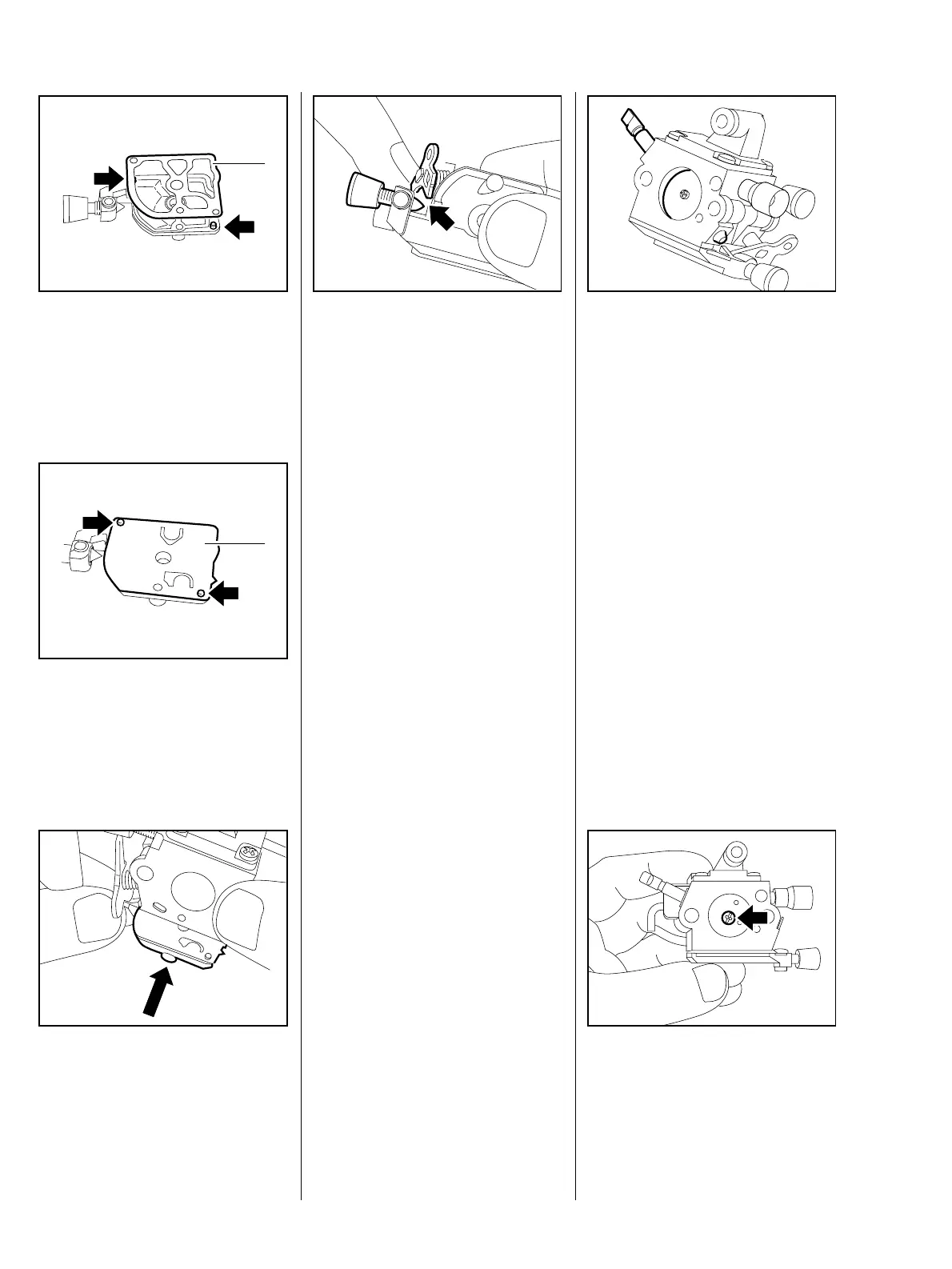

: Fit the gasket (1) and secure it
with the pegs (arrows).
217RA226 TG
1
: Place the diaphragm (1) over the
gasket and secure it with the
pegs (arrows).
217RA227 TG
1
: Position the end cover on the
carburetor body from below so
that the gasket and pump
diaphragm remain secured to the
end cover.
217RA198 TG
: Turn the throttle shaft lever back
and forth so that the end cover
with stop pin (arrow) can be fitted
without difficulty.
– Gently move the end cover back
and forth until the pegs on the
end cover are lined up with the
217RA199 TG
holes in the carburetor body.
– Insert and tighten down the
screw.
– Tightening torques, b 3.5
– Remove the carburetor, b 14.2
If actuation of the choke shaft is stiff
and/or the choke shutter cannot be
opened or closed properly:
Remove the choke shaft, then clean
the shaft and shaft guides with a
217RA266 TG
little standard solvent-based
degreasant not containing any
chlorinated or halogenated
hydrocarbons.
: Remove the screw (arrow) from
the choke shaft.
The screw thread may be damaged
when it is removed.
– Use a new screw –
217RA214 TG
14.3.5 Choke Shaft / Choke
Shutter
