31MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C
English / USA
: Disengage the chain brake: Pull
hand guard (9) back towards the
front handle.
: Turn the guide bar so that the
tensioning gear is facing you.
: Fit the chain over the sprocket (10).
: Fit the guide bar over the collar
screw (11), the head of the rear
collar screw must locate in the slot.
: Make sure the drive link tangs
engage the bar groove (see arrow)
and then rotate tensioning gear
counterclockwise as far as stop.
: Place the chain sprocket cover in
position and engage guide lugs in
recesses in engine housing at the
same time.

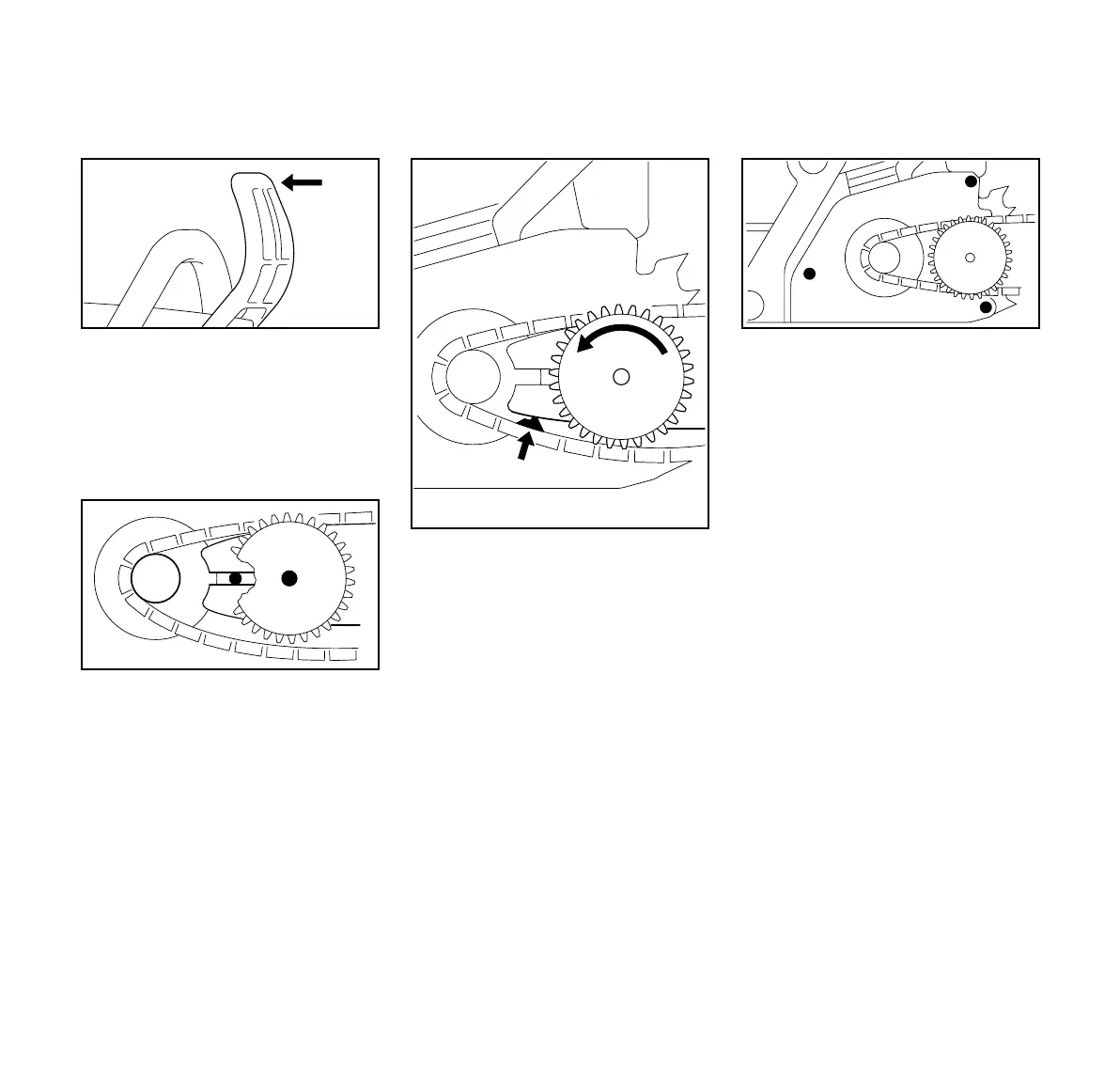

140BA005 KN
9
10
11
140BA006 KN
135BA011 KN
135BA012 KN
