54
English / USA
MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C

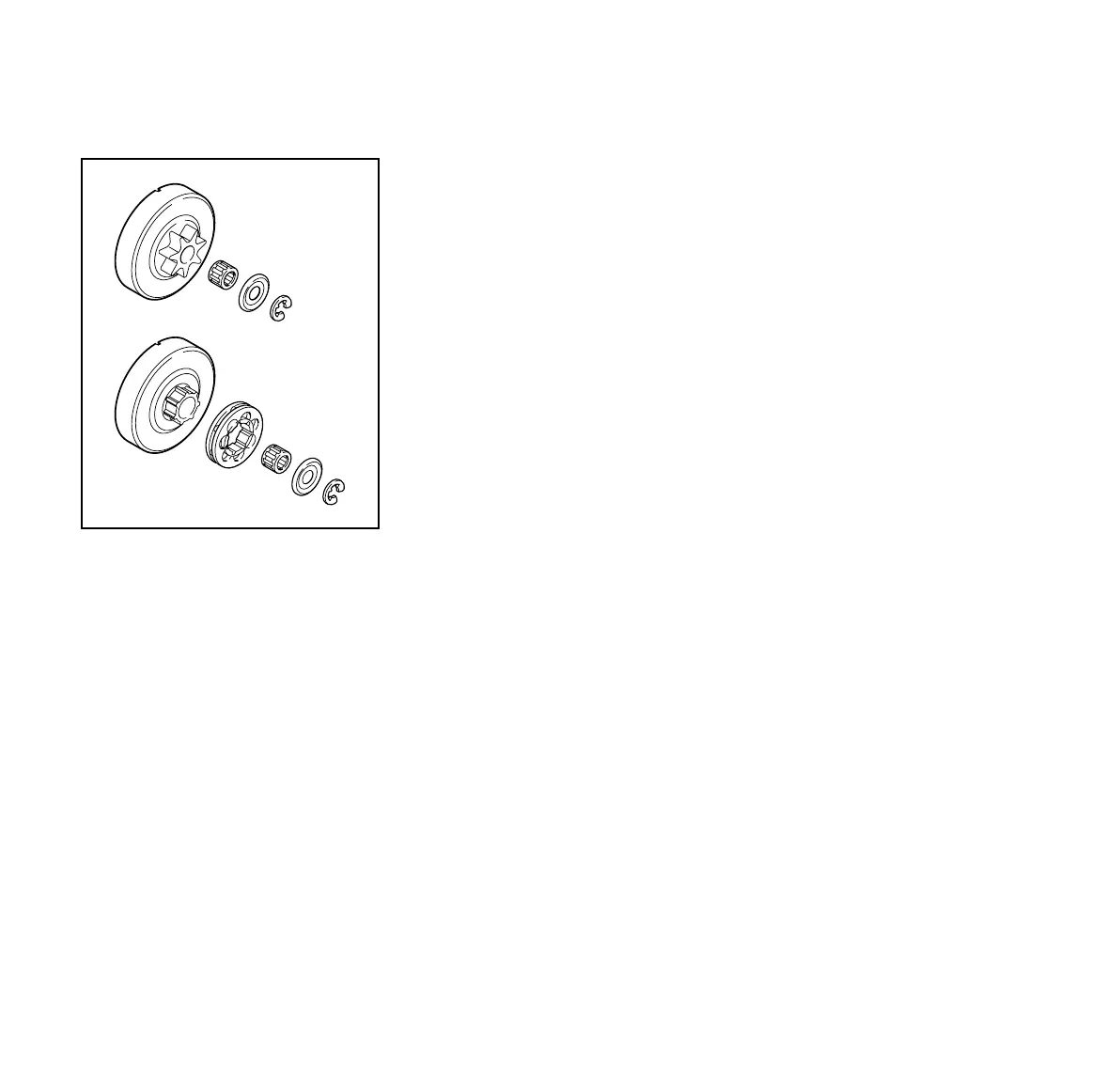

: Use a screwdriver to remove
the E-clip (1).
: Take off the washer (2) and rim
sprocket (3).
: Examine splines on clutch drum (4)
– if wear marks are severe, fit a new
clutch drum.
: Pull clutch drum or spur sprocket
(5) and needle cage (6) off the
crankshaft.
Installing spur sprocket /
rim sprocket
: Clean the crankshaft stub and
needle cage, and lubricate with
STlHL grease (“Special
Accessories”).
: push needle cage on to crankshaft
: After fitting clutch drum or spur
sprocket, rotate it about one turn to
engage oil pump drive.
: Fit rim sprocket with cavities facing
outward.
: Refit washer and E-clip on the
crankshaft.
001BA122 KN
1
2
4
5
6
1
2
3
6
