16 The Chain Brake
15.4.2 Filling the Chain Oil Tank
To fill the chain oil tank:
► Switch off the chain saw, @ 18.2.
► Engage the chain brake, @ 16.1.
► Remove the battery, @ 17.2.

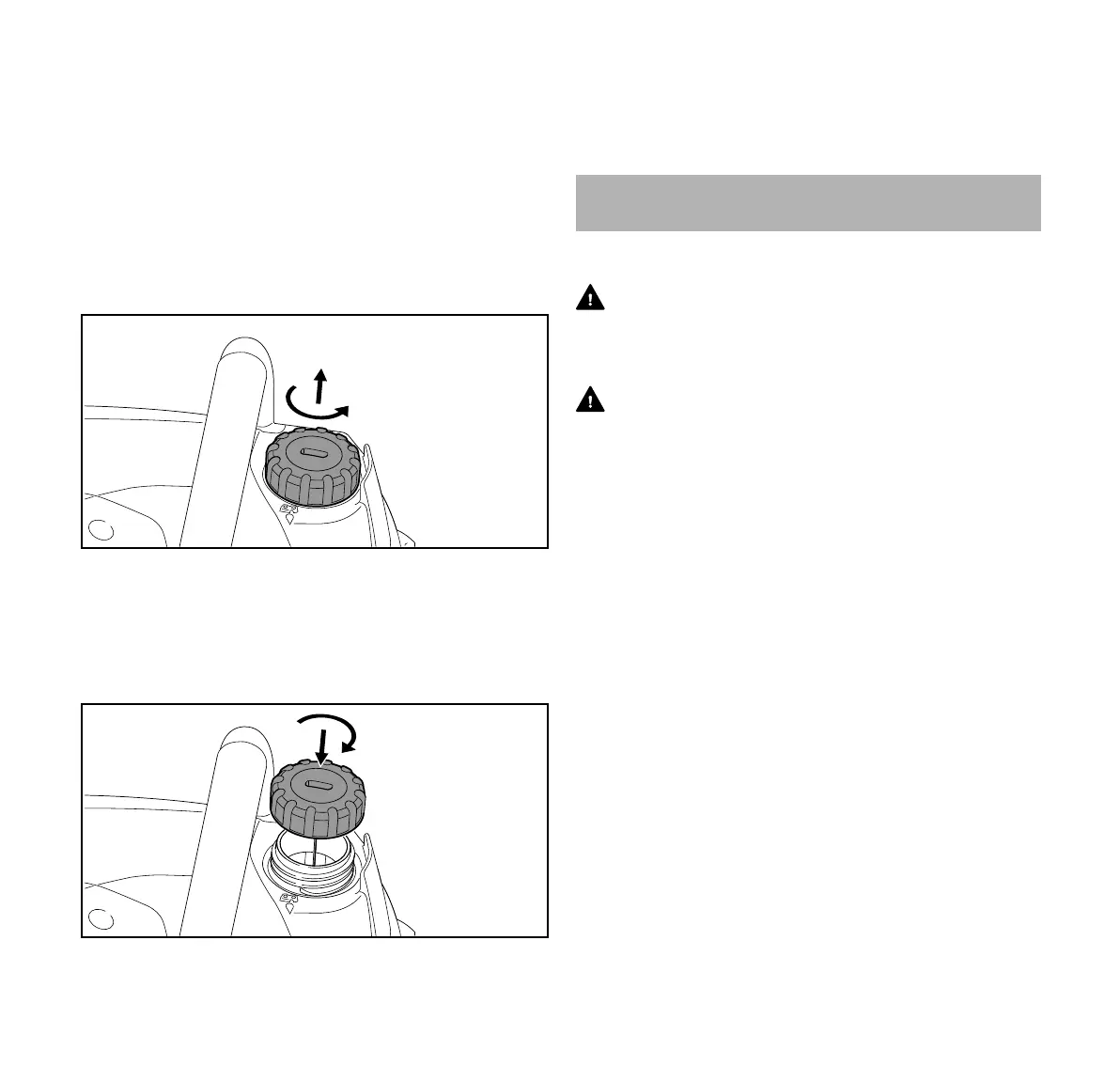

► Position the chain saw on a level surface with the oil filler
cap facing upwards.
► Clean the area around the oil filler cap with a slightly
dampened cloth.
► Turn the oil filler cap counterclockwise until it can be
removed.
► Remove the oil filler cap and fill the tank with chain oil.
► Take care not to spill chain oil while refilling the tank.
► Do not overfill the tank. Leave approximately 0.5 in.
(13 mm) of air space.
To close the tank:
► Position the oil filler cap on the oil tank filler neck and
press it down while turning it clockwise until it is tight.
16.1 Engaging the Chain Brake
WARNING
The chain brake will operate only if it has been properly
maintained and the front hand guard has not been modified,
@ 7.2.
WARNING
No chain brake device prevents kickback. This device is
designed to reduce the risk of kickback injury, if activated, in
certain kickback situations. For the chain brake to remain in
good working order, it must be properly maintained, @ 7.2.
In the event of a kickback, the chain brake is designed to
engage if the left hand contacts the front hand guard and
pushes it forward.
The chain brake is also designed to be activated by the
inertia of the front hand guard if the forces are sufficiently
high. When the brake is activated by inertia, the hand guard
accelerates toward the bar nose, even if your hand is not
behind the hand guard, e.g., during a felling back cut.
