0458-663-0121-A
4
English
3 Overview
1 Rotary control
The rotary control is used to set the working pressure
and water flow rate.
2 Connecting cord
The connecting cord connects the pressure washer to
the mains plug.
3Mains plug
The mains plug connects the connecting cord to a
socket.
4 Holder with clip
The holder serves to remove and store the connecting
cord and can be rotated. The clip attaches the mains plug
to the coiled connecting cord.
5 Trigger switch lockout
The trigger switch lockout blocks the adjustment of the
handle.
6Crank
The crank is used to turn the hose reel
7 Hose reel
The hose reel is used to roll up the high-pressure hose.
8 High-pressure hose
The high-pressure hose transports the water from the
high-pressure pump to the spray gun.
9 Guide opening
The guide opening guides the high-pressure hose from
the front onto the hose reel.
10 Connector
The connector connects the high-pressure hose with the
spray gun.
11 Rotary switch
The rotary switch is used to switch the pressure washer
on and off.
12 Dosing handle
The dosing handle is used to set the desired dosage of
cleaning agent.
13 Pressure gauge
The pressure of the high-pressure pump is indicated by
the pressure gauge.
14 Flap
The flap covers the supplied nozzles and cleaning
needle.
15 Connector
The connector is used to connect the water hose.
16 Carrying handle
The carrying handle is used to carry the pressure
washer.
17 Support
The supports are used to store the spraying equipment.
18 Handle
The handle is used when carrying and moving the
pressure washer.
19 Detergent container
The detergent container is used for cleaning with
cleaning agent.
# Rating plate with serial number

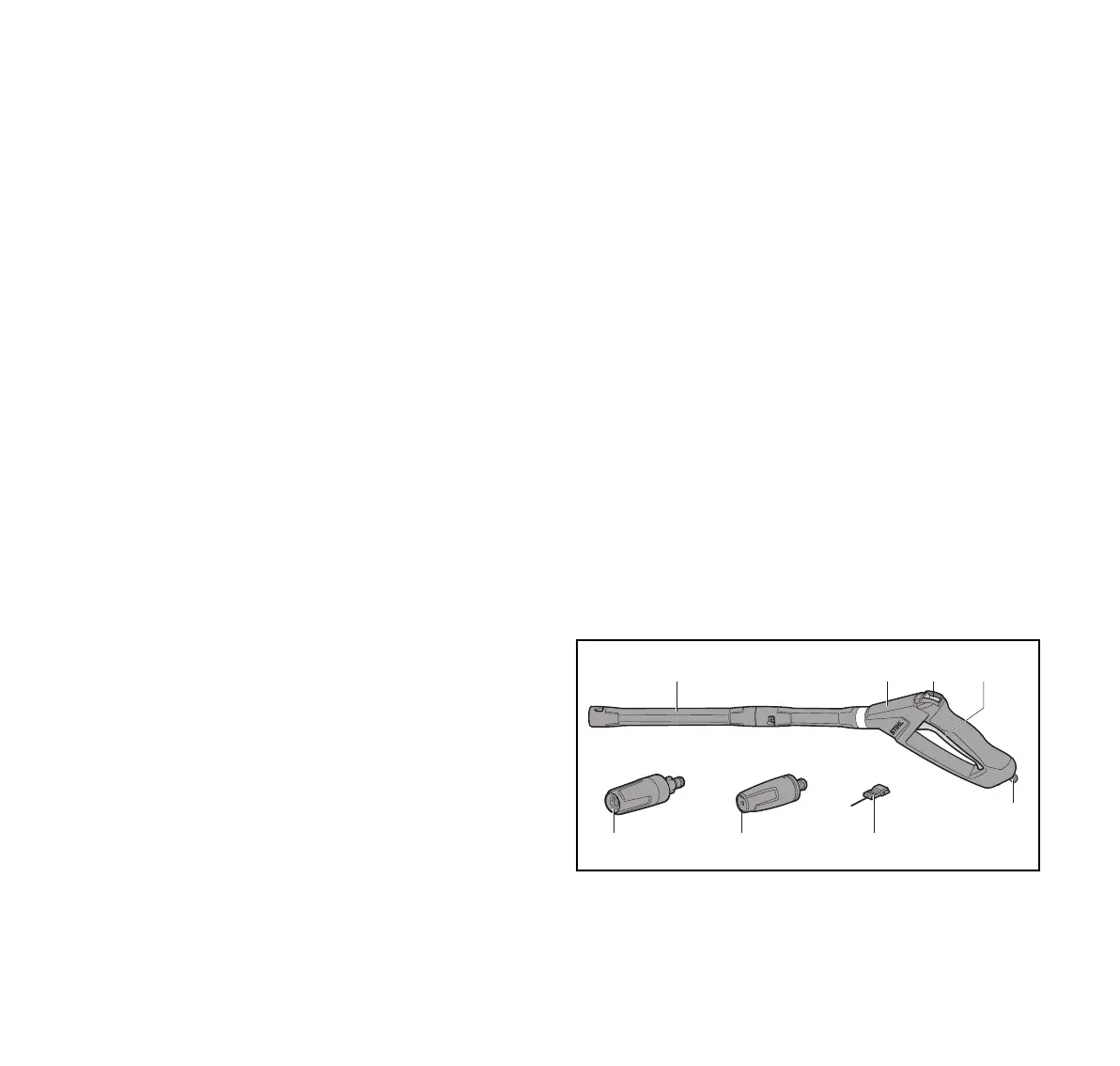

3.2 Spray attachment
1 Spray lance
The spray lance connects the spray gun with the nozzle.
1 2 3
4
5
78 6
0000-GXX-9164-A0
