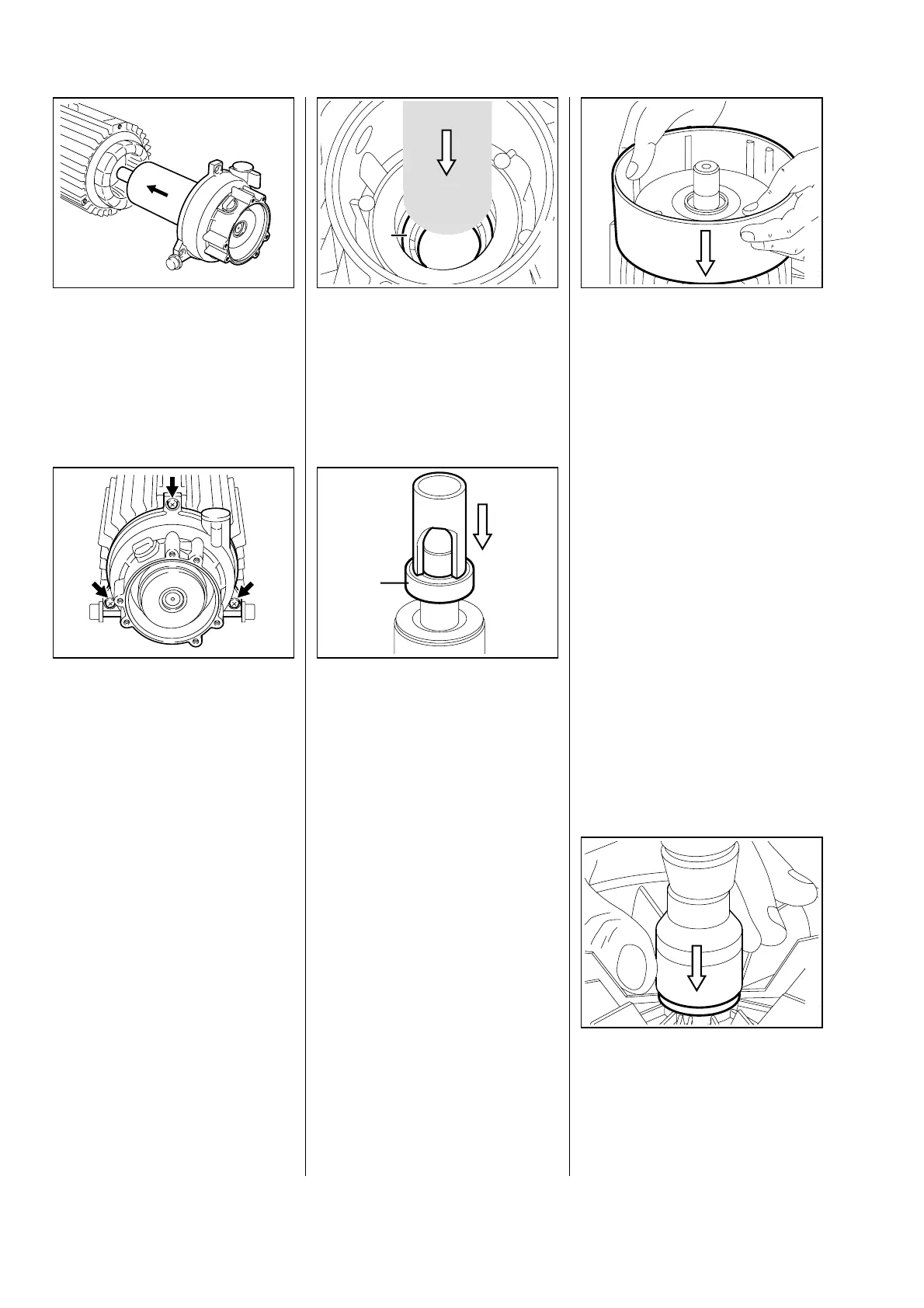

Insert rotor with drive housing in
stator and align in the original
installation position.
- Carefully drive the drive housing
home with a rubber hammer.
•
Turn in fastening screws.
Note: Tighten fastening screws
down alternately to avoid stressing
the housing.
- Tighten fastening screws down
with a torque of 7 Nm.
- Fit fanwheel on shaft and block it
with a screwdriver.
- Wet fastening screw with
Loctite 242 and tighten it
securely.
- Refit pump housing (see 7.4)
and valve block (see 7.3).
- Fill with oil (see chapter 11).
Reassemble remaining parts in
reverse order.
RE 160 K
•
Press oil seal (1) into drive
housing from the pump
side using assembly arbor
4112 893 2401. Open side
faces pump.
•
Press new ball bearings (1) onto
drive shaft with suitable tubing
(cut away in diagram).
- Oil sealing lip of oil seal.
- Press drive housing onto
drive-side ball bearing of rotor
(drive shaft with notch for feather
key).
- Insert rotor with drive housing
in stator and align in original
installation position (compare
markings).
- Turn in fastening screws (upper
screw with fastening clamp for
capacitor).
Note: Tighten fastening screws
alternately to avoid stressing the
housing.
- Tighten fastening screws down
with a torque of 7 Nm.
•
Place bearing cover on drive
shaft.
- Turn in fastening screws.
Note: Tighten fastening screws
alternately to avoid stressing the
housing.
- Tighten fastening screws down
with a torque of 7 Nm.
- Slide fanwheel onto shaft and
drive it home.
•
Slideclampingringonto
fanwheel shaft and drive it home
withasize30insertanda
rubber hammer.
Reassemble remaining parts in
reverse order.
621RA108 KN
621RA095 KN
621RA058 BL
1
621RA060 BL
621RA059 BL
1
621RA061 BL
22 RE 140 K, 160 K
