Stihl RMI 422 P User Manual

0478-131-3045-A
24
English 10 Installing the Robotic Mower
clearances and install restricted areas, reserve wire,
linking sections, secondary areas and corridors during
wire routing.

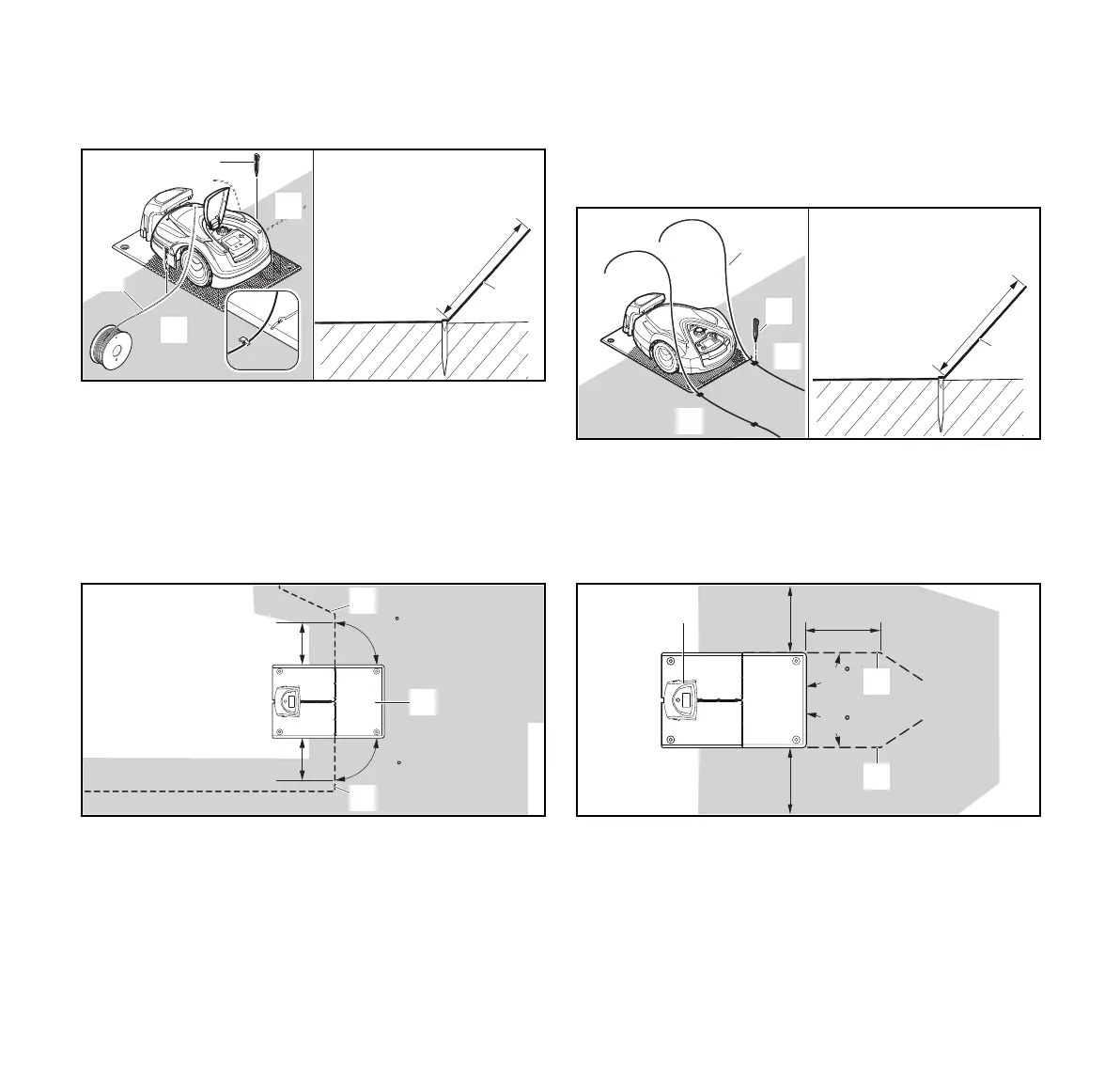

► Secure the perimeter wire(1) with a wire stake(2) on the
left side(A) or on the right side(B) of the docking station,
next to a wire outlet in the base plate.
► Leave a section of wire(1) with a length of approximately
a=4.92ft. (1.5m). This segment will later be connected
to the docking station.
To install the perimeter wire around an internal docking
station:
► Install the perimeter wire(2) on the left side and on the
right side of the docking station(1) in a straight line with a
length of a=23.6in. (60cm) and at right angles(90°) to
the base plate.
► If the "Passage" feature in the "Installation" settings is
activated (@ 15.3), this section of perimeter wire (a) must
be longer, at least a= 4.9ft. (1.5m).
To install the perimeter wire around an external docking
station:
► Secure the perimeter wire (1) with a wire stake (2) on the
left front side (A) or on the right front side (B) of the
docking station, next to a wire outlet in the base plate.
► Leave a section of wire(1) with a length of approximately
a=6.56 ft. (2m). This segment will later be connected to
the docking station.
► Install the perimeter wire(2) in front of and behind the
docking station(1) with a clearanceof
a=19.7in.(50cm) and at right angles(90°) to the base
plate.
► Install a corridor, leaving a minimum clearance of
b=17.3in. (44cm) to the side of the base plate.
a
A
B
1
2
1
0000-GXX-4384-A1
90
a
a
90
1
2
3
0000-GXX-3353-A0
1
a
1
2
B
A
0000-GXX-5348-A1
b
b
a
3
90
90
1
1
0000-GXX-3354-A0
