SG 51, SG 71
English
7

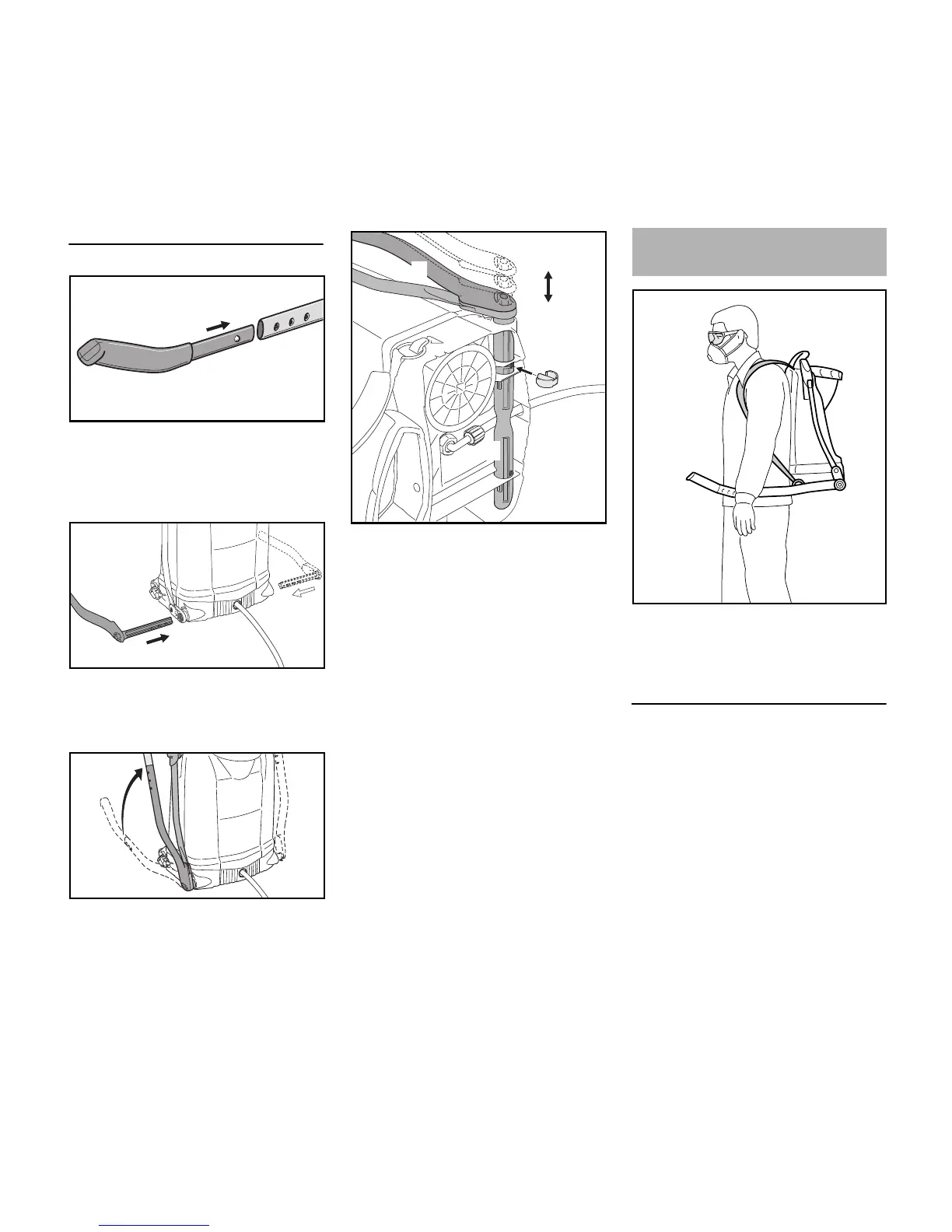

Mounting the Lever
The length of the handle (1) can be
adjusted (A, B, C) to suit the operator.
N Push the handle (1) into the lever
(2).
The lever can be mounted on the left or
right of the unit.
N Push the lever (2) into the shaft (3).
N Swing the lever (2) upwards.
N Lay the unit on its side.
The position of the lever (2) can varied to
suit the operator’s size.
N Set the distance (A, B or C) as
required.
N Insert retaining pin (4) in the hole in
the shaft (5) to secure the lever (2).
N Adjust the harness straps so that
the backplate fits snugly and
securely against your back.
Adjusting Height of Harness Straps
The harness straps can be adjusted to
suit your physique.
A
B
C
1
2
0000-GXX-2200-A0
0000-GXX-2201-A0
2
3
0000-GXX-2202-A0
2
4
0000-GXX-2203-A0
2
A
B
C
5
Harness
8014BA029 KN
