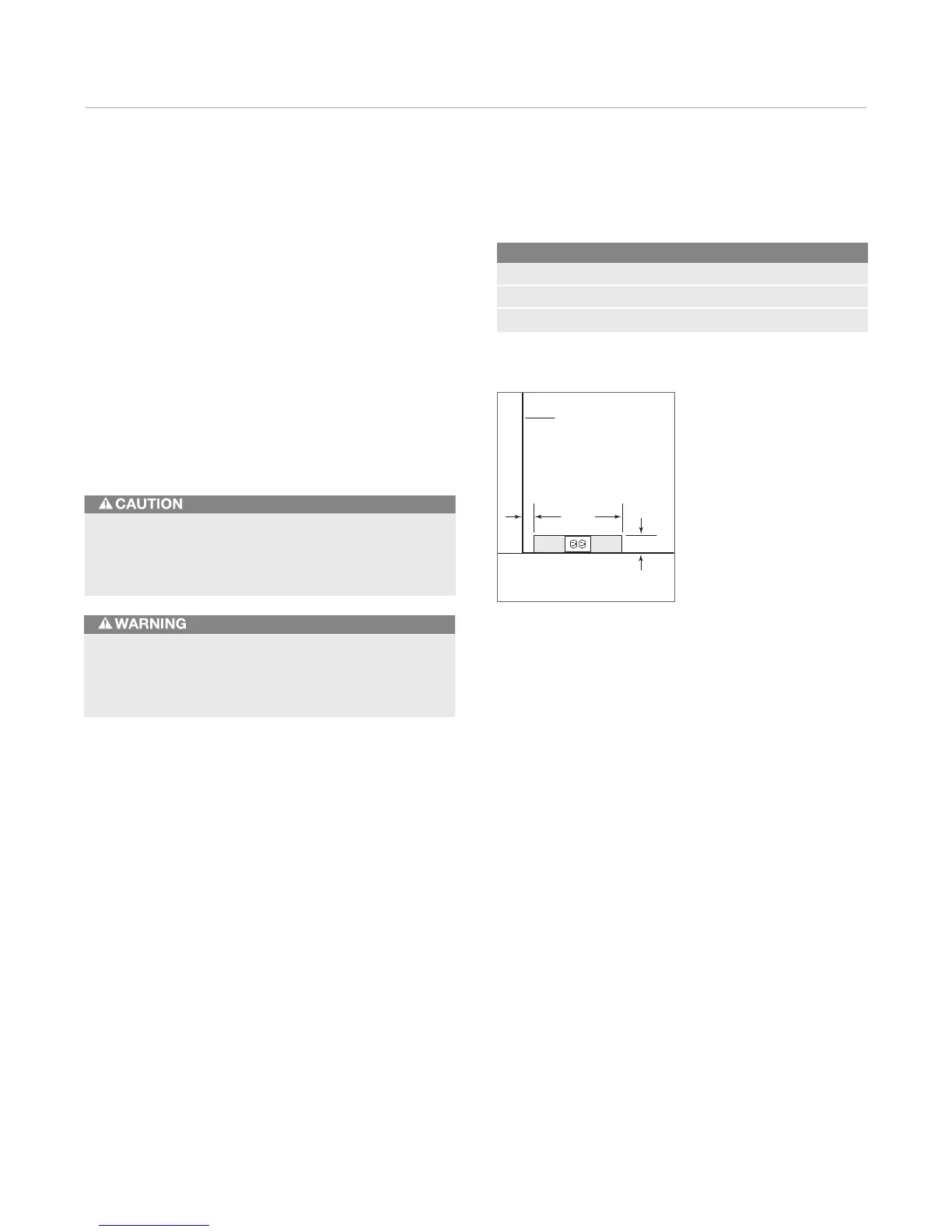

Models 424G and 424FSG Installation 6
Electrical Requirements
F
or models 424G and 424FSG, the electrical supply
should be located within the shaded area shown in the
illustration. Follow the National Electrical Code and local
codes and ordinances when installing the receptacle. A
separate circuit, servicing only this appliance is required.
A ground fault circuit interrupter (GFCI) is not recom-
mended and may cause interruption of operation.
IMPORTANT NOTE: For model 424G, the electrical outlet
must be placed so the grounding prong is to the right of
the thinner blades. The outlet must be flush with the back
wall.
Do not use an extension cord or two-prong adapter.
Electrical ground is required on this appliance. Do not
remove the power cord ground prong.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
FRONT VIEW
15
1
/2"
(394)
3" (76)
2" (51)
LEFT SIDE
OF OPENING
Location of electrical supply.
The outlet must be checked by a qualified electrician to
be sure that it is wired with the correct polarity and is
properly grounded.
