COMPONENT INFORMATION
2-14
Compact Ice Maker Assembly
Model 550 Prior to Serial Number
M/P681166, and between Serial Numbers
M/P681565 to M702716/P700765
The ice maker assy. linkage roller contacts the
back of the the ice bucket and raises or lowers the
ice level arm, when the ice bucket is pushed in or
out. Ice production stops when the bucket is
removed.
NOTE: If the shut-off arm on the right hand side
of the ice maker is not activating the shut-off
micro switch, the shut-off arm should be manually
adjusted toward the ice maker until contact is
achieved.
Modular Ice Maker Assembly
Model 511, 550 Between Serial Number
M/P681166 to M/7681565, and starting with
Serial Number M702716/P700765
The ice bucket is located in the top left rear corner
of the top freezer basket (Figure 2-38). A tab on
the rear left corner of the bucket activates the ice-
maker switch. If the ice bucket is out of position,
ice production will stop.
NOTE: If the ice maker stops making ice, verify
ice bucket is in position and check the shut-off
arm to see if it is stuck in the up (off) position.
The ice maker is located in the upper left corner of
the freezer compartment and secured to the side
wall by two screws above the ice maker and one
screw below it (Figure 2-39).
Figure 2-38. Ice Bucket Location
Models 511, 550
WARNING
Always disconnect electrical power to equip-
ment before attempting repairs.
CAUTION
Do not manually advance the ejector arms or
drive gear or the main assy. will be destroyed.

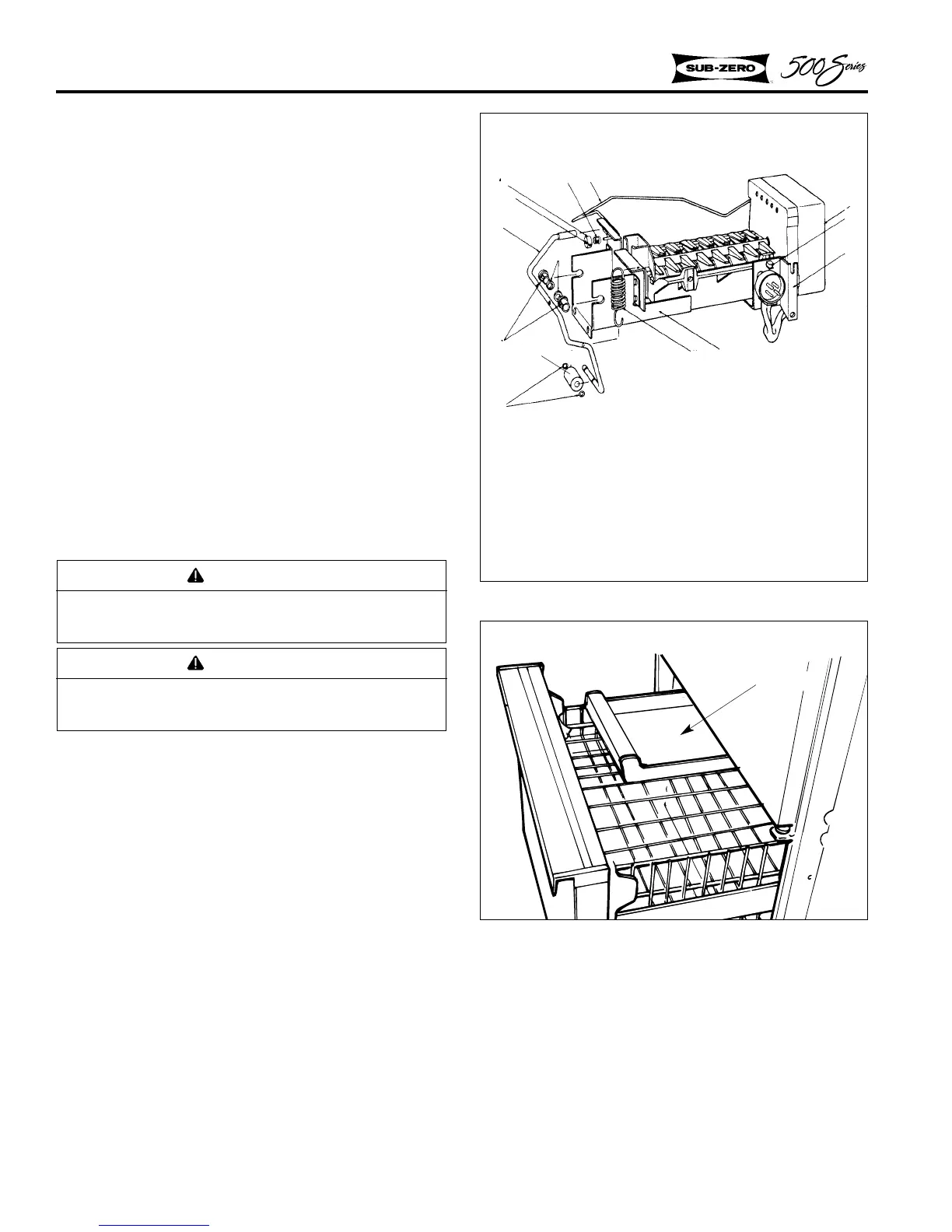

Figure 2-37. Compact Icemaker
Models 550
1. Ice Maker Assy.
2. Shut-off Arm
3. Snap Bushing
4. Shaft Collar
5. Setscrew, #8-32 x 3/16
6. Nylon Washer
7. Snap Bushing, 3/8 x 3/4
9
7
8
6
5
4
3
2
13
12
11
10
14
1
8. Ice Maker Arm Guide
9. Plastic O-ring
10. Roller, 3/4 x 1/4 x 1
11. Extension Spring
12. Sensor Return Assy.
13. Ice Maker Bracket
14. Screw Grommet
Ice Bucket
To Next Page
