Subaru EA190V Service Manual

20

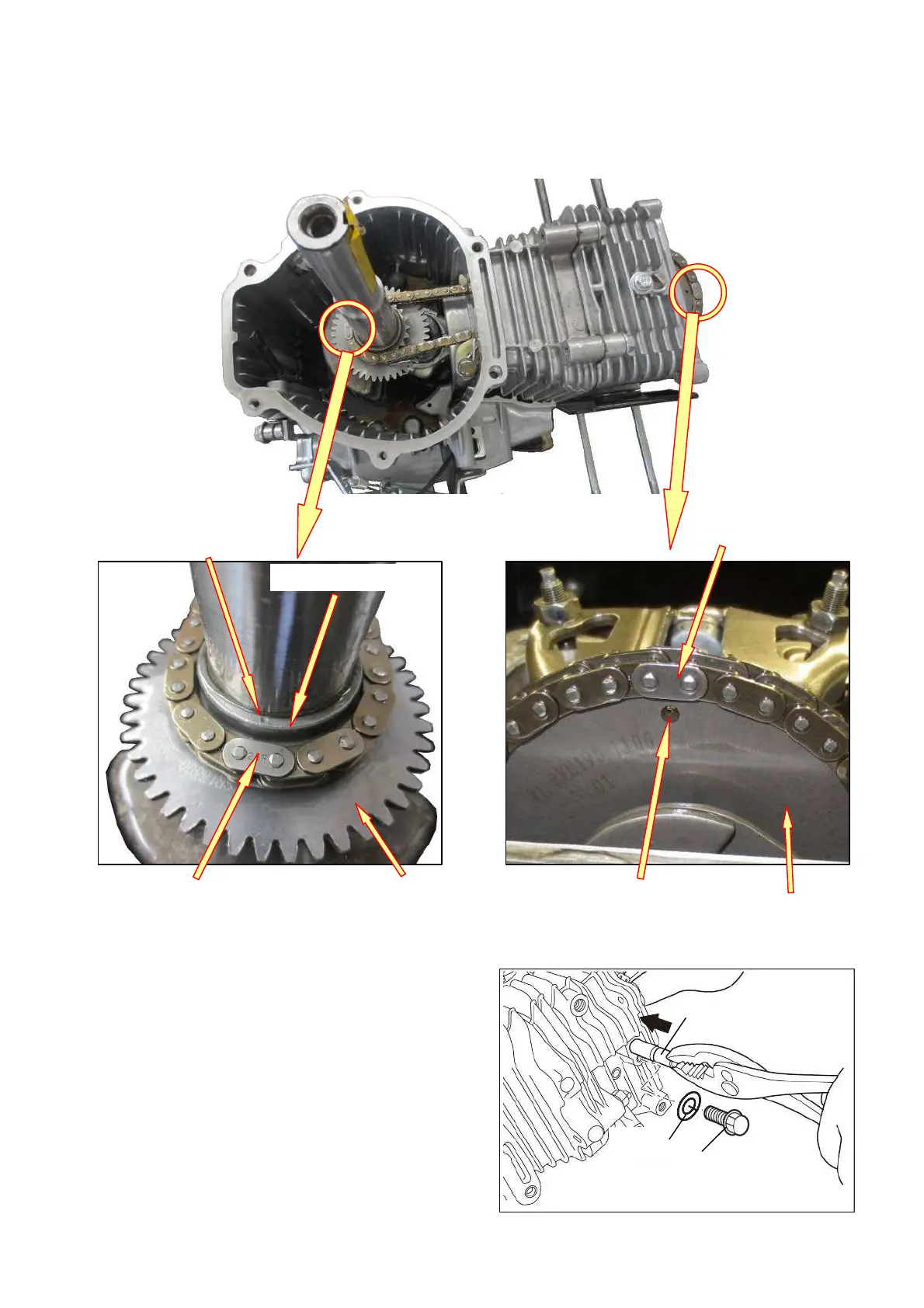

3-8 Setting the timing chain
・Align the timing mark on the crankshaft sprocket with the mark plate of the timing chain.
・Align the timing mark hole on the camshaft sprocket with the mark plate of the opposite end of the
timing chain.
Mark plate
Mark plate
Timing mark hole
*The mark plate does not
have a camshaft side or
crankshaft sprocket side.
Sprocket for governor gear
Camshaft sprocket
Pin (Camshaft)
Washer
M5 x 8 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
C
rankshaft
sprocket
Timing mark

Subaru EA190V Specifications

General

Compression Ratio	8.5:1
Lubrication System	Splash
Ignition System	Transistorized Magneto Ignition
Starting System	Recoil Starter
Oil Capacity	0.6 liters
Fuel Type	Unleaded gasoline
Engine Oil Type	SAE 10W-30
Engine Type	4-Stroke, Air Cooled, OHV
Fuel Tank Capacity	3.6 L
