35
Disassembly/reassembly：

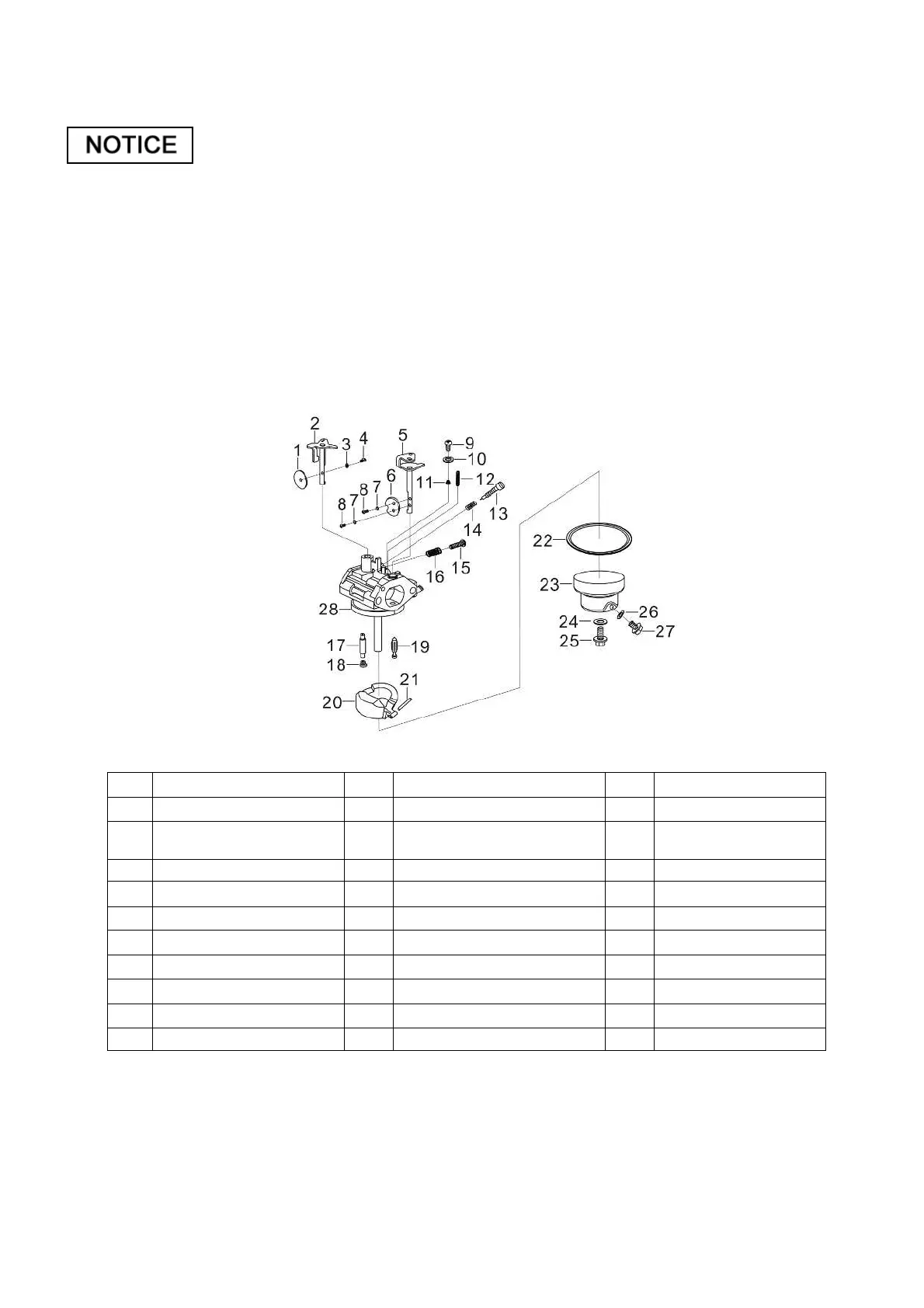

Fist disassemble air cleaner, and disassemble the carburetor as shown on the above figure.
· Before reassembling, check the carburetor thermal gasket, carburetor gasket, and air cleaner gasket for
damaged, please replace it if necessary. Please pay attention to assembling direction.
● Carburetor
Wash the carburetor in the clean place, first, clean the outside surface, and wash the inside the parts with special
carburetor detergent or industrial gasoline.
Exception for washing impurities, also wash the gasoline colloid on the part surface. Blow the washed parts clean with
compression air, and don’t use cloth and paper against recontaminations.
Don’t use the steel wire and other hard material to open the blocked hole to prevent carburetor performance from
changing holes diameter. Use the gasoline and compression air to clean it.
NOTICE:
・Loosen the drain bolt and completely drain the fuel out before installing carburetor.
・No fire
No.
Description No.
Description No.
Description
1 Throttle valve 11 Pilot jet 21 Float pin
2 Throttle valve shaft 12 Choke stopper spring 22
Float chamber sealing
ring
3 Small washer-A class 13 Pilot screw 23 Float chamber
4 cross pan head screw 14 Pilot screw spring 24 Sealing ring
5 Choke shaft 15 Throttle stop screw 25 Oil cup bolt
6 choke 16 Screw spring (option) 26 washer
7 Small washer-A class 17 Main nozzle 27 Oil drain plug
8 Cross pan head screw 18 Main jet 28 Carburetor
9 Cross pan head screw 19 Float valve
10
Gasket 20 float
