33) ENGINE OIL
Refill engine oil and start the engine.
Engine oil will be lubricated oil passages
and oil filter. Check the engine oil level and
refill again to the upper level of oil level
gauge.
32) FINAL CHECK
Be sure to check loosen bolts and nuts, and also electric wiring connections.
Oil Capacity
1.55 liter (0.41 U.S. gal.)
4-5 BREAK-IN OPERATION
An engine that has been completely overhauled by being fitted with a new piston, rings, valves
and connecting rod should be thoroughly RUN-IN before being put back into service. Good
bearing surfaces and running clearances between the various parts can only be established by
operating the engine under reduced speed and loads for a short period of time.
While the engine is being tested, check for oil leaks.
Make final carburetor adjustment and regulate the engine operating speed.
NOTE ;
* Check the oil level with the oil gauge inserted.
* Use “SE” (API classification) or higher grade
engine oil.

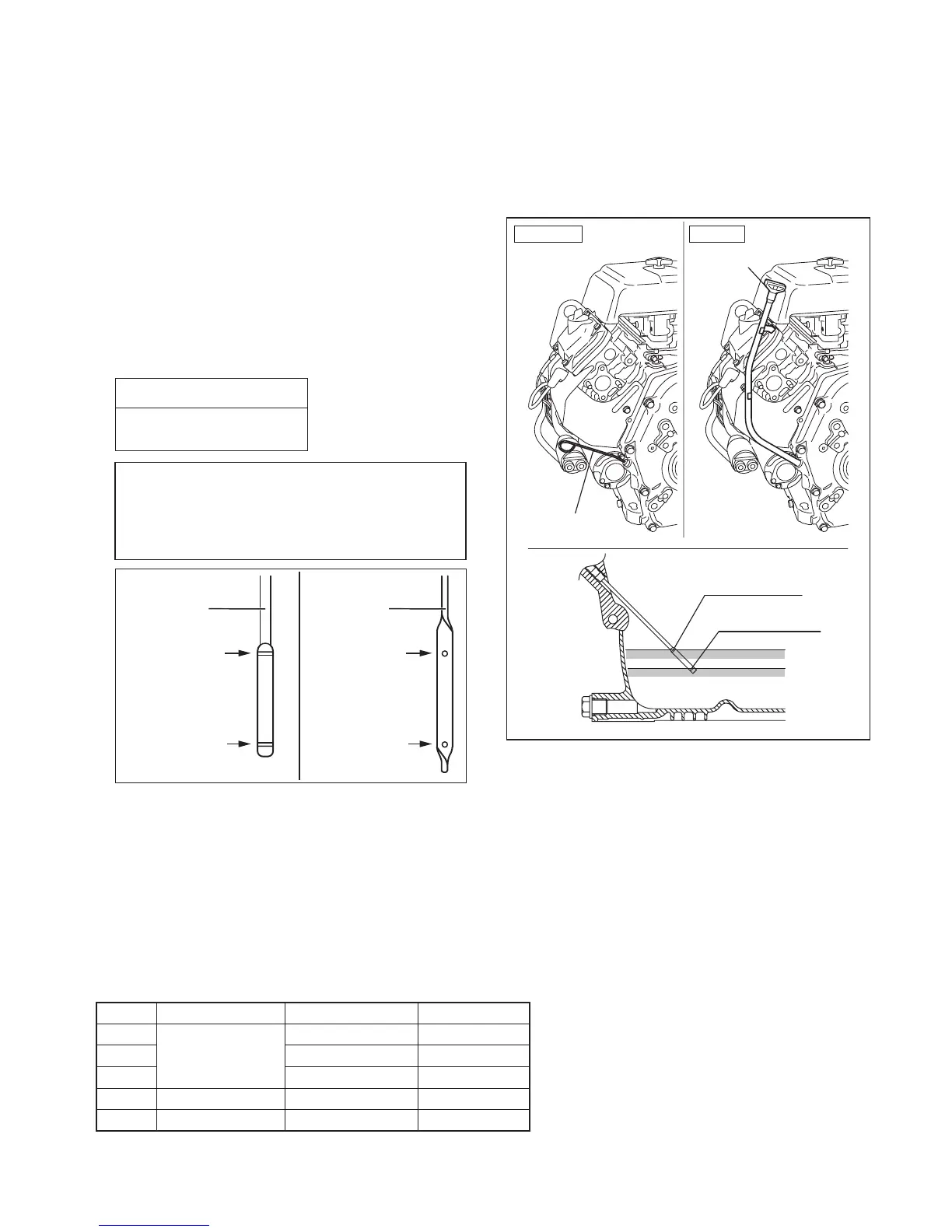

OIL GAUGE
UPPER LEVEL
LOWER LEVEL
OIL GAUGE
UPPER LEVEL
LOWER LEVEL
833(5/(9(/
/2:(5/(9(/
2,/*$8*(
2,/*$8*(
Standard Option
STEP EH72 FI Engine speed (rpm) Time (minute)
1
No Load
2500 10
2 3000 10
3 3600 10
4 7.5kW (10.0HP) 3600 30
5 14.9kW (20.0HP) 3600 30
