2 OF 12
PART NUMBER
H001SXC100
ISSUE
-
DATE
10 Jan 2018
SUBARU OF AMERICA

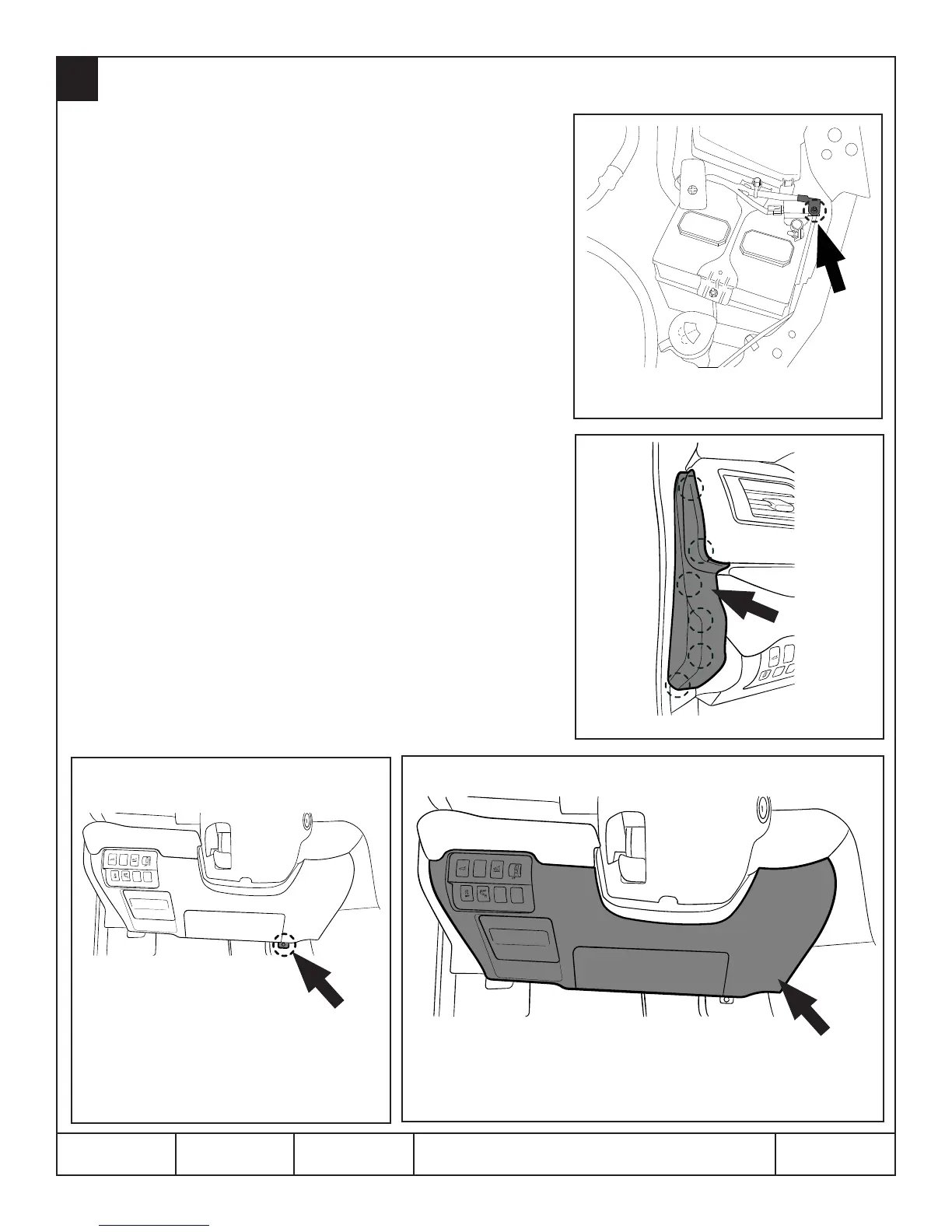

1. Using a 10mm socket/ratchet, disconnect the negative battery
terminal. (FIGURE A)
NOTE: Do not disconnect the battery cable from the battery
post.
NOTE: DO NOT PROCEED TO THE NEXT STEP FOR ONE (1)
MINUTE TO ALLOW TIME FOR THE AIRBAG POWER SUPPLY
TO DISCHARGE.
2. Using a panel removal tool, carefully remove the left side dashboard
panel by starting at the top and working downward to disengage six
(6) pressure clips. (FIGURE B)
3. Using a Phillips screwdriver, remove one (1) Phillips screw securing
the lower dashboard panel on the lower right side of the dashboard
panel. (FIGURE C)
4. Using a panel removal tool, carefully remove the driver’s side
dashboard panel by pulling straight out to disengage seventeen (17)
pressure clips. Unplug all connectors attached to the dashboard
panel. (FIGURE D)
4
VEHICLE PREPARATION
FIGURE A
FIGURE B
+
FIGURE D
+
FIGURE C
