INSPECTION AND MAINTENANCE
68PM2-01E

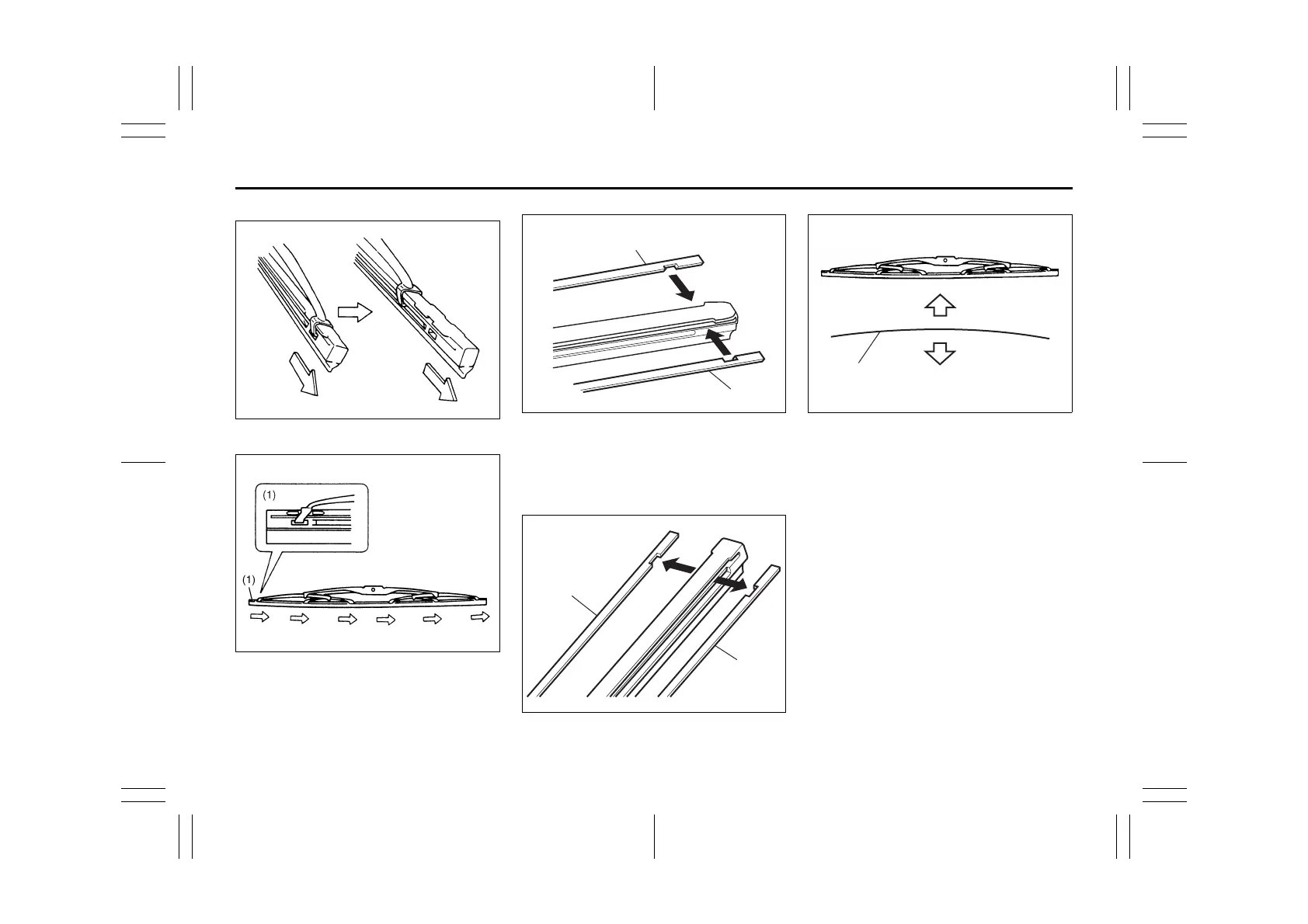

Removal
60A260
Installation
54G132
(1) Locked end
79MH0756
(3) Retainer
4) If the new blade is provided without the
two metal retainers (3), move them
from the old blade to the new one.
79MH0757
60MH072
(A) Up
(B) Down
NOTE:
When you install the metal retainers (3),
check that the direction of metal retainers
is as shown in the above illustrations.
5) Install the new blade in the reverse
order of removal, with the locked end
positioned toward the wiper arm.
Check that the blade is properly
retained by all the hooks. Lock the
blade end into place.
6) Reinstall wiper frame to arm, checking
that the lock lever is snapped securely
into the arm.
(3)
(A)
(B)
