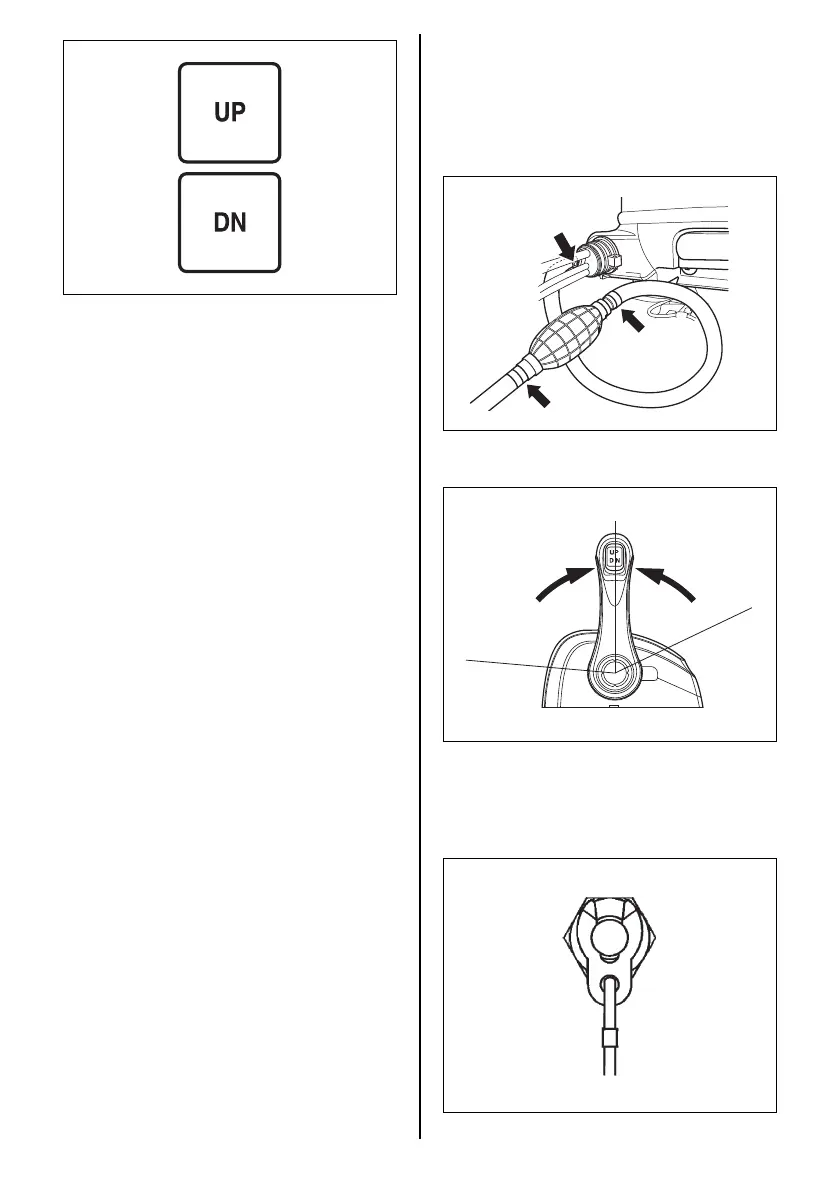

BEFORE ATTEMPTING TO START THE

ENGINE

1. Lower the motor into the water.

2. Make sure that the motor fuel hose and the

hose from the boat’s fuel tank are securely

attached and clamped.

3. Make sure the motor is in “NEUTRAL”.

4. Make sure the lock plate is in place and the

emergency stop switch cord is fastened

securely to your wrist or appropriate clothing

area such as your belt.

Default Chapter4
- Table of Contents4
Fuel and Oil6
- Gasoline6
- Engine Oil7
- Gear Oil7
Location of Safety Labels8
Location of Parts9
Motor Installation11
- Emission-Related Installation Instructions11
- Selection of Lower Unit Rotation11
Battery Installation12
- Battery Requirement12
- Battery Installation13
- Sub Battery Cable14
- Dual Battery Charging System14
- Use of Electrical Accessories14
Suzuki Keyless Start System (if Equipped with Keyless Start System)15
- Immobilizer System15
- Key-Fob15
- Key-Fob Battery Replacement17
- Setting And/Or Changing the Passcode19
- Passcode Confirmation22
Propeller Selection and Installation23
- Identification of Lower Unit Rotation and Propeller Type Selection23
- Propeller Selection24
- Propeller Installation25
Adjustments25
- Trim Angle Adjustment25
- Trim Tab Adjustment26
- Control Handle Adjustment27
- Idle Speed Adjustment27
- Motor Cover Fastening Adjustment28
Meter (Option) Multi-Function Gauge28
- Button Functions29
- Screen Selection29
- Sub Information Selection31
- Menu Information Selection33
- Alarm38
Caution System38
- Indicator Check39
- Over-Revolution Caution System39
- Oil Pressure Caution System40
- Cooling Water Caution System41
- Battery Voltage Caution System42
Electronic Throttle and Shift Control Caution System43
- Control Unit Communication Caution System43
- 2Nd Station Caution System43
- Throttle System Caution System44
- Shift Control Caution System44
- Gauge Communication Caution System45
- Station Setting Troll Mode Caution System45
- Troll Condition Caution System46
- Troll System Caution System46
Keyless Start System Caution System (if Equipped with Keyless Start System)46
- Key-Fob Caution System46
- Key-Fob Battery Caution System47
- Keyless Control Unit Caution System47
Diagnostic System48
Oil Change Reminder System49
- System Activation49
- Cancellation49
Engine Stalling Caution System50
Water in Fuel Alert System50
Operation of Tilting Systems51
- Power Trim and Tilt51
- Tilt Limiter Cam52
- Manual Tilting52
- Tilt Lever53
Inspection before Boating54
Break-In56
Operation57
- Main Switch (Option)57
- Control Panel (Option)58
- Before Attempting to Start the Engine61
- Starting the Engine62
- Emergency Start65
- Shifting and Speed Control69
- Stopping the Engine70
- Mooring72
- Operation in Shallow Water73
- Operating the Troll Mode73
- Operation in Salt Water76
- Operation in Freezing Weather77
Motor Removal and Transporting77
- Motor Removal77
- Motor Transporting77
Trailering79
Inspection and Maintenance80
- Maintenance Schedule80
- Tool Kit81
- Spark Plug82
- Breather and Fuel Line84
- Engine Oil85
- Gear Oil86
- Low Pressure Fuel Filter87
- Lubrication89
- Corrosion Prevention91
  - Anodes91
  - Bonding Wires92
- Battery92
- Engine Oil Filter93
- Balancer Chain93
Flushing the Water Passages93
Submerged Motor96
Storage Procedure97
- Motor Storage97
- Battery Storage98
After Storage98
General Information98
- WARRANTIES (for U.S.A)98
- Identification Number Location98
Emission Control Information99
Troubleshooting99
Specifications103
Flowchart of Oil Change Reminder System103
