Suzuki DF200AP User Manual

95
ENGINE NOT RUNNING – Vertical position –

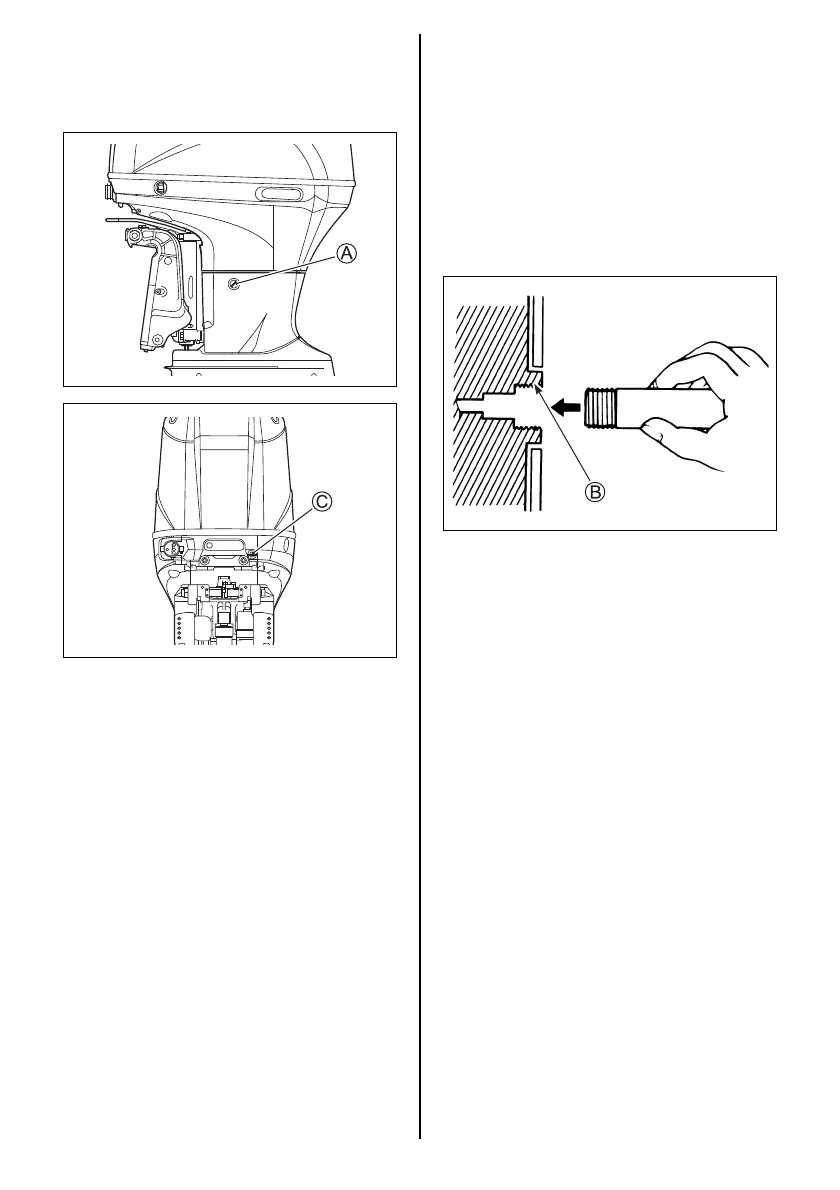

1. Make sure that the motor is stopped.
2. Remove one of the plug A or C from the
two flushing ports.
3. Install garden hose directly or by using a
hose connector matched to flushing point
thread B.
Thread B: 0.75 – 11.5 NHR (American stan-
dard hose coupling threads for garden hose
applications.)
NOTE:
The hose connector (flushing attachment)
matched to the flushing point thread B is
included in the crate parts.
4. Turn on the water to obtain a good water
flow. Flush the engine for about five minutes.
5. Turn off the water.
6. Remove the hose and connector (if used)
then reinstall the plug into the flushing port.
7. Leave the motor in a vertical position until
the engine is drained completely.
ENGINE NOT RUNNING
– Full tilt up position –
1. Raise the engine to the full tilt up position.
2. Follow the “ENGINE NOT RUNNING – Verti-
cal position” instructions.
DO NOT RUN ENGINE IN THE FULL TILT
UP POSITION.
3. Lower the motor to a vertical position until
the engine is drained completely.

Suzuki DF200AP Specifications

General

Displacement	2, 867 cc
Bore x Stroke	97 mm x 97 mm
Starting System	Electric
Steering	Remote
Trim Method	Power Trim and Tilt
Number of Cylinders	4
Maximum Output (kW)	147 kW
Exhaust	Through Prop Hub Exhaust
Engine Type	DOHC 16-Valve
Maximum Output	200 PS
Fuel Delivery System	Sequential Multi Point Fuel Injection
Full Throttle Operating Range	5500 - 6100 rpm
Alternator Output	44 A
Shaft Length	L: 508 mm
