20
ADJUSTMENT

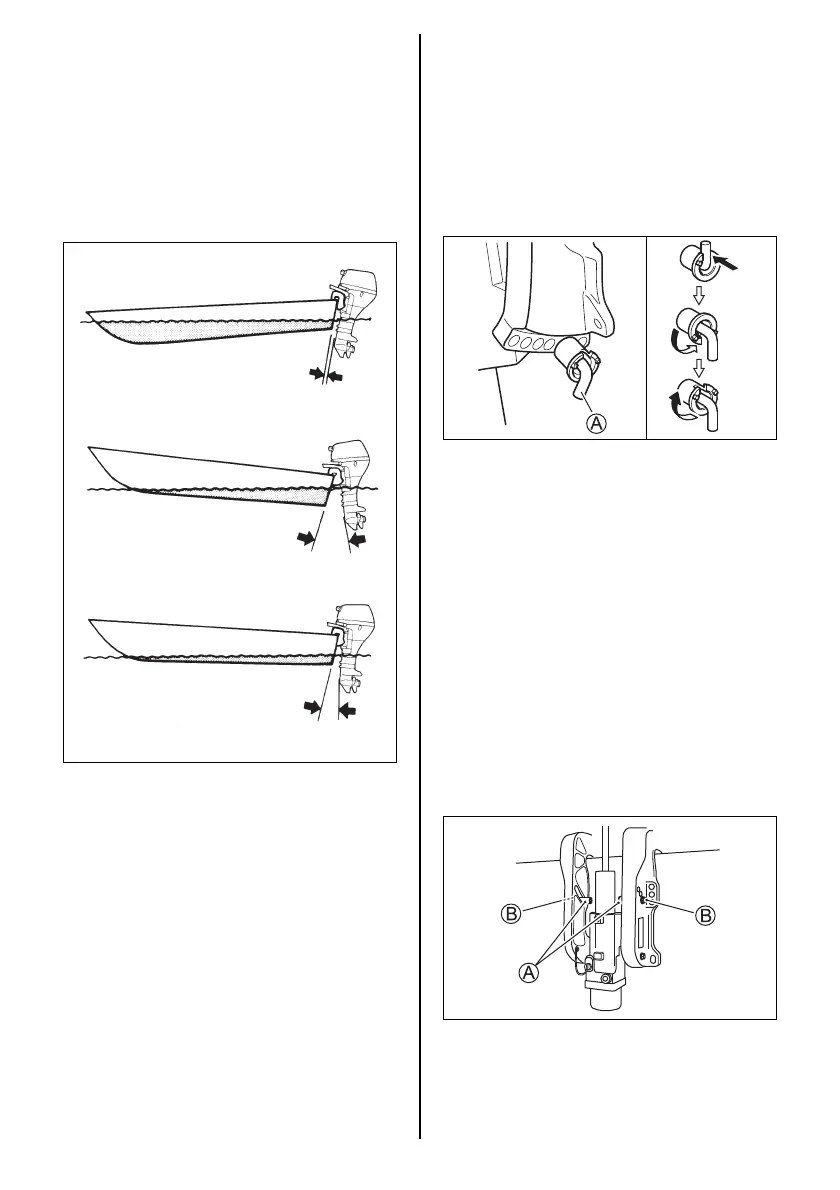

TRIM ANGLE ADJUSTMENT
To help maintain steering stability and good
performance, always maintain the proper trim
angle as shown in the illustration. The appropri-
ate trim angle varies depending on the combi-
nation of the boat, engine, and propeller, as well
as operating conditions.
•
Trim angle too large (Boat tends to “porpoise”)
• Trim angle too small (Boat tends to “plow”)
• Proper trim angle
DF9.9B/9.9BR/15A/15AR/20A/20AR
MODEL
Make a test run in the boat to determine if the
trim angle needs to be adjusted.
To adjust the trim angle:
1. Hold the motor in the fully tilted up position.
(Refer to TILT UP LOCK ARM section.)
2. Reposition the tilt pin A in the desired holes.
3. Lower the motor back down.
To lower the bow, move the pin towards the
boat. To raise the bow, move the pin away from
the boat.
DF9.9BT/9.9BTH/15ATH/20AT/20ATH
MODEL
Make a test run in the boat to determine if the
trim angle needs to be adjusted.
To adjust the trim angle:
1. Lock the motor in the fully tilted up position.
(Refer to TILT UP LOCK KNOB section.)
2. Loosen the bolts B securing tilt pin A.
Reposition the tilt pin A in the desired holes,
then tighten the bolts securely.
To Next Page
