6-28

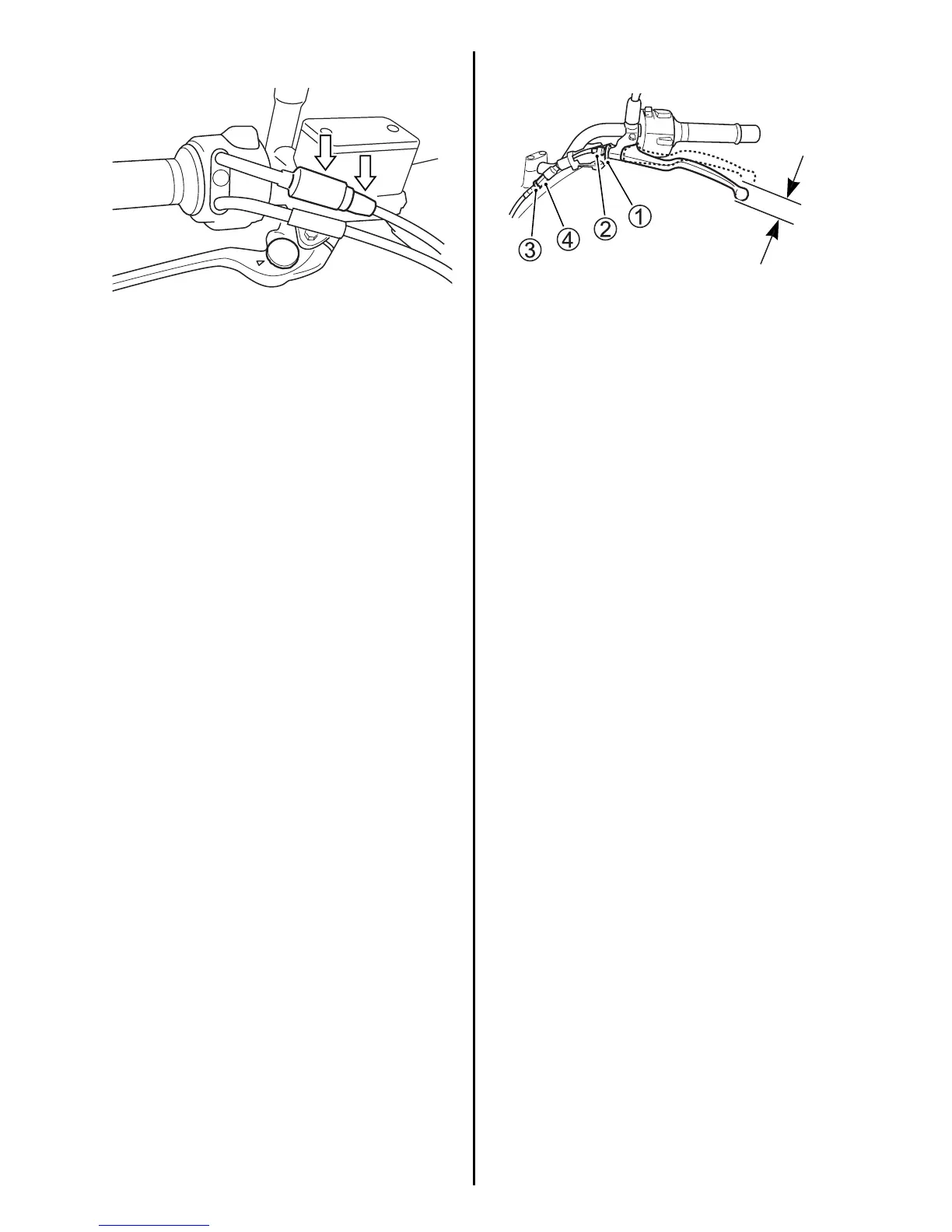

THROTTLE CABLE BOOTS
The throttle cable has boots. Check
that the boots are fit securely. Do not
apply water directly to the boots when
washing. Wipe off dirt from the boots
with a wet cloth when the boots are
dirty.
CLUTCH
10 – 15 mm
(0.4 – 0.6 in)
At each maintenance interval, adjust
the clutch cable play with the clutch
cable adjuster. The cable play should
be 10 – 15 mm (0.4 – 0.6 in) as mea-
sured at the clutch lever end before
the clutch begins to disengage. If you
find the play of clutch incorrect, adjust
it in the following way:
1. Loosen the lock nut 1.
2. Turn the clutch lever adjuster 2
clockwise as far as it will go.
3. Loosen the cable adjuster lock nut
3, and turn the cable adjuster 4
to obtain approximately 10 – 15
mm (0.4 – 0.6 in) of free play at
the clutch lever end as indicated.
4. Minor adjustment can now be
made with the adjuster 2.
5. Tighten the lock nuts, 1 and 3,
after finishing adjustment.
NOTE: Any maintenance of the clutch
other than the clutch cable play
should be performed by your Suzuki
dealer.
