General Information: 0A-3

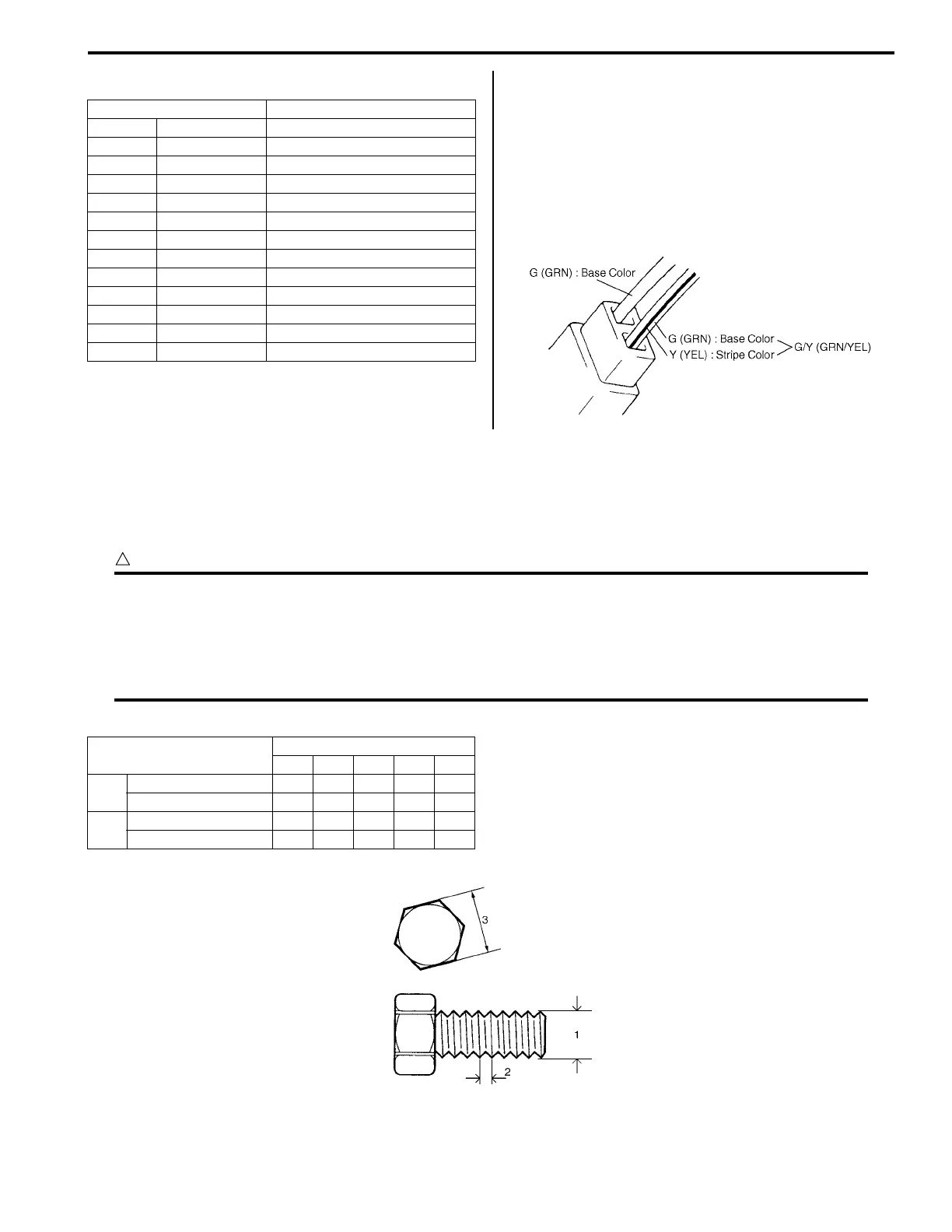

Wire Color Symbols
S6JB0A0101003
There are two kinds of colored wire used in this vehicle.
One is single-colored wire and the other is dual-colored
(striped) wire. As the color symbol, the single-colored
wire uses only one, three or five alphabets (i.e. “G” or
“GRN”); the dual-colored wire uses two color symbols
combination (i.e. “G/Y” or “GRN/YEL”). The first symbol
represents the base color of the wire (“G” or “GRN” in
the figure) and the second symbol represents the color
of the stripe (“Y” or “YEL” in the figure).
Fastener Information
S6JB0A0101004
Metric Fasteners
Most of the fasteners used for this vehicle are JIS-defined and ISO-defined metric fasteners. When replacing any
fasteners, it is most important that replacement fasteners be the correct diameter, thread pitch and strength.
CAUTION
!
Even when the nominal diameter (1) of thread is the same, the thread pitch (2) or the width across flats
(3) may vary between ISO and JIS. Refer to JIS-TO-ISO Main Fasteners Comparison Table below for the
difference.
Installing a mismatched bolt or nut will cause damage to the thread.
Before installing, check the thread pitch for correct matching and then tighten it by hand temporarily. If
it is tight, recheck the thread pitch.
JIS-TO-ISO Main Fasteners Comparison Table
Symbol Wire Color
BBLK Black
Bl BLU Blue
Br BRN Brown
G GRN Green
Gr GRY Gray
Lbl LT BLU Light blue
Lg LT GRN Light green
O, Or ORN Orange
RRED Red
W WHT White
Y YEL Yellow
PPNK Pink
V PPL Violet (Purple)
I1SQ01010037-01
Nominal diameter
M6 M8 M10 M12 M14
JIS
Thread pitch 1.0 1.25 1.25 1.25 1.5
Width across flats 10 12 14 17 19
ISO
Thread pitch 1.0 1.25 1.5 1.5 1.5
Width across flats 10 13 16 18 21
I4RH0A010005-01
