ELECTRI C AL SYST EM 5 -24

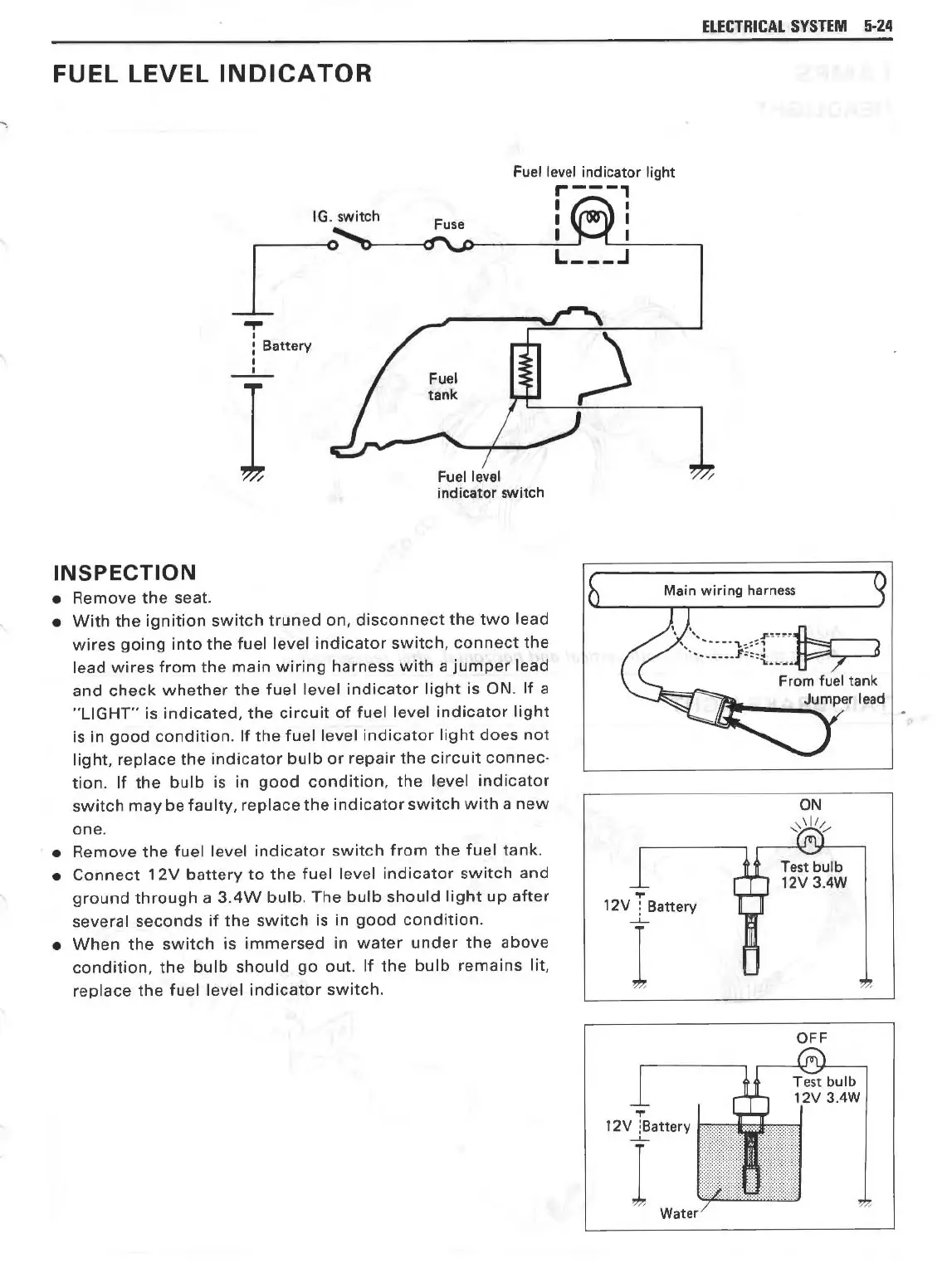

FUEL LEVEL I ND I CATOR
Fuel level indicator light
,----,
IG. switch
I I
I I
_r
~ - --n-, I I
' "---'>--------' ------
L _ __ J
INSPECTION
• Remove the seat .
~
I
: Battery
'
-·-
I Fuel level
indicator switch
• With the ignition switch truned on, disconnect the two lead
wires going into the fuel level indicator switch, connect the
lead wires from the main wiring harness with a jumper lead
and check whether the fuel level indicator light is ON . If a
"LIGHT" is indicated, the circuit of fuel level indicator light
is in good condition . If the fuel level indicator light does not
light , replace the indicator bulb or repair the circuit connec-
tion. If the bulb is in good condition, the level indicator
switch may be faulty, replace the indicator switch with a new
one .
•
Remove the fuel level indicator switch from the fuel tank.
• Connect 12V battery to the fuel level indicator switch and
ground through a 3.4W bulb . The bulb should light up after
several seconds if the switch is in good condition .
•
When the switch is immersed in water under the above
condition, the bulb should go out. If the bulb remains lit ,
replace the fuel level indicator switch .
/
Main wiring harness
T
12V : Battery
_L._
I
T
12V :Battery
_L._
I
Test bulb
12V 3.4W
OFF

Suzuki GSXR-1100 1990 Specifications

General

Displacement	1052 cc
Fuel System	Mikuni BST36SS carburetors
Transmission	5-speed
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	120/70-17
Rear Tire	170/60-17
Engine Type	4-stroke, 4-cylinder, DOHC
Ignition	Electronic ignition (Transistorized)
Rear Suspension	coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Ground Clearance	130 mm
Fuel Capacity	21.0 liters (5.5 US gallons)
