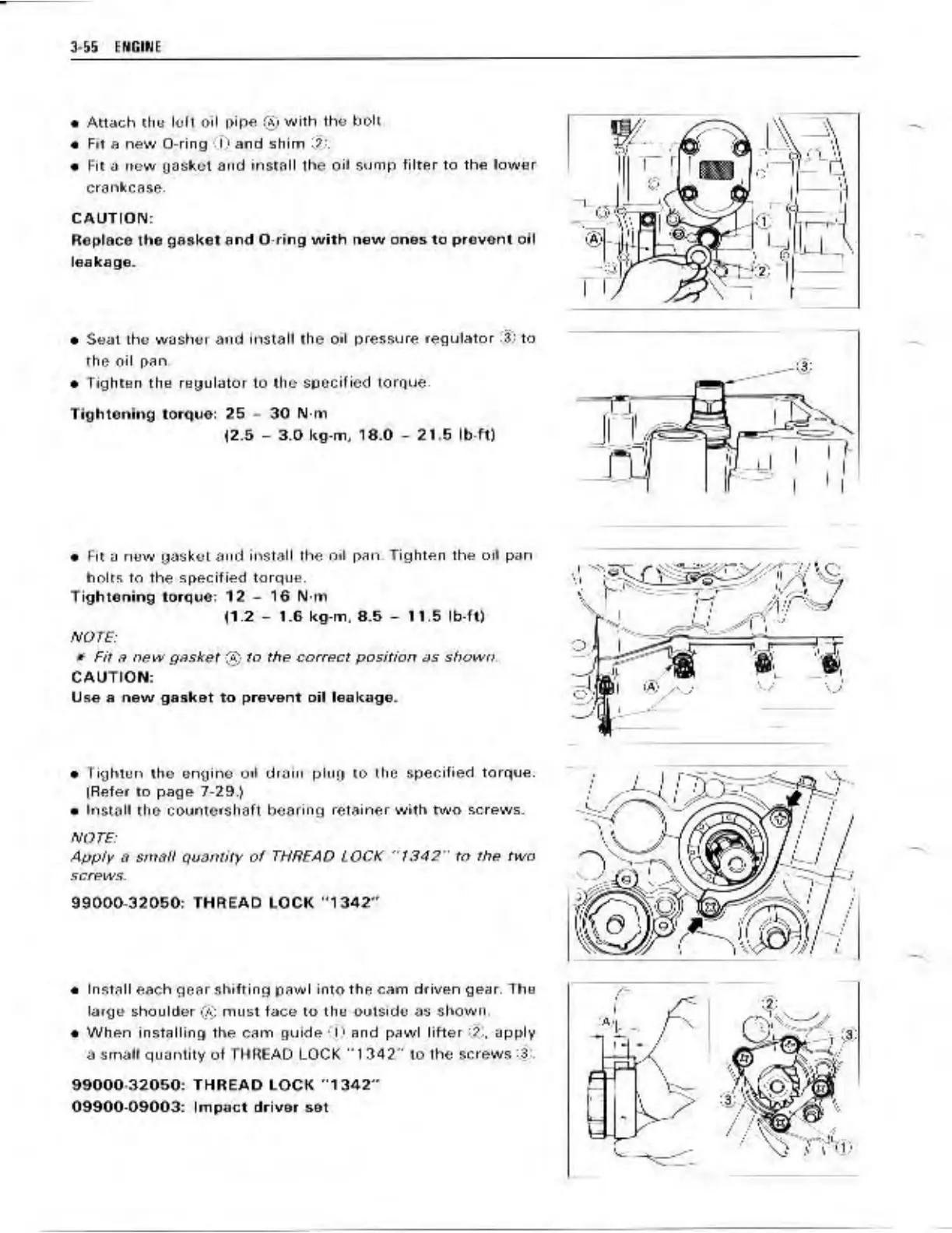

3- SS E NGIN E
• Attach thu 1o r1 o il pipe ® with th e boll
• Fit -, new 0 - rin g {i) and s him 'J.,: .
• Fit a new gas k. et and in sta ll 1he oil s urnp filt er to th e l ow er
crankcase.
CAUTION:
Replace the gasket and O• ring with new ones 10 prev&nl oil
leakage .
• Sea t th e w;:, s ho r a nd ins ta ll 1h e oi l press ur e reg ulator ;3; to
1he <i ii pan
• T i ght en the reg ulato r to th e s,:,oc irie <I torQo (i.
Tightening torque : 25 - 30 N•ni
12.5 -
3.0 kg•m , 18 .0 - 21,5 lb - ft)
• h t .i nuw !)M k. Cl t md i l'1Stl' II lh e 0,1 p;in . Tig ht f! n th e cu l pan
hoh~ to th e sp ec ifi ed tor qu e.
T
ightening torQu O: 12 - 16 N•m
11 .2 - 1.6 kg•m, 8.5 - 11.5 lb-ft)
NO TE:
* F il .~ new g1 u.ket •~ · to rh e co rr ect posi ti on iJ!t ' shown .
CAU T ION :
Use a new gasket to prevent oil leakage.
• Ti ghten the e ngin e 011 d1 ai 11 p lu f.1 to the s pecifi ed to r11uP. .
(RP.fer to pa ge 7-29 .)
• lo sw n tho covn tc,s h aft boa dn g ret,;1 in er with tw o screws .
NOTE:
Apply a sma ll Qu aml ty of THR E AD lO CK " 134 2 " to the tw o
scre ws.
99000 - 320 50: THREAD LOCK " 1342 "
• ln $t~II eac h ~~ear shi fting pAw l in to the c am d,iven gear. The
l arge shoulder @ mu st face to th l! outs ,d t as s hown .
• WhP.n in s t~llin g th e Cl:I IYI g ukl e · i) a nd paw l li fter ~ Z: . .ipplv
a ~m all qu~ ntity of Tl-tRE AD LOCK " 1 342. " to lh<: sc r ews :.r.
99000 - 32050 : THREAD LOCK "1342"
09900-09003: lmp uct driv er sot

Suzuki GSXR-1100 1990 Specifications

General

Displacement	1052 cc
Fuel System	Mikuni BST36SS carburetors
Transmission	5-speed
Front Suspension	Telescopic, coil spring, oil damped
Front Tire	120/70-17
Rear Tire	170/60-17
Engine Type	4-stroke, 4-cylinder, DOHC
Ignition	Electronic ignition (Transistorized)
Rear Suspension	coil spring, oil damped
Front Brakes	Dual disc
Rear Brakes	Single disc
Ground Clearance	130 mm
Fuel Capacity	21.0 liters (5.5 US gallons)
