6-6

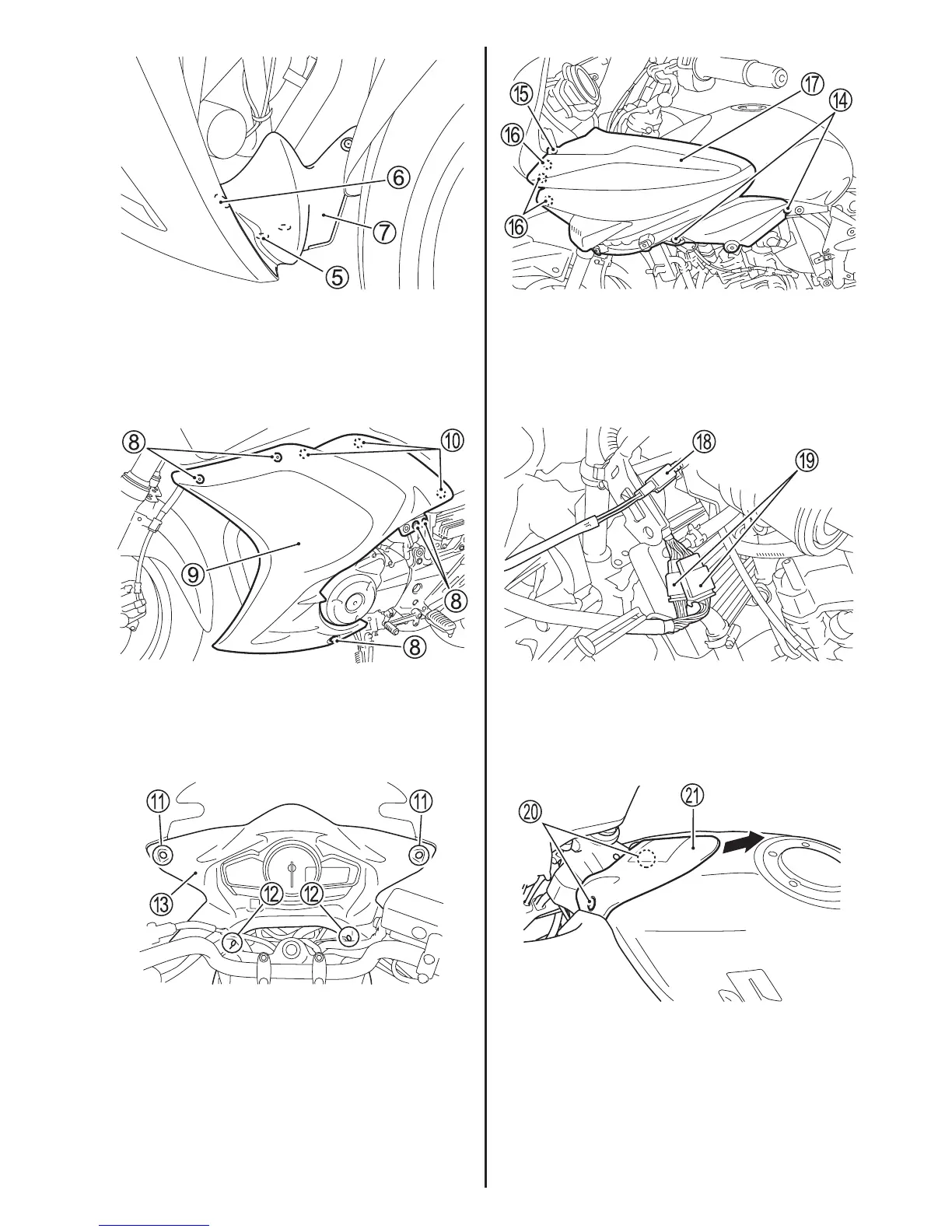

3. Remove the left side fastener 5
and screw 6 of center cowling 7.
Then detach the center cowling 7
from the left under cowling.
4. Remove the five screws 8.
Then remove the under cowling 9
by unhooking the hooks 0.
5. Remove the two screws A and
fasteners B. Then remove the
meter cover C.
6. Remove the two screws D and
fastener E.
Then unhooking the hooks F and
remove the side cowling G.
7. Release the coupler lock and dis-
connect the couplers H and I
(left side only).
8. Remove the two screws J. Then
remove the fuel tank center cover
K.
To Next Page
